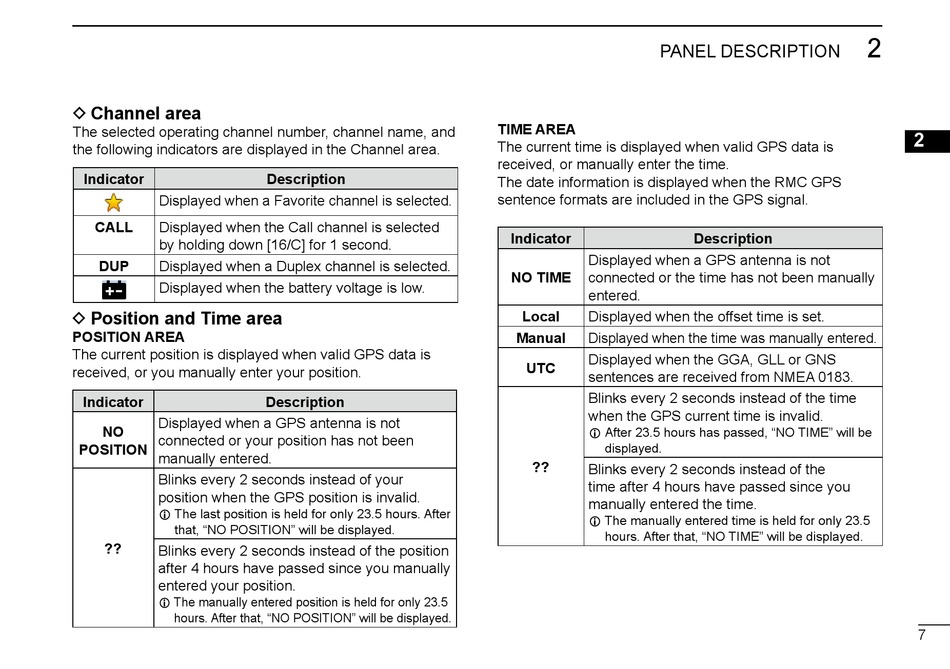

D Channel area
The selected operating channel number, channel name, and
the following indicators are displayed in the Channel area.
Indicator
Displayed when a Favorite channel is selected.
CALL
Displayed when the Call channel is selected
by holding down [16/C] for 1 second.
DUP
Displayed when a Duplex channel is selected.
Displayed when the battery voltage is low.
D Position and Time area
POSITION AREA
The current position is displayed when valid GPS data is
received, or you manually enter your position.
Indicator
Displayed when a GPS antenna is not
NO
connected or your position has not been
POSITION
manually entered.
Blinks every 2 seconds instead of your
position when the GPS position is invalid.
L The last position is held for only 23.5 hours. After
that, "NO POSITION" will be displayed.
??
Blinks every 2 seconds instead of the position
after 4 hours have passed since you manually
entered your position.
L The manually entered position is held for only 23.5
hours. After that, "NO POSITION" will be displayed.
Description
Description
PANEL DESCRIPTION
TIME AREA
The current time is displayed when valid GPS data is
received, or manually enter the time.
The date information is displayed when the RMC GPS
sentence formats are included in the GPS signal.
Indicator
Displayed when a GPS antenna is not
NO TIME connected or the time has not been manually
entered.
Local Displayed when the offset time is set.
Manual Displayed when the time was manually entered.
Displayed when the GGA, GLL or GNS
UTC
sentences are received from NMEA 0183.
Blinks every 2 seconds instead of the time
when the GPS current time is invalid.
L After 23.5 hours has passed, "NO TIME" will be
displayed.
??
Blinks every 2 seconds instead of the
time after 4 hours have passed since you
manually entered the time.
L The manually entered time is held for only 23.5
hours. After that, "NO TIME" will be displayed.
