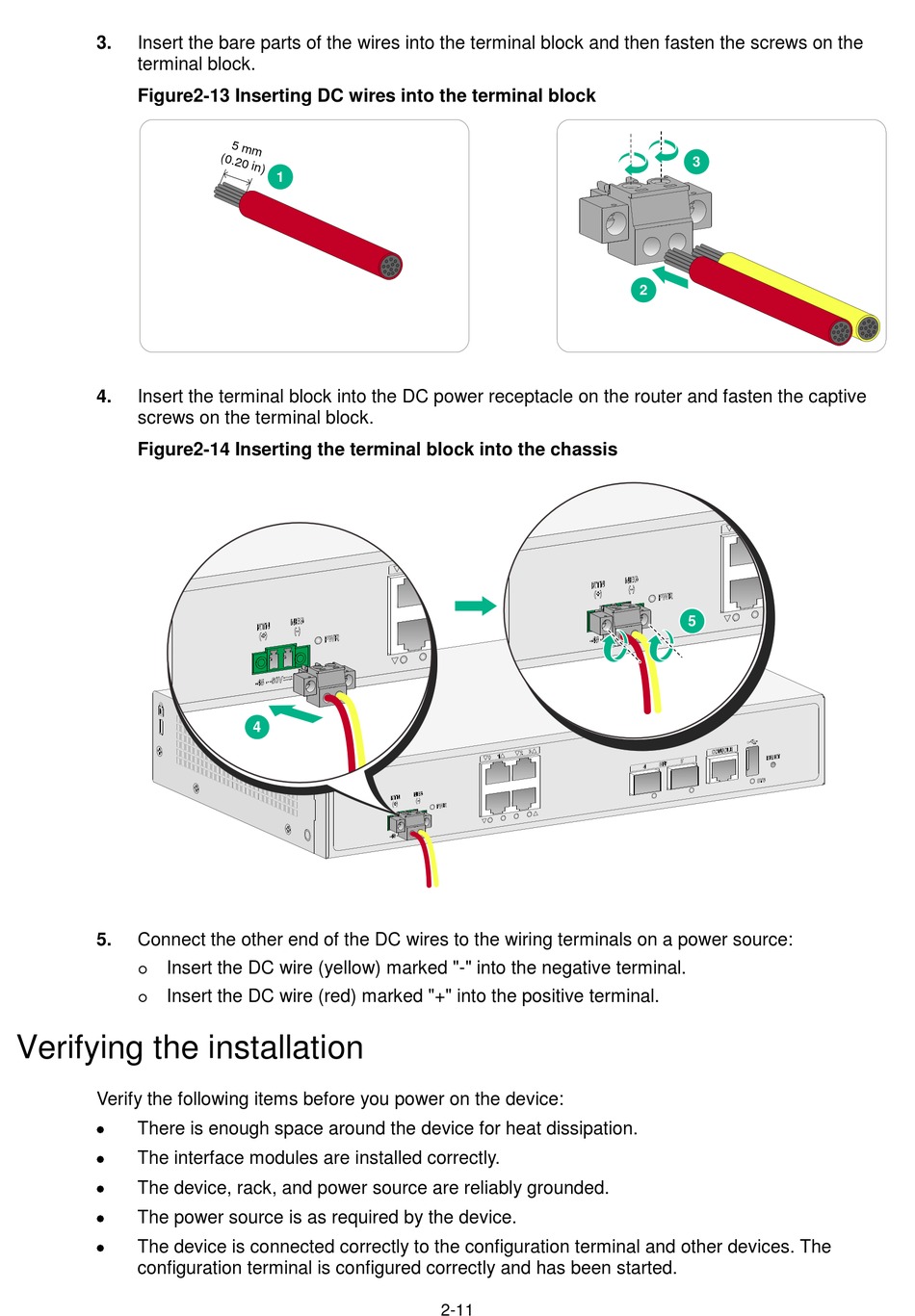

3.
Insert the bare parts of the wires into the terminal block and then fasten the screws on the
terminal block.
Figure2-13 Inserting DC wires into the terminal block
4.
Insert the terminal block into the DC power receptacle on the router and fasten the captive
screws on the terminal block.
Figure2-14 Inserting the terminal block into the chassis
5.
Connect the other end of the DC wires to the wiring terminals on a power source:
Insert the DC wire (yellow) marked "-" into the negative terminal.
Insert the DC wire (red) marked "+" into the positive terminal.
Verifying the installation
Verify the following items before you power on the device:
•
There is enough space around the device for heat dissipation.
•
The interface modules are installed correctly.
•
The device, rack, and power source are reliably grounded.
•
The power source is as required by the device.
•
The device is connected correctly to the configuration terminal and other devices. The
configuration terminal is configured correctly and has been started.
1
4
2-11
3
2
5
