Summary of Contents for H3C ICG2000

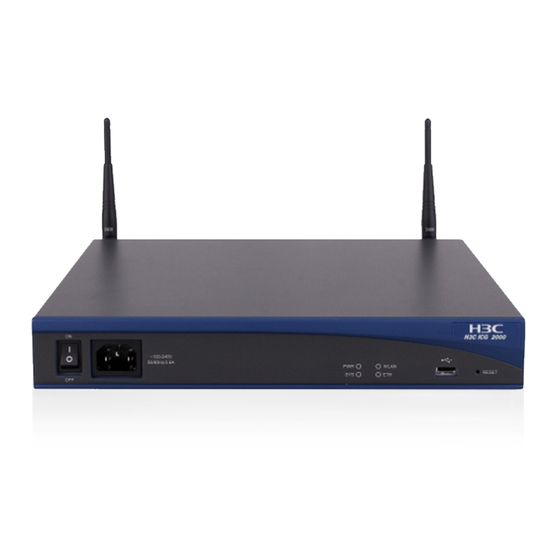

- Page 1 H3C ICG2000 Information Communication Gateways Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W100-20220817...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This document describes the procedure for installing H3C ICG2000 information communication gateways. It contains the following sections: preparing for installation, installing the device, replacement procedure, and troubleshooting. This preface includes the following topics about the documentation: • Audience. •...
- Page 4 Convention Description Multi-level menus are separated by angle brackets. For example, File > Create > > Folder. Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software.
- Page 5 It is normal that the port numbers, sample output, screenshots, and other information in the examples differ from what you have on your device. Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Contents 1 Preparing for installation ·········································································· 1-1 Safety recommendations ································································································································ 1-1 Safety symbols ········································································································································ 1-1 General safety recommendations ··········································································································· 1-1 Electricity safety ······································································································································ 1-1 Examining the installation site ························································································································· 1-1 Temperature and humidity ······················································································································ 1-2 Cleanliness ·············································································································································· 1-2 Cooling system ········································································································································ 1-2 ESD prevention ·······································································································································... -
Page 7: Preparing For Installation
Preparing for installation This document describes the installation procedure for H3C ICG2000 models. Table1-1 H3C ICG2000 models Mark (printed on the front panel) Product code RT-ICG2000D RT-ICG2000D-EI H3C ICG2000 Series RT-ICG2000H RT-ICG2000H-DC Safety recommendations Safety symbols When reading this document, pay attention to the following symbols: WARNING means an alert that calls attention to important information that if not understood or followed can result in personal injury. -
Page 8: Temperature And Humidity
Temperature and humidity Maintain the temperature and humidity in the equipment room as described in Table1-2. • High temperature can accelerate the aging of insulation materials and significantly lower the reliability and lifespan of the device. • Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical property change of materials, and metal corrosion. -
Page 9: Esd Prevention
• The installation site has a good ventilation system. Figure1-1 Airflow through the ICG2000D-EI chassis ESD prevention Preventing electrostatic discharge To prevent electrostatic discharge (ESD), follow these guidelines: • Make sure the device and the floor are reliably grounded. • Take dust-proof measures for the equipment room. -
Page 10: Emi Prevention
EMI prevention All electromagnetic interference (EMI) sources, from outside or inside of the device and application system, adversely affect the device in the following ways: • A conduction pattern of capacitance coupling. • Inductance coupling. • Electromagnetic wave radiation. • Common impedance (including the grounding system) coupling. -
Page 11: Installation Tools And Accessories
Installation tools and accessories Figure1-2 Installation tools Flathead screwdriver Phillips screwdriver Needle-nose pliers Wire stripper Network cable tester ESD wrist strap Diagnoal pliers Heat gun Multimeter Marker Figure1-3 Installation accessories M6 rack screw (provided ICG2000D/2000D-EI ICG2000H/2000H-DC only with the M4 screw mounting brackets mounting brackets ICG2000D/2000D-EI, user... - Page 12 Item Requirements tabletop over three days) • The device and floor are reliably grounded. • Dust-proof measures are taken in the equipment room. • Humidity and temperature are maintained at acceptable levels. ESD prevention • An ESD wrist strap and ESD garment are available. •...
-
Page 13: Installing The Device
• Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence. - Page 14 Figure2-1 Installation flowchart Start Workbench-mounting Rack-mounting Determine the installation position Mount the device in a rack Mount the device on a workbench Ground the device Install interface modules Connect interface cables Connect the device to the configuration terminal Connect the power cord Verify the installation Power on the device Troubleshoot the device...
-
Page 15: Installing The Device
The ICG2000H and ICG2000H-DC are small and do not have special requirements for the rack depth. For information about the dimensions of the devices, see "Chassis view and technical specifications" in H3C ICG2000 Information Communication Gateways Hardware Information and Specifications. - Page 16 Figure2-3 ICG2000D/2000D-EI device dimensions Front mounting brackets 60mm (2.36 in) E1 cable Power cord 300mm (11.81 in) 60mm (2.36 in) Table2-1 Device dimensions and rack requirements Device model Chassis dimensions Rack requirements • Height—44.2 mm (1.74 in)/1 RU • A minimum of 0.6 m (1.97 ft) in •...
- Page 17 a. Insert one ear of a cage nut into the marked installation hole. b. Use a flathead screwdriver to push another ear into the same hole. Figure2-4 Installing cage nuts Attach mounting brackets to the two sides of the device. Figure2-5 Attaching mounting brackets to the device Use M6 screws to attach the mounting brackets on the device to the front rack posts.
-
Page 18: Grounding The Device
Grounding the device CAUTION: • Correctly connecting the grounding cable is crucial to lightning protection and EMI protection. When you install and use the device, first ground the device reliably. • Ensure a minimum resistance of 5 ohms between the device and the ground. A grounding cable is provided with the device. -
Page 19: Installing Sics
The fixed ports on the device are MDI/MDIX autosensing. You can use straight-through or crossover network cables to connect the ports. Examine the port LED on the device to verify the connectivity. For more information about the LEDs, see "LEDs" in H3C ICG2000 Information Communication Gateways Hardware Information and Specifications. - Page 20 Figure2-9 Connecting an Ethernet cable for a copper Ethernet port Connecting optical fibers for a fiber Ethernet port WARNING! Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare into beams or view directly with optical instruments when the device is operating. CAUTION: •...
-
Page 21: Logging In From The Console Port And Setting Terminal Parameters
Figure2-10 Connecting optical fibers for an Ethernet fiber port Logging in from the console port and setting terminal parameters To access the device, you can only use a console cable to connect the console port on the device to a configuration terminal. Connecting the console cable CAUTION: The serial ports on PCs do not support hot swapping. -
Page 22: Connecting The Power Cord
Setting configuration terminal parameters To configure and manage the device through the console port, you must run a terminal emulator program, TeraTermPro or PuTTY, on your PC. You can use the emulator program to connect a network device, a Telnet site, or an SSH site. For more information about the terminal emulator programs, see the user guides for these programs. -
Page 23: Verifying The Installation
Insert the bare parts of the wires into the terminal block and then fasten the screws on the terminal block. Figure2-13 Inserting DC wires into the terminal block Insert the terminal block into the DC power receptacle on the router and fasten the captive screws on the terminal block. -
Page 24: Starting The Device
Press Ctrl+D to access BASIC-BOOTWARE MENU... Booting Normal Extended BootWare The Extended BootWare is self-decompressing..Done. **************************************************************************** H3C ICG2000D BootWare, Version 1.02 **************************************************************************** Copyright (c) 2004-2017 New H3C Technologies Co., Ltd. Compiled Date : Sep 18 2017 CPU ID : 0xc CPU L1 Cache... - Page 25 When the device starts up at the first time, you are required to configure basic settings for it. For information about configuring basic setting for the device, see H3C ICG Information Communication Gateways Configuration Guides (Comware 7) and H3C ICG Information Communication Gateways Command References (Comware 7).
-
Page 26: Replacement Procedure
Replacement procedure Replacing a SIC Loosen the captive screws on the SIC. Then pull the SIC slowly out of the slot along the guide rails. Figure3-1 Removing a SIC Install a new SIC in the slot. For information about the installation procedure, see "Installing SICs."... -
Page 27: Troubleshooting
• Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence. -
Page 28: Garbled Display On The Configuration Terminal
Verify that the console cable is in good condition. If the issue persists, contact H3C Support. Garbled display on the configuration terminal Symptom The configuration terminal has garbled display when the device is powered on. Solution To resolve the issue: Verify that the Data bits field is set to 8 for the terminal. -
Page 29: Restoring The Factory Settings
Restoring the factory settings Scenario 1 Symptom You want to access the device that you are to replace with a new one, but you cannot remember the password. Solution If you are not to save the configuration, press the reset button for over four seconds to restore the factory settings.
