Replacement procedure

Replacing a SIC

1. Loosen the captive screws on the SIC. Then pull the SIC slowly out of the slot along the guide
rails.

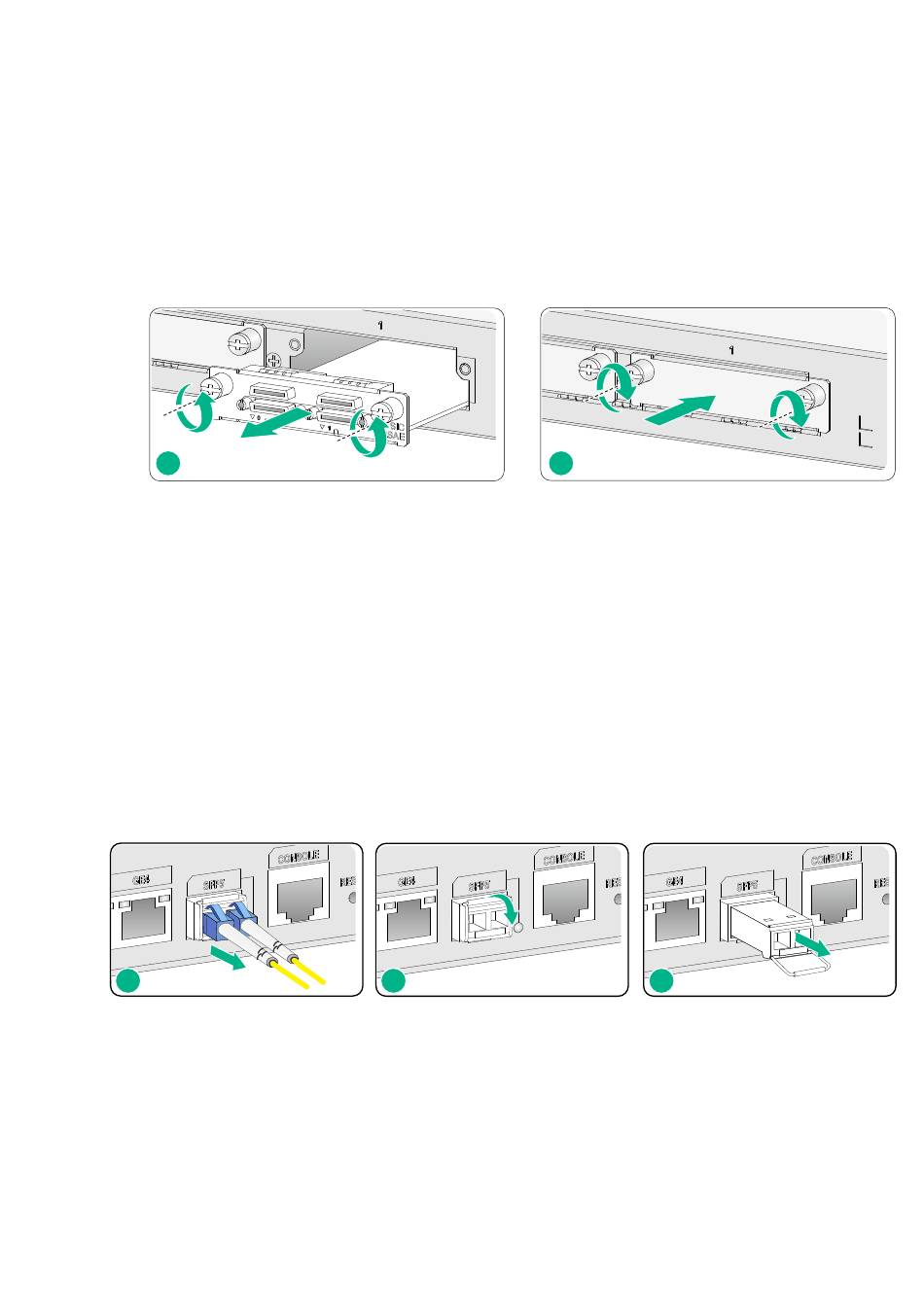

Figure3-1 Removing a SIC
1
2. Install a new SIC in the slot. For information about the installation procedure, see
SICs."
If you are not to install a new SIC, install a filler panel in the slot and fasten the screws on the
filler panel.

Replacing a transceiver module

1. Remove the optical fibers from the transceiver module.
2. Release and pull down the bail latch on the transceiver module.
3. Hold the bail latch to pull the transceiver module straight out.
Keep the removed transceiver module secure.
Figure3-2 Removing a transceiver module
1
2
2
