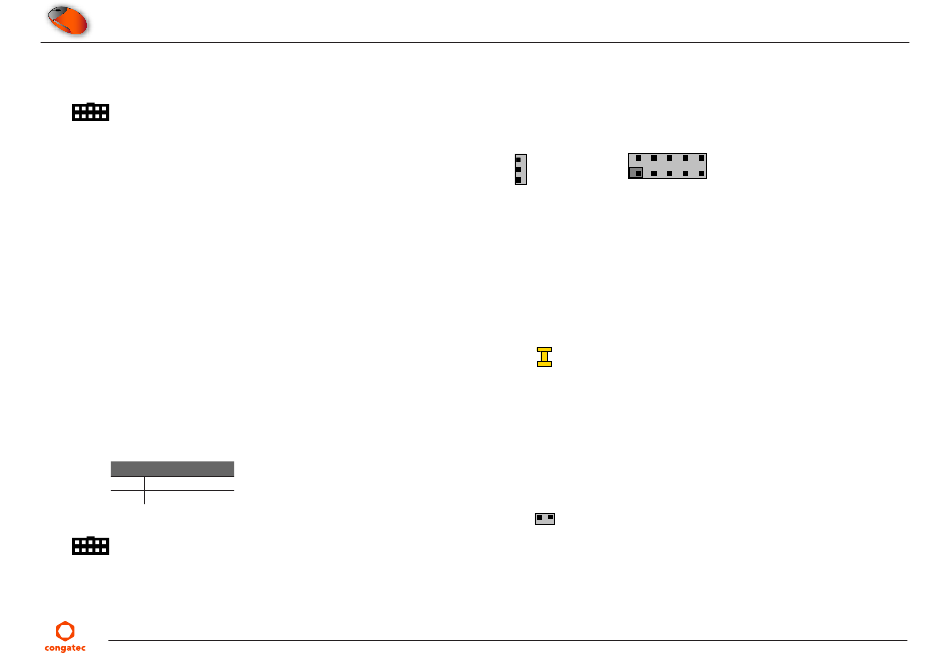

6.9

Internal Use Only Connectors

Connectors X1, X2, X5 and X45 are designated for internal use only and therefore are not available.
Connector Type
X1, X2: 3 pin 2.54mm grid Jumper.
X5: 10 pin 2 row 2.54mm grid Jumpers.
X45: Not populated.
6.10

Ground Probes

The QEVAL 2.0 provides 6 ground probes (M16-M19, M26, M33) that are connected to Ground Potential. These test points make it easier to
connect oscilloscope probes and/or multimeter lines to GND when performing measurements on the Qseven
6.11

External System Wake Event

The external system wake event (WAKE#) signal can be found on the feature connector X19. If the Qseven
WAKE# signal, then you can bridge connector X3 pins with a jumper to connect the Qseven
Pin Signal
WAKE#
1
PCIE_WAKE#
2
Connector Type
X3: 2.54mm grid Jumper.
Copyright © 2014 congatec AG
Internal Use Internal Use
(X1, X2) (X5)
2 4 6
3
2
1 3 5
1
Ground Probe
M16-M19, M26, M33
module's PCIE_WAKE#.
®
Wake Event
(X3)
1 2
QEV2m11
8 10
7 9
module.
®
module does not support the
®
45/49
