Note
Before you insert a module that does not support LPC (module with GPIO support such as conga-QMX6), you must set switch 1 and switch 4
of DIP switch SW2 to "off". This setting turns off the onboard super I/O device.
Connector Type
CN11: 14 pin, 2 row 2.54mm grid female.
5.2.7

Universal Serial Bus (USB)

The QEVAL 2.0 provides 8 USB host ports (connectors CN7, X35 and X34) and one USB OTG port (connector X53). The USB host ports 0
and 1 (X34) support USB 3.0 and are shared with USB 4-7 (X35) according to Qseven
module to determine if USB3.0 or USB 2.0 is supported). The Superspeed signals of USB host port 0 are shared with ports 6 and 7 (X35) while
the Superspeed signals of USB host port 1 are shared with port 4 and 5 (X35).

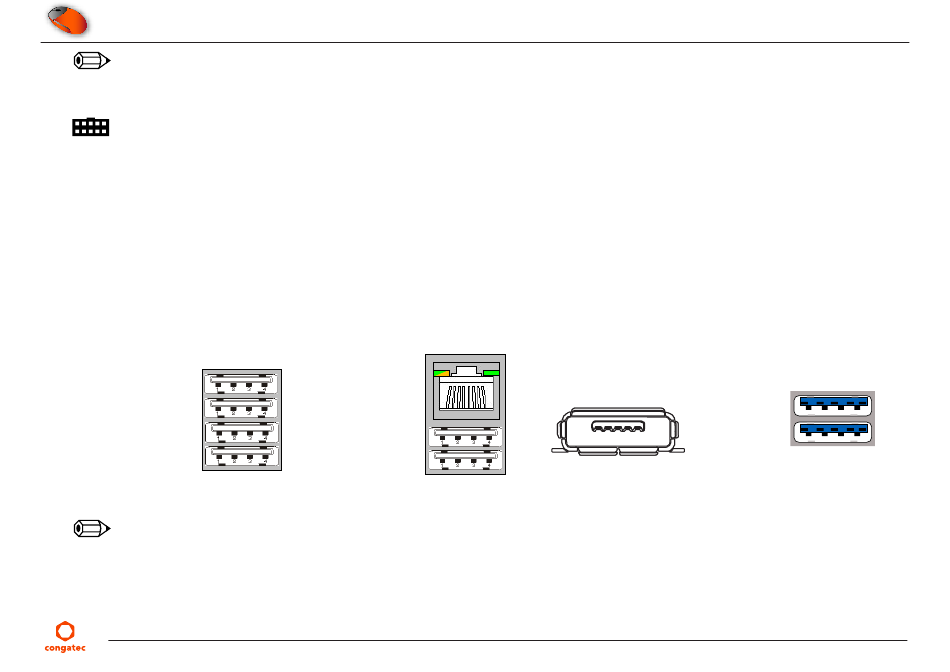

USB Connectors
X35
USB Port 7
USB Port 6
USB Port 5
USB Port 4
(front view)
Note
USB ports 2 and 3 support wake-on-USB. The support of USB port 3 wake-on-USB depends on the setting of DIP switch 9.3.
Copyright © 2014 congatec AG
CN7
8 7 6 5 4 3 2 1
USB Port 2
USB Port 3
(front view)
QEV2m11
2.0 specification (Check the datasheet of the attached
®
USB OTG
(X53)
USB 2.0 Port 1
1 2 3 4 5
USB 3.0 Port 1
USB 2.0 Port 0
USB 3.0 Port 0
Micro-AB
X34
9 8 7 6 5
1 2 3 4
9 8 7 6 5
1 2 3 4
(front view)
