Ethernet 10/100/1000

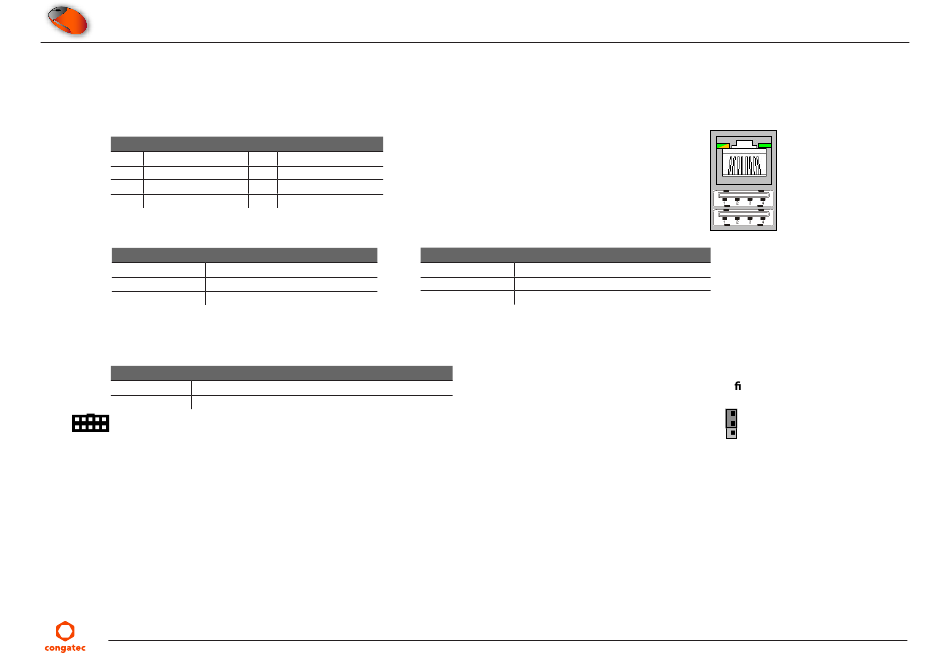

The QEVAL 2.0 provides a LAN interface via connector CN7. The following tables describe the Ethernet pinout and jumper configuration.
RJ45 socket pinout
Pin Signal
Bidirectional pair A+
1
Bidirectional pair B+
3
Bidirectional pair C-
5
7 Bidirectional pair D+
RJ45 Socket LED descriptions
LED Left Side Description
10 Mbps link speed
Off
100 Mbps link speed
Green
1000 Mbps link speed
Orange
Jumper X33 determines the power source for the LAN LED drivers. Therefore, set this jumper according to the voltage source of the onboard
module's LAN controller.
Jumper X33 Description
1 - 2 LAN controller is powered from standby voltage (default)
2 - 3 LAN controller is powered from main voltage
Connector Type
CN7: 8 pin RJ45 plug
X33: 2.54mm grid Jumper
Copyright © 2014 congatec AG
Pin Signal
Bidirectional pair A-
2
Bidirectional pair C+
4
Bidirectional pair B-
6
Bidirectional pair D-
8
LED Right Side
Off
Steady On
Blinking
Description
No link
Link established, no activity detected
Link established, activity detected
LAN Power Source
QEV2m11
CN7
8 7 6 5 4 3 2 1
(front view)
Con g
(X33)
1
2
3
