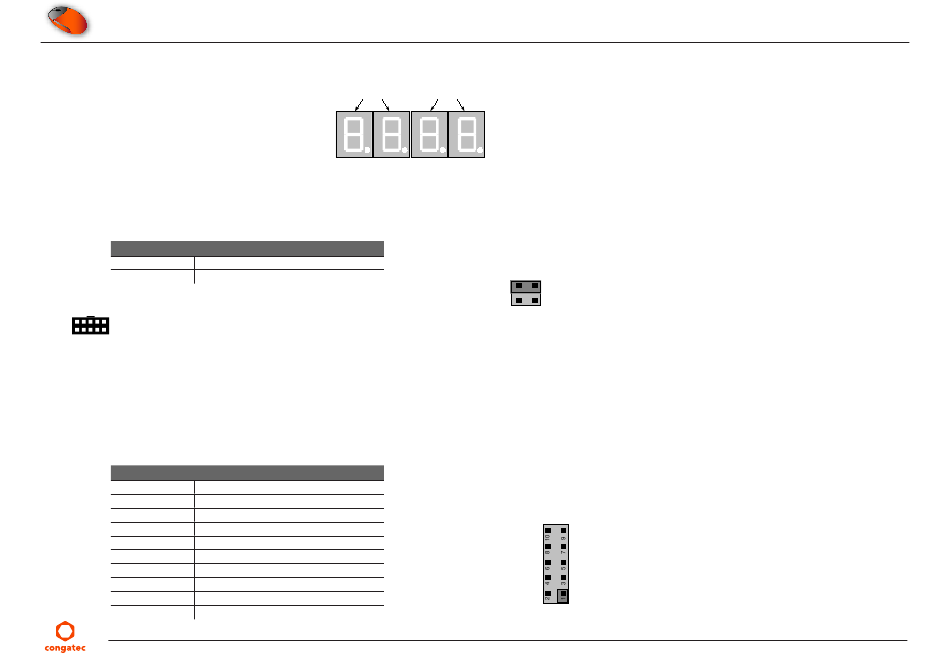

The QEVAL 2.0 decodes these ports and displays their contents on 4 seven-segment displays (D16 to D19).
A list of the POST codes and associated POST test and initialization routines for the BIOS used on congatec Qseven
http://www.congatec.com.
Configuration
Jumper X44
1 - 2 Port 80h and port 84h output (default)
3 - 4 Port 90h and port 94h output
Connector Type
X44: 4 pin 2 row 2.54mm grid Jumper.
6.8

Onboard Module's COM Port

The COM port signals of the Qseven
below:
Pins Description
N.C
1
N.C
2
Receiver
3
Request To Send
4
Transmitter
5
Clear to Send
6
7 N.C
N.C
8
GND
9
N.C
10
Copyright © 2014 congatec AG
Port 80/90 Port 84/94
Debug Display
Config (X44)
module are available on the QEVAL 2.0 header connector X30 (COM2). The pin description is shown
®
1 2
3 4
COM2 Header
X30
QEV2m11
modules is available at:
®
