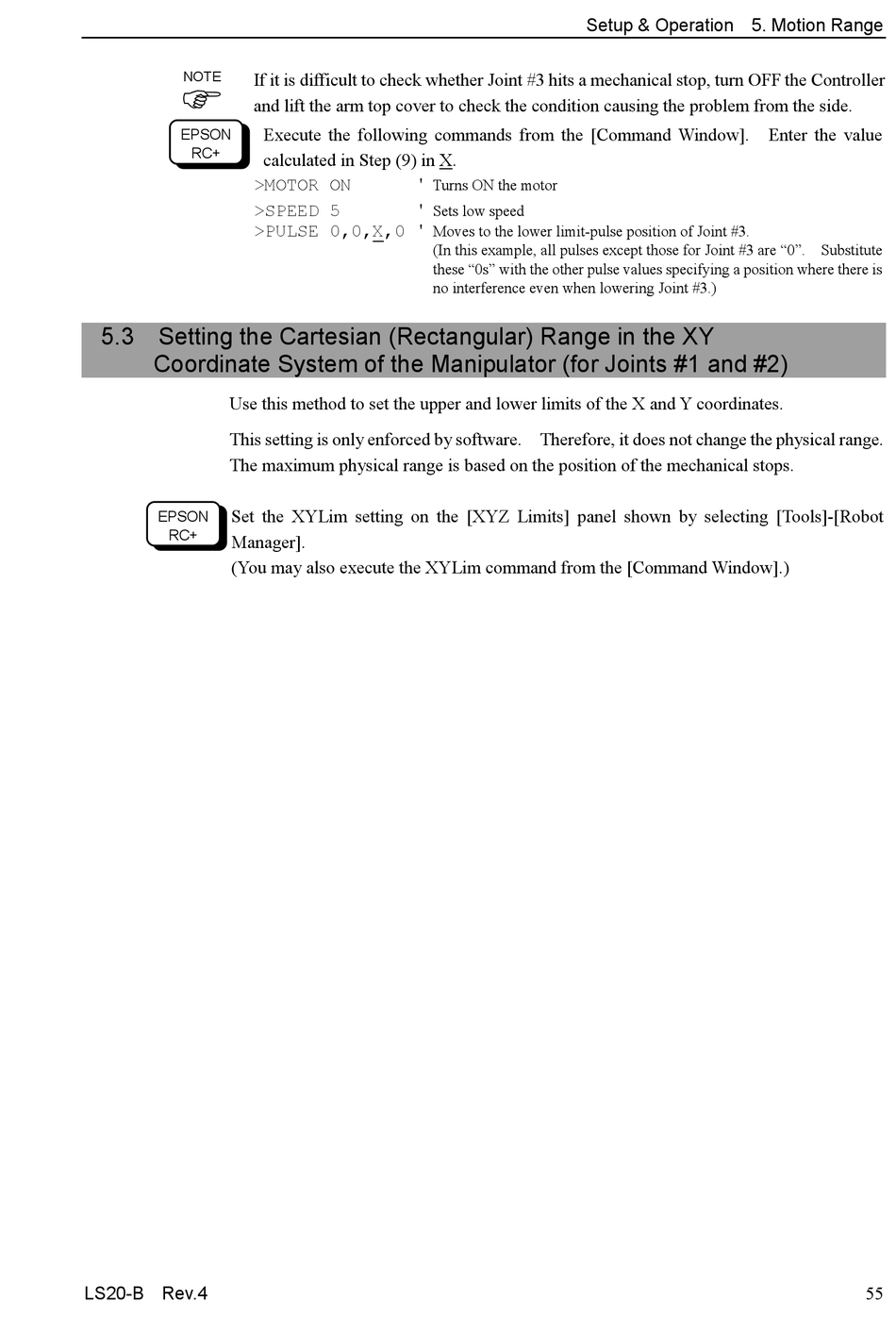

5.3 Setting the Cartesian (Rectangular) Range in the XY
Coordinate System of the Manipulator (for Joints #1 and #2)
Use this method to set the upper and lower limits of the X and Y coordinates.
This setting is only enforced by software. Therefore, it does not change the physical range.
The maximum physical range is based on the position of the mechanical stops.
Set the XYLim setting on the [XYZ Limits] panel shown by selecting [Tools]-[Robot
EPSON
RC+
Manager].
(You may also execute the XYLim command from the [Command Window].)
LS20-B Rev.4
If it is difficult to check whether Joint #3 hits a mechanical stop, turn OFF the Controller
and lift the arm top cover to check the condition causing the problem from the side.
Execute the following commands from the [Command Window]. Enter the value
calculated in Step (9) in X.
>MOTOR ON '
>SPEED 5 '
>PULSE 0,0,X,0 '
Setup & Operation 5. Motion Range
Turns ON the motor
Sets low speed
Moves to the lower limit-pulse position of Joint #3.
(In this example, all pulses except those for Joint #3 are "0". Substitute
these "0s" with the other pulse values specifying a position where there is
no interference even when lowering Joint #3.)
