Maintenance 8. Joint #4
8.5

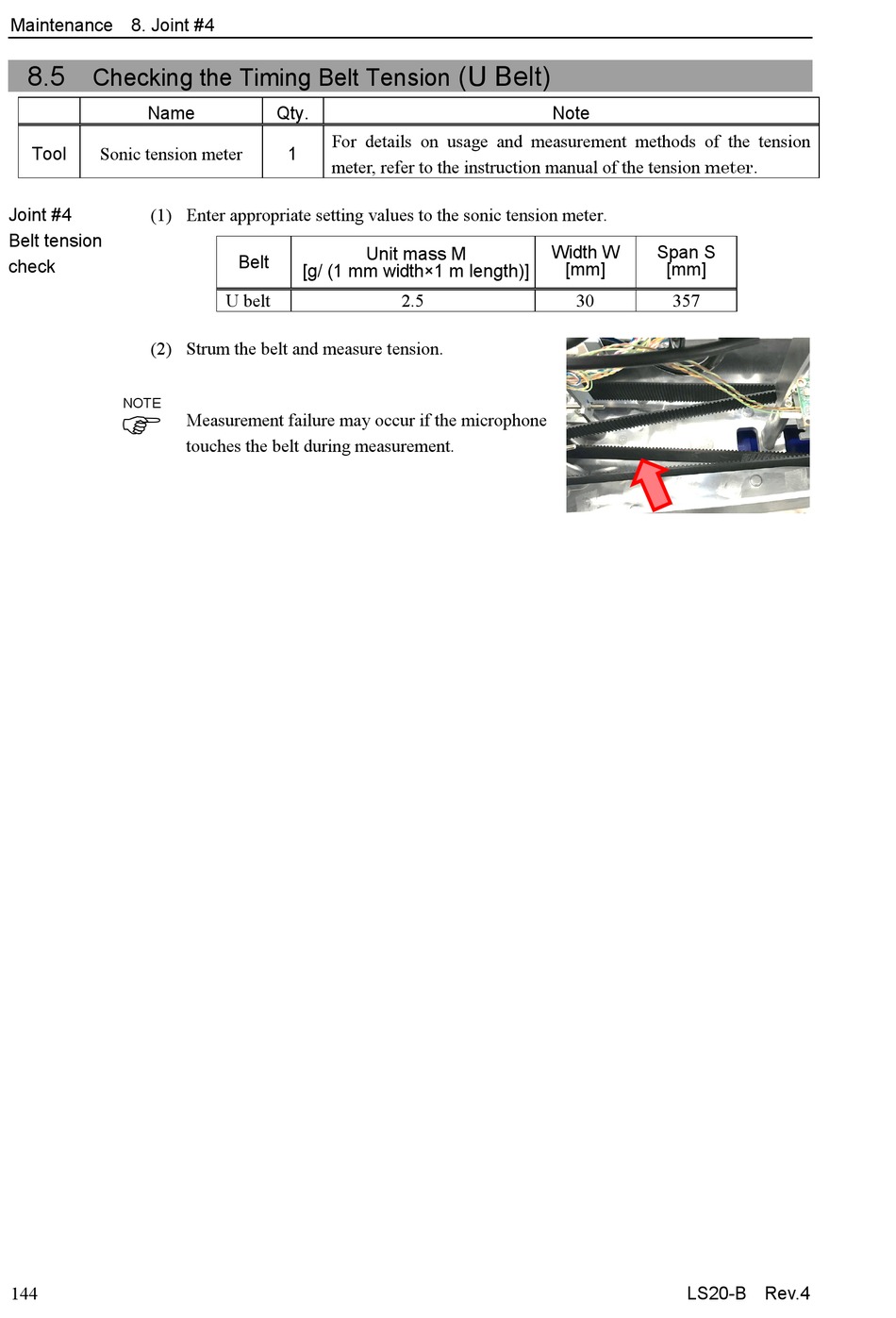

Checking the Timing Belt Tension
Name
Tool Sonic tension meter
Joint #4 (1) Enter appropriate setting values to the sonic tension meter.
Belt tension
check
(2) Strum the belt and measure tension.
NOTE

144
Qty.
For details on usage and measurement methods of the tension
1
meter, refer to the instruction manual of the tension meter.
Belt
[g/ (1 mm width×1 m length)]
U belt
Measurement failure may occur if the microphone
touches the belt during measurement.
(U Belt)
Unit mass M
2.5
Note
Width W Span S
[mm] [mm]
30 357
LS20-B Rev.4
