Ethernet Ports

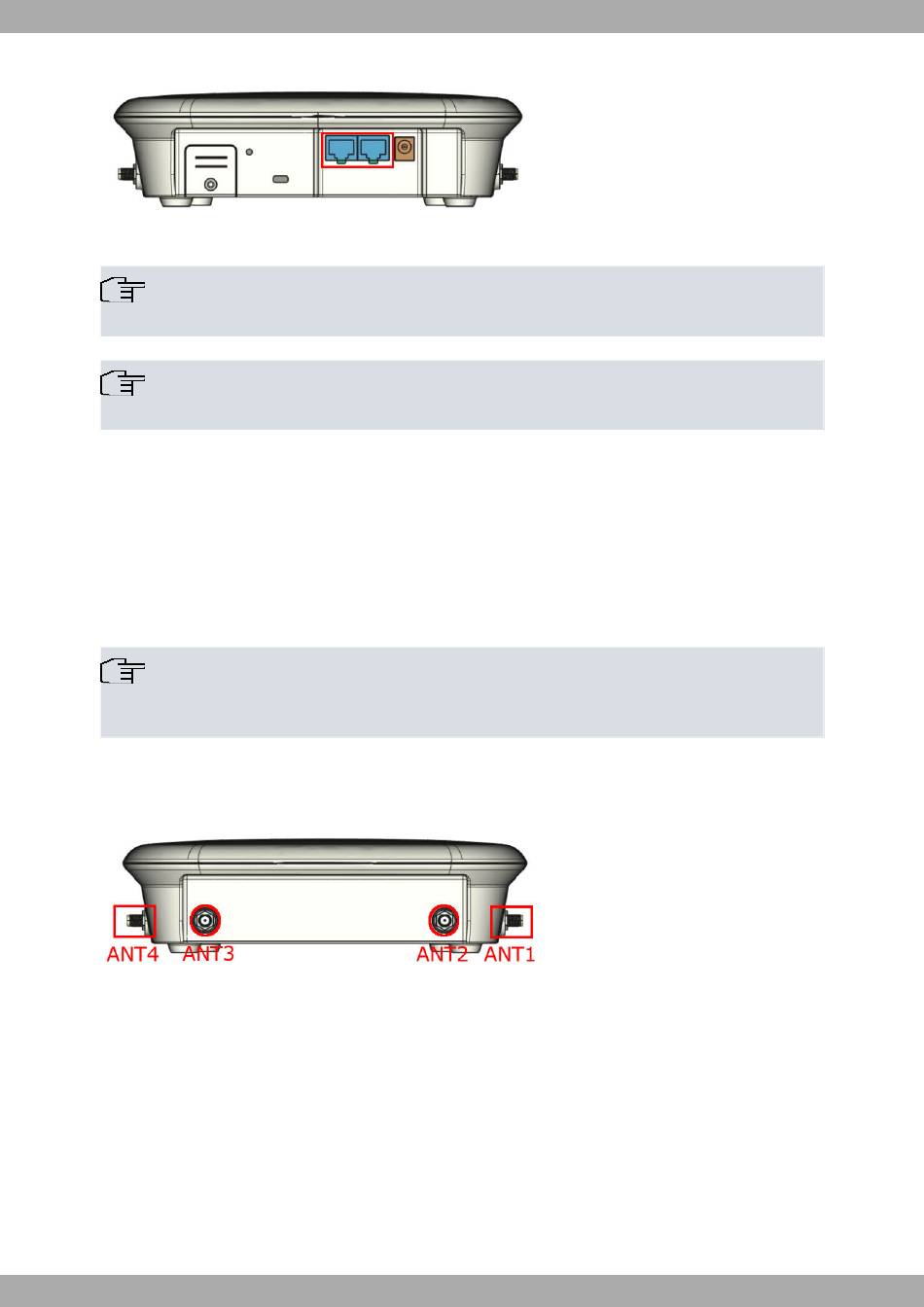

Fig. 13:
Note
Only the LAN1 connector is available during booting and in BIOS mode.
Note
An appropriate software license must be installed for the second LAN (LAN2) interface to work.
3.5.2 Connecting the WWAN Antennas
The Teldat Connect-4GePlus has four connectors for WWAN antennas on the side panels.
To assemble or dismantle the antennas, simply screw or unscrew them into or out of the connectors located on the
side panels of the device.
Installing these antennas in the Teldat Connect-4GePlus is essential to improve the quality of the signal received
and transmitted by the cellular model.
Note
To achieve good quality performance, the Teldat Connect-4GePlus device should always have the
WWAN antennas installed.
Some cellular telephony technologies use the antenna diversity technique to improve the quality of the received sig-
nal. The Teldat Connect-4GePlus family incorporates several WWAN connectors for this.
WWAN connectors seen from the front side
Fig. 14:
Teldat Connect-4GePlus
3 Components and Power Supply
15
