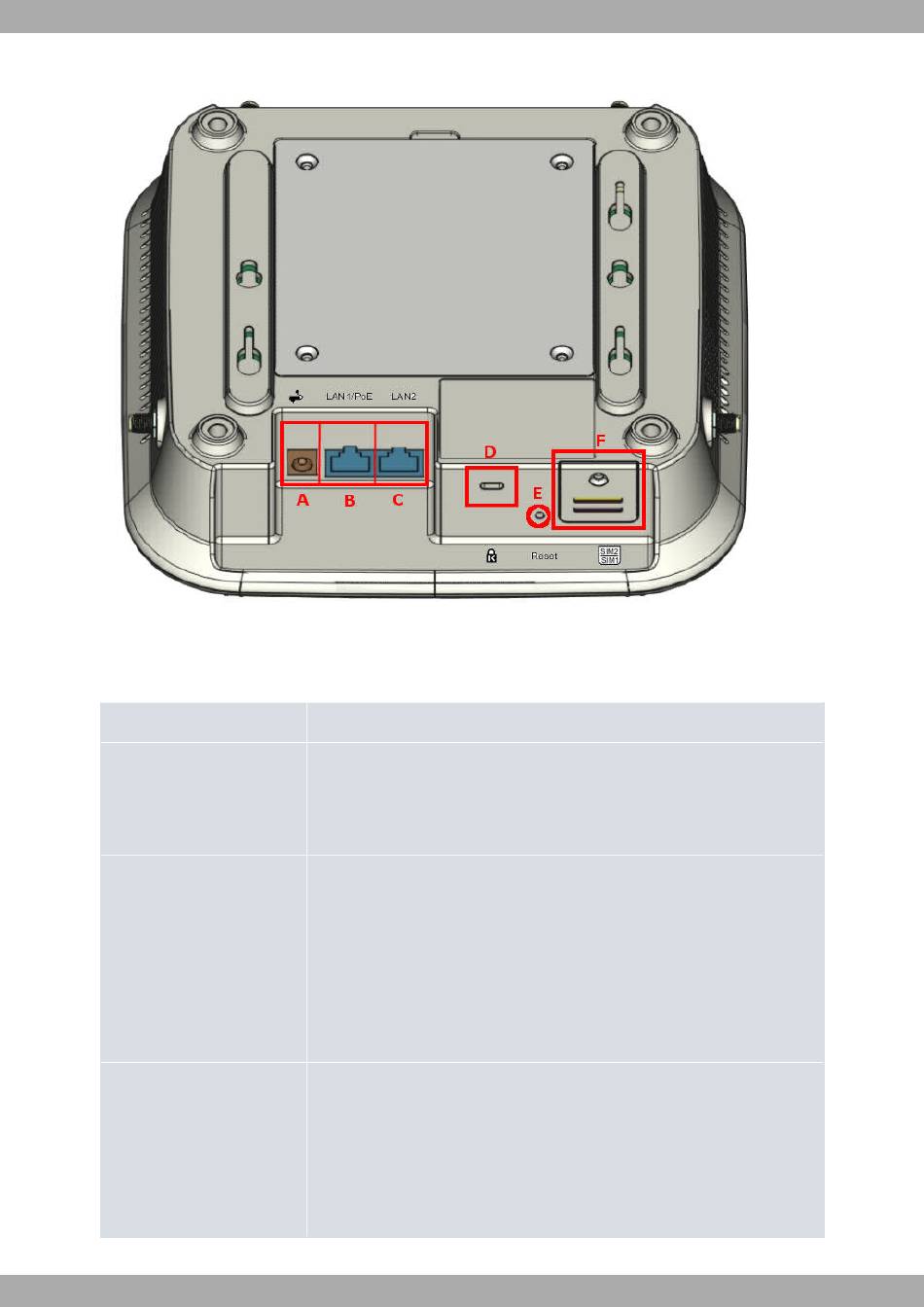

Front Panel
Fig. 2:
The following table provides information on each connector, as well as a description:
Front panel elements
Item
A
B
C
Teldat Connect-4GePlus
Description
Power source connection (PSU).
Refer to
External Power Source
nection and
Power Supply
on page 30 for power specifications applicable to the
Teldat Connect-4GePlus device.
LAN1/POE 2.5 Gigabit Ethernet.
Refer to
PoE
on page 13 for more information on PoE connection
For more information on the LAN interface, refer to:
-
LAN Connection
on page 14
-
LAN Connector
on page 27
-
LAN Interface
on page 28
LAN2. 2.5 Gigabit Ethernet.
For more information on the LAN interface, refer to:
-
LAN Connection
on page 14
-
LAN Connector
on page 27
-
LAN Interface
on page 28
on page 13 for more information on Power con-
3 Components and Power Supply
7
