Product description

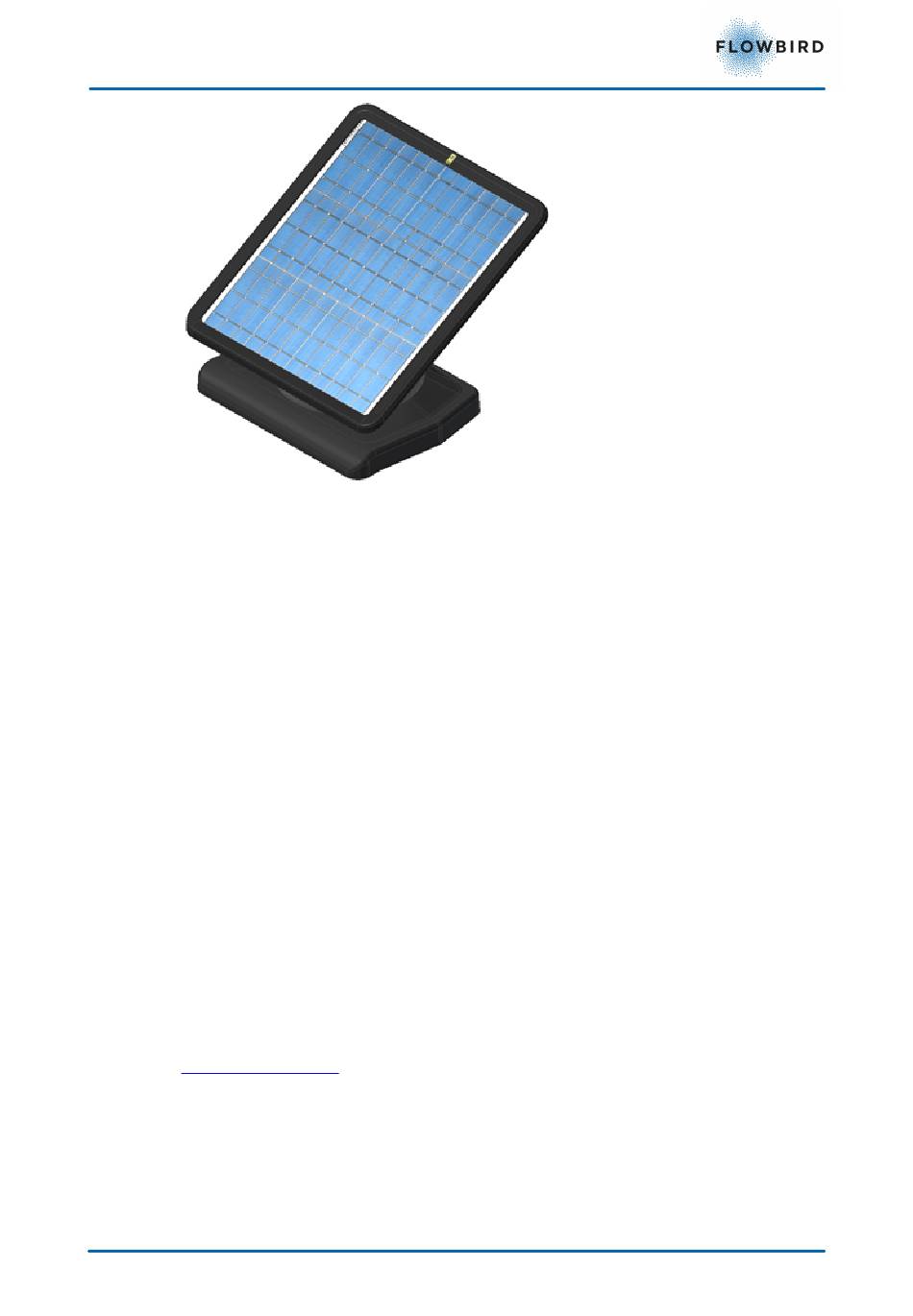

Figure 32, Tophat 360 w ith light rail betw een the foot
4.8.3
Battery charging by mains power
In mains powered terminals the 12 V battery is charged by the battery loader that
outputs 12 V (13.8 V) to the battery via a separate 6.3 A fuse.
The charger has three indicators:
GREEN ON when 230 V (115 V UK) Mains power is available.
YELLOW ON when charging is in progress.
RED
The charger also has a 12 V distribution panel with three output connectors and
two 230 V (115 V UK) outputs for optional heating fans.
A diode in the battery charger protects the circuitry if the battery is connected
with wrong polarity. In such a case one or both main fuses F1 and F2 on the
CPU board may blow.
The cable from the mains power grid is connected to a termination block in the
Pedestal. The termination block contains a residual-current device, optionally
combined with a fuse.
4.9
Administrative tools
Flowbird supplies programs and services for credit card administration,
collection, terminal maintenance, etc. Contact Flowbird or your nearest Flowbird
representative for more information. You are welcome to visit
www.flowbird.group
4.9.1
The service menu
The service menu is shown when the CWT S5 switches into service mode when
you open the cabinet door. The numerous options in the service menu let you:
1. Change terminal settings.
2. Export and import terminal settings.
Issue 5
and the tophat
Initially ON when a deeply discharged battery is being charged.
for details.
CWT S5 Installation & Maintenance Manual
Page 37
