The LED indicator is located on the top of the expansion board and visible when
mounted on the main board.
RED
Registered in the GSM network. Should always be ON.
YELLOW Connected to the GPRS network. Should always be ON.
GREEN Connected to GPRS network and ready to communicate with the
WebOffice gateway.
The LED will be turned off when the modem is powered off. If no LED is lit and
the modem is powered on, the SIM is not valid or an incorrect PIN code has been
entered in the terminal configuration.
Blinking pattern
10 ms on / 1990 ms off Modem has an active PPP-connection (GPRS and
UMTS) and is ready to communicate.
10 ms on / 3990 ms off Modem registered to a network. No call, no data
transfer active.
500ms on / 500 ms off
Limited Network Service (e.g. because no SIM, no PIN
or during network search)
5.2.6
Loading paper in the Flowbird printer
1. Place the roll support in the paper roll

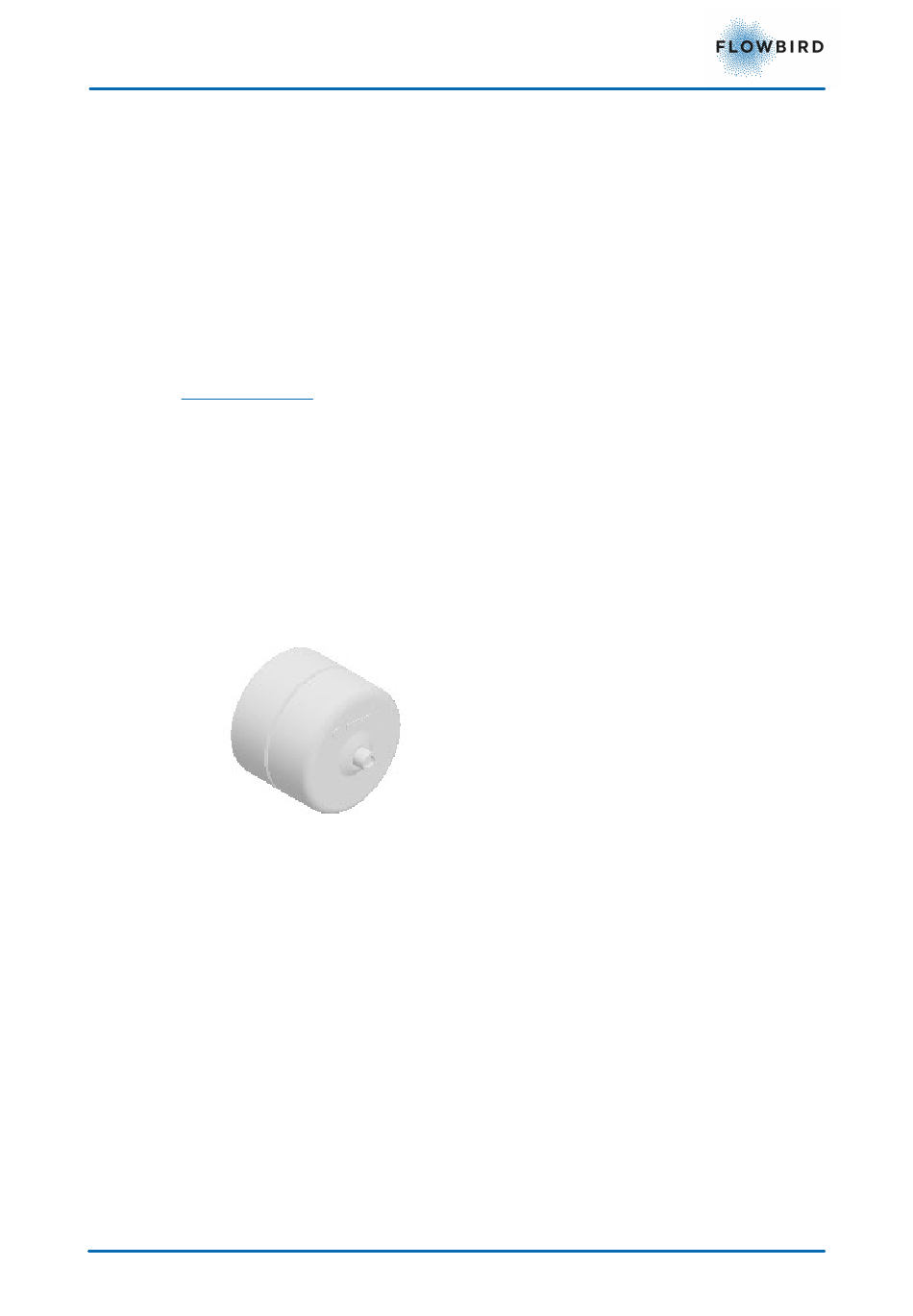

Figure 43, Paper roll support
Issue 5
CWT S5 Installation & Maintenance Manual
Page 52
