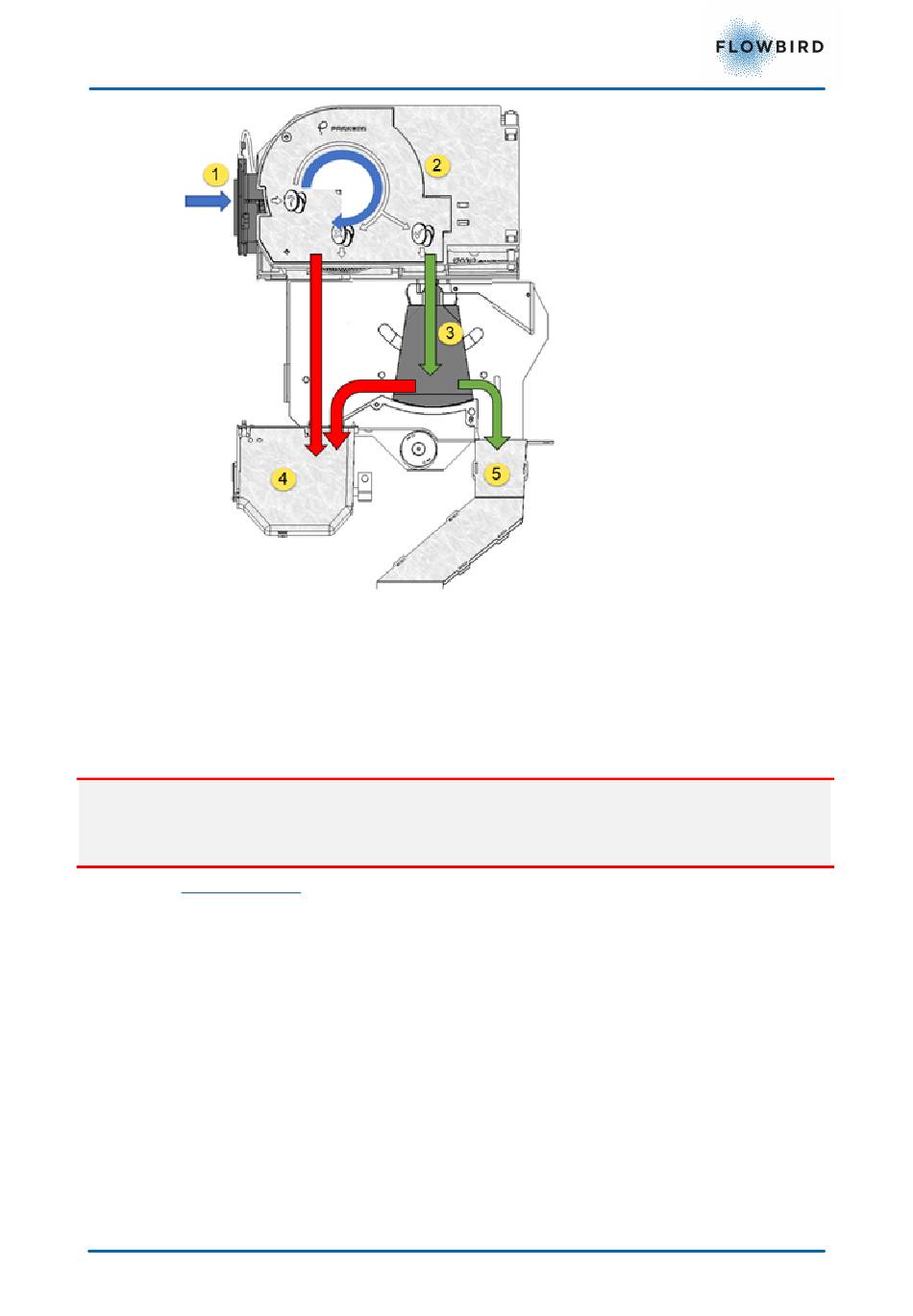

Figure 6, Coin Flow through the coin unit
1. Coin detection sensor
2. Coin validator
3. Escrow
4. Coin return cup
5. Coin funnel to coin box
Important:
The function of the coin system may be interrupted if the terminal leans too
much in any direction.
Purchase flow
Inserting a coin in the coin detection sensor (1) will activate and open the coin
validator (2).
Invalid coins will be discarded in the coin Return Cup (4).
Valid coins will be routed into the Escrow (3).
If the purchase is cancelled the coins will be returned in the coin Return Cup (4).
If the purchase is accepted the coins will be forwarded to the coin Box (not
depicted) via the coin funnel (5).
4.3.4.1 Coin detection sensor
The function of the coin detection sensor is to activate the coin validator. The
coin validator is in its default position closed. If a coin is presented to the Coin
detection sensor, it will send a command to the coin validator to open to accept
and validate the coin.
Issue 5
CWT S5 Installation & Maintenance Manual
Page 18
