Installation
strongly dependent on GSM/GPRS reception and should be increased in
poor situation.
·
The distance at the left side ensures that the doors can be fully opened.
·
The distance at the right side allows easy insertion of the door key and gives
enough space if a locking mechanism needs to be repaired.

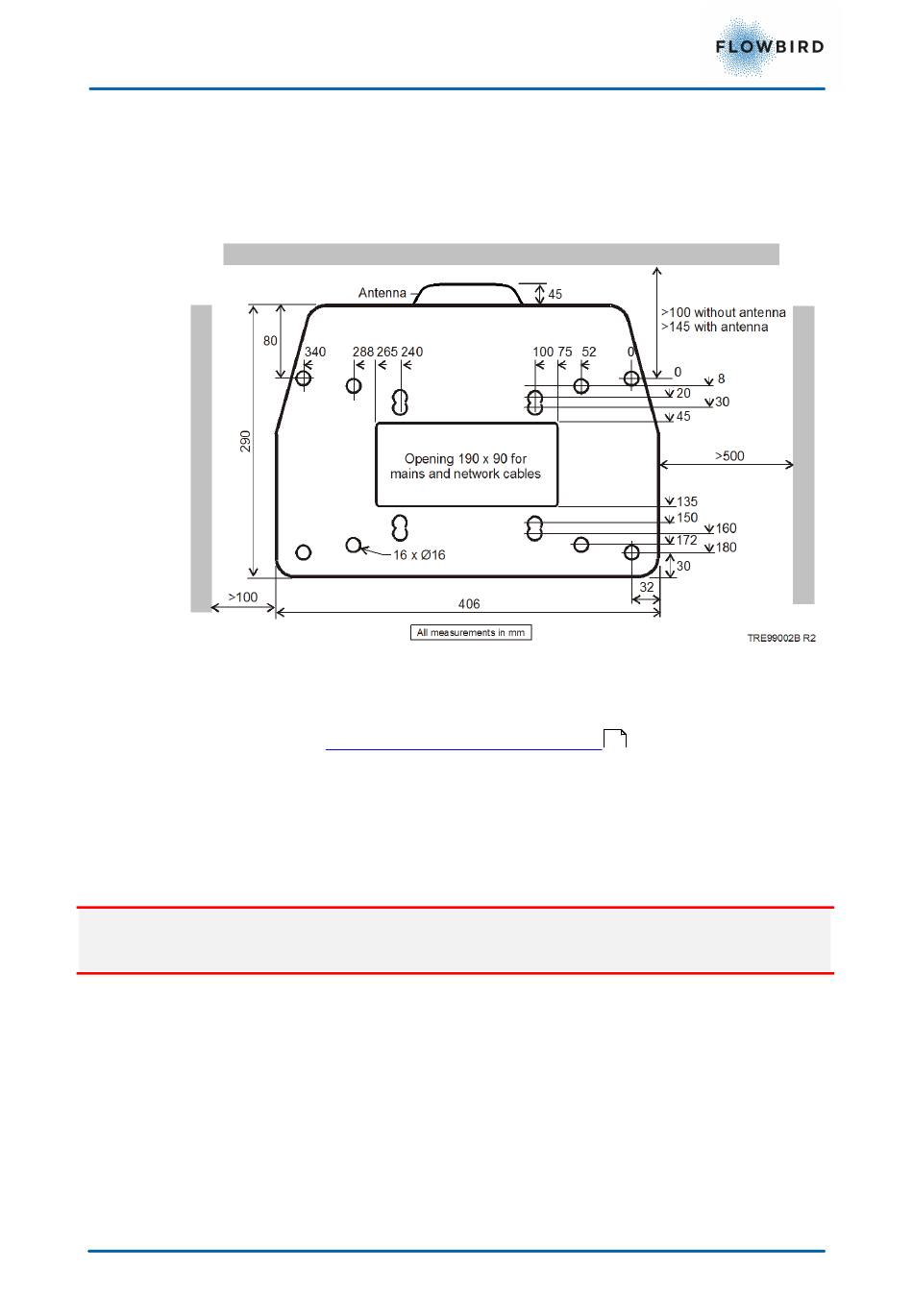

The above figure shows all the alternative mounting holes in the pedestals
bottom plate. See
terminal on a base anchor cast into a foundation.
A cable for connection to the power grid is drawn through the floor (from the floor
below, for example) and into the pedestal through the opening in the mounting
frame (optional). Alternatively, a hole can be drilled in the pedestal and the cables
drawn in some other way. The cable must be protected against damage. Use
proper cable bushing to prevent cable wear and moisture entry into the pedestal.
Danger:
Follow local regulations regarding electrical installations.
5.1.2
Solar power positioning
The ideal installation of the terminal may vary due to the surroundings. A thumb
rule is to have the solar panel facing south with the panel surface perpendicular
towards the sun.
The drawing below illustrates how a terminal is installed on an undefined street
with obstacles (buildings) on both sides. The illustration also shows the angle
where the solar panel will get the most sun during the day. Please note that the
angle is also 360 degrees around the terminal. Mentioned parameters must be
considered when planning an installation.
Issue 5
Figure 34, Term inal installation draw ing
Pouring a new concrete foundation
CWT S5 Installation & Maintenance Manual
regarding placing the
44
Page 42
