Product description
4.7.6.3 Door-open sensors
Both doors have a door-open sensor. All attempts to open the terminal are
logged in the CWT S5 and the information is transferred to WebOffice.
The door-open sensor consists of a permanent magnet mounted on the door
and a magnetic field sensitive sensor mounted inside the door frame.
4.7.7
Heating system
The CWT S5 can be provided with heating in both the cabinet and the pedestal
by means of 100 W heating fans and thermostats adjustable between 0 and 60 °
C.
Both the fan and the thermostat are mounted on existing DIN rails. The heating
fan is connected to one of the two 230 V (115 V UK) outlets (for the heating
radiator) and one 12 V outlet (for the fan itself) in the battery charger module
located in the pedestal.
4.8
Power supply
CWT S5 terminals are powered by a gel type, maintenance free lead-acid battery
placed in the pedestal of the terminal. The battery is charged by
or
solar power
at the top.
Issue 5

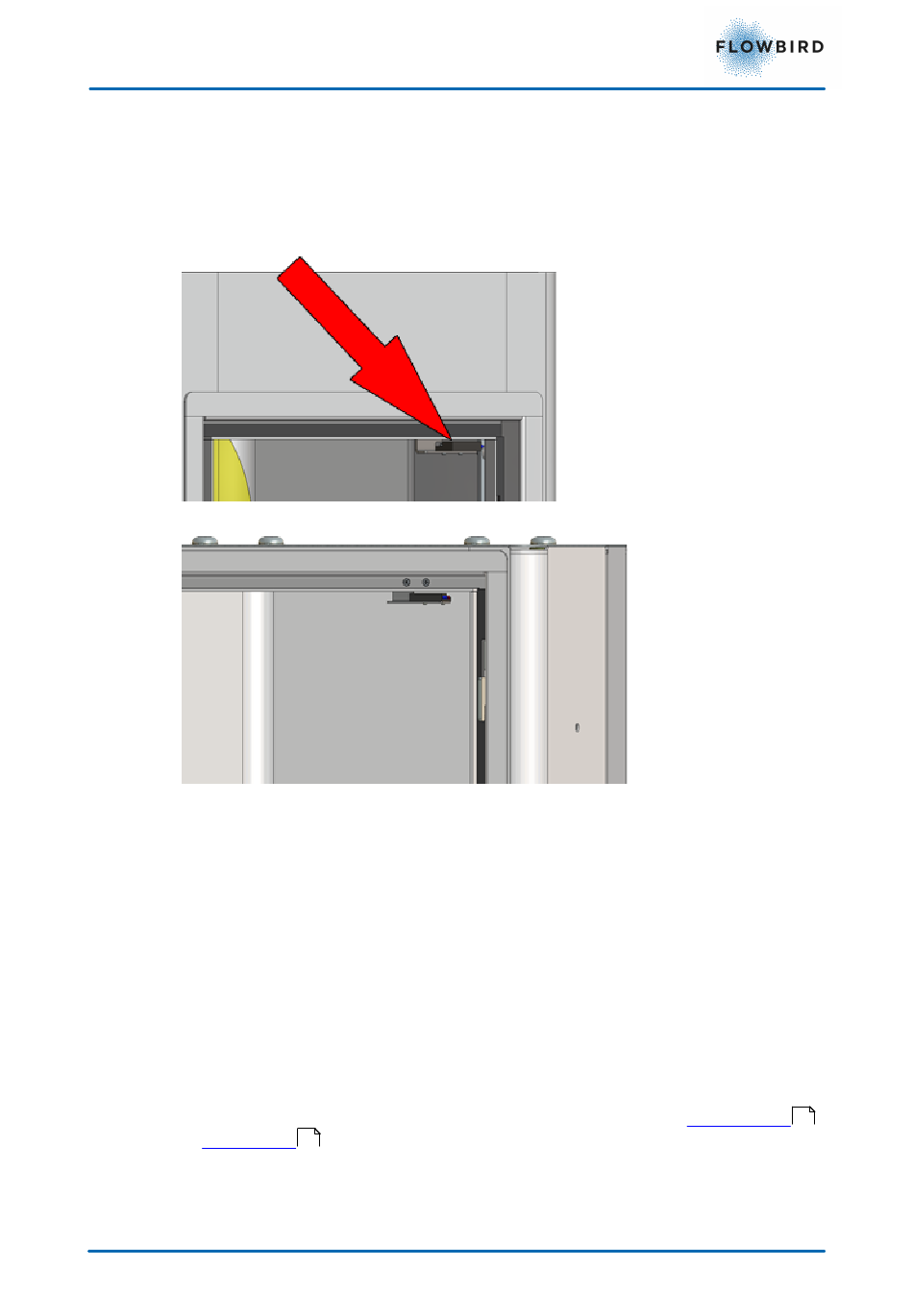

Figure 30, Door-open sensor in the cabinet.
Figure 31, Door-open sensor in the pedestal.
. In the latter case the terminal has a solar cell panel mounted
36
CWT S5 Installation & Maintenance Manual
mains power
37
Page 35
