5. Loosen the lower hinge pin's locking screw (2 mm Allen key) and push the
screw with the attached hinge pin up and out of grip with the cabinet. Lock
the hinge pin in this upper position.
6. Carefully pull the lower end of the door out and then lower the door to
disengage the upper hinge pin from the cabinet.
Assembly
Follow the directions above in reverse order.
Important:
Loosen the lower hinge pin's locking screw to let the hinge pin enter the
corresponding hole in the cabinet.
7.7.3
Lacquer touch-up
Flowbird provides kits including touch-up paint (3 x 0.3 litres), sandpaper and
instructions. When ordering, please state the article number and the colour
number (usually a RAL number) indicated on labels inside the cabinet and
pedestal.
Issue 5

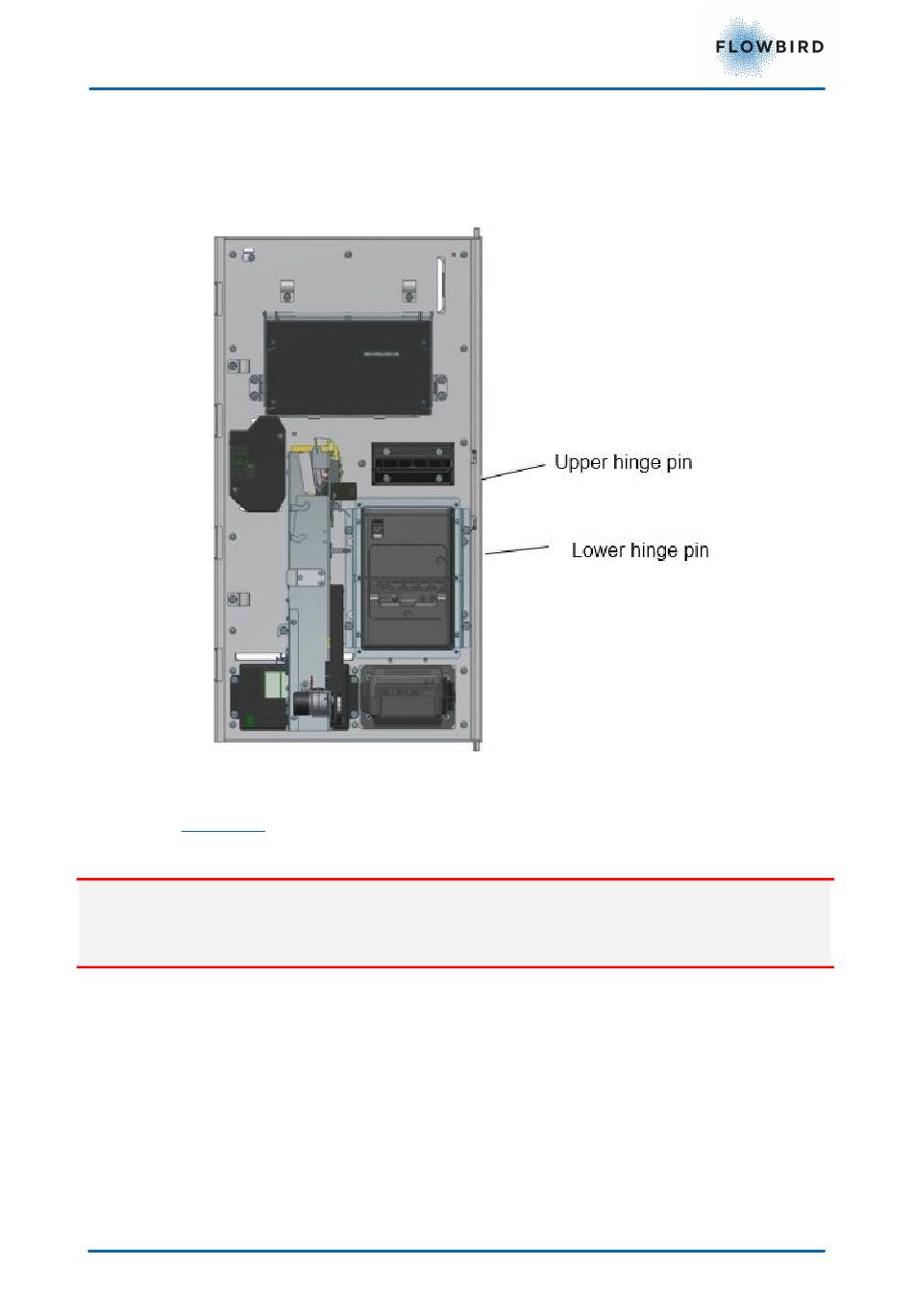

Figure 66, The door hinge m echanism is the sam e on all m odels
CWT S5 Installation & Maintenance Manual
Page 78
