Maintenance

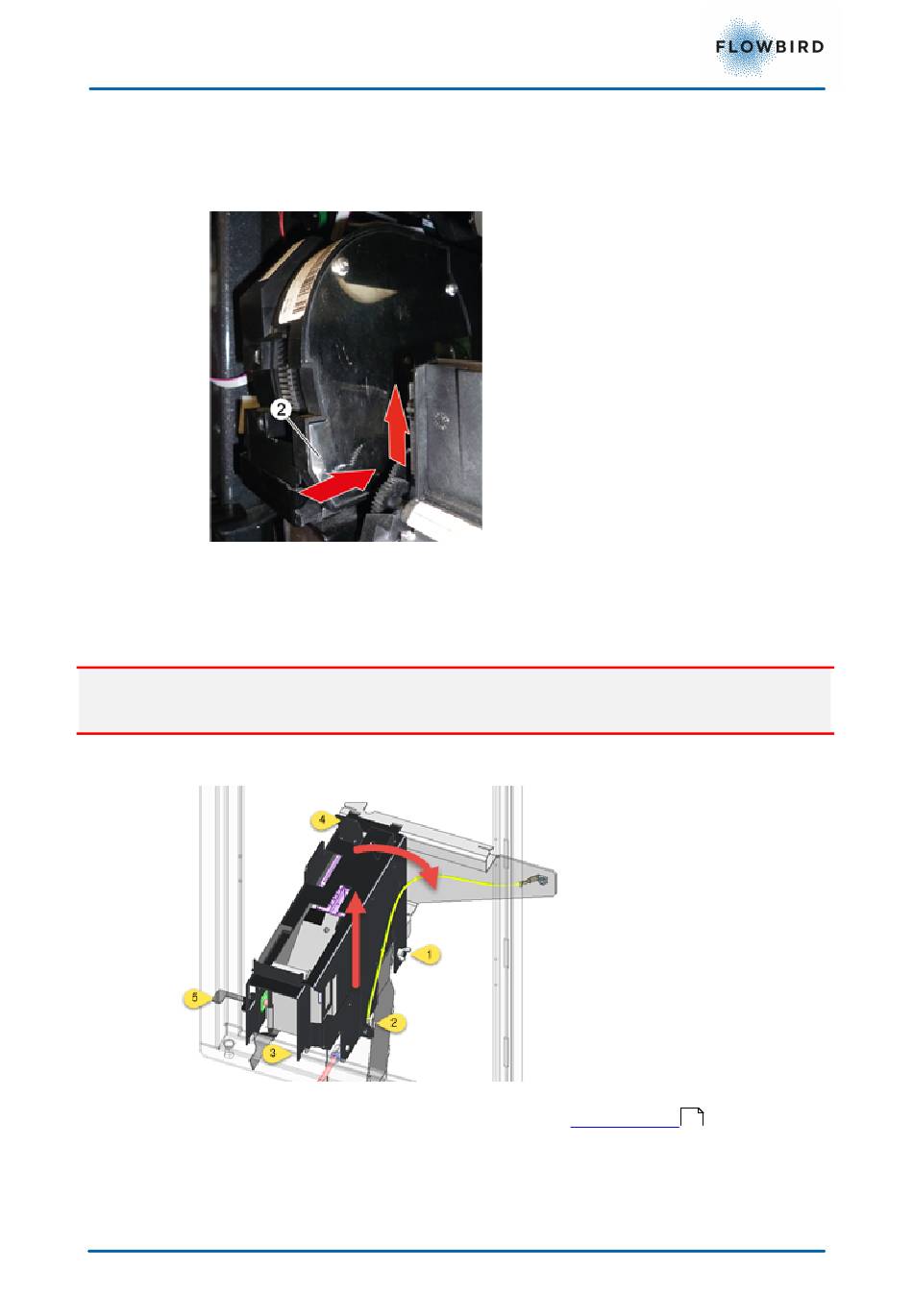

7.3.1.2 Replacing the coin validator
1. Unplug the cable from the coin validator.
2. Push the coin validator (2) to the back in order to compress the metallic
spring of the escrow, then lift it.
Figure 57, Rem ove the coin validator
3. Remove the coin selector.
Install in reverse order
If the door does not close or if the coin inlet is not aligned with the validator,
adjust the position of the escrow
7.3.2
Replacing the escrow
1. Remove the coin validator (not displayed, see
2. Remove the butterfly screw (1)
3. Unplug the grounding cable (2)
4. Lift the escrow from its supports (3) and (4).
Issue 5
Figure 58, rem ove the escrow
CWT S5 Installation & Maintenance Manual
Coin validator
)
67
