4.9.3

Battery charging by mains power

In mains powered terminals the 12 V battery is charged by the battery loader that
outputs 12 V (13.8 V) to the battery via a separate 6.3 A fuse.
The charger has three indicators:
GREEN ON when 230 V (115 V UK) Mains power is available.
YELLOW ON when charging is in progress.
RED
The charger also has a 12 V distribution panel with three output connectors and
two 230 V (115 V UK) outputs for optional heating fans.
A diode in the battery charger protects the circuitry if the battery is connected
with wrong polarity. In such a case one or both of the main fuses F1 and F2 on
the CPU board may blow.
The cable from the mains power grid is connected to a termination block in the
Pedestal. The termination block contains a residual-current device, optionally
combined with a fuse.
4.10

Administrative tools

Cale Access supplies programs and services for credit card administration,
collection, terminal maintenance, etc. Contact Cale Access or your nearest Cale
representative for more information. You are also welcome to visit
www.calegroup.se
Issue 13 CWT Compact Touch Installation and Maintenanace Manual

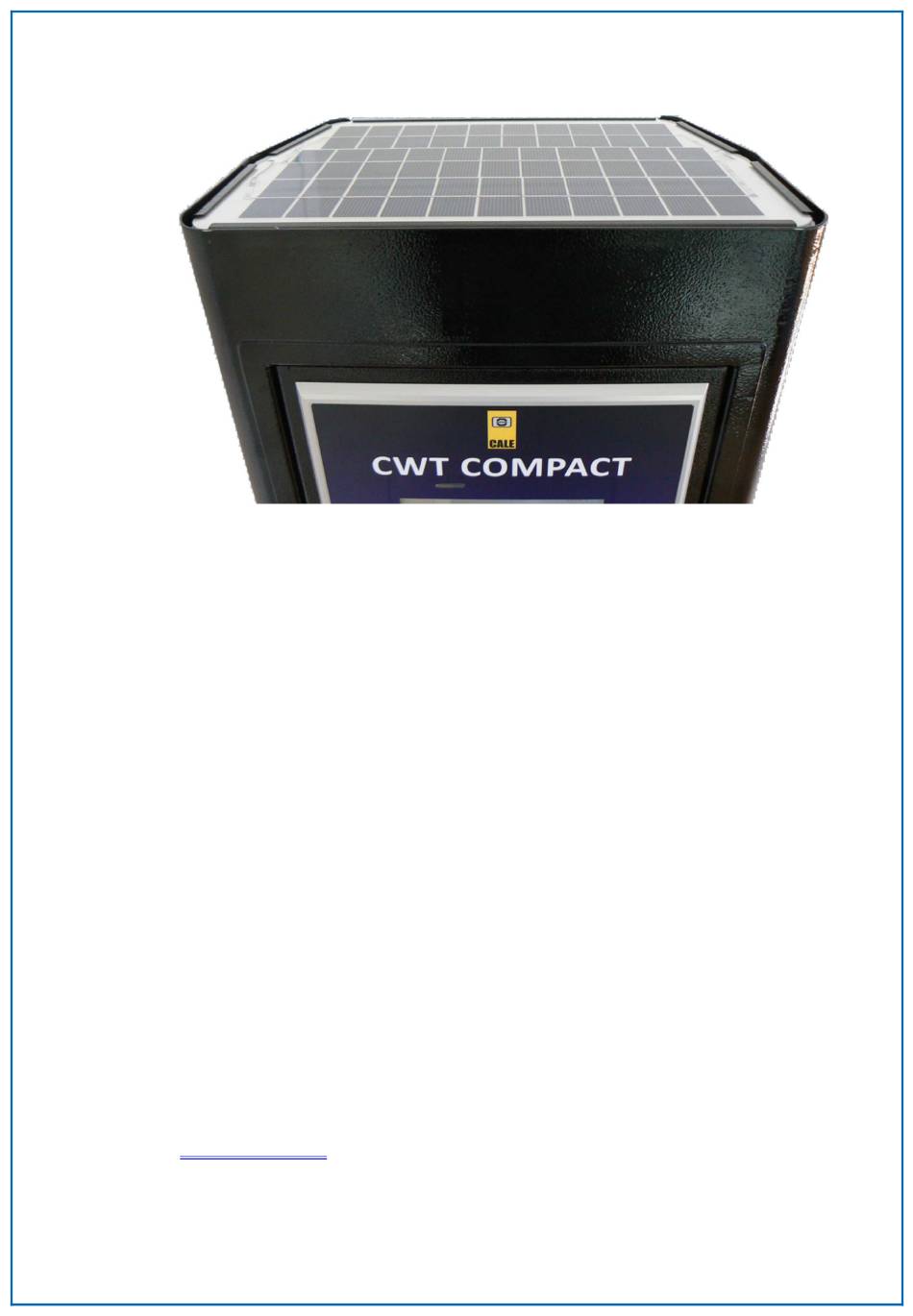

Figure 38, CWT Compact solar panel example
