Display Module replacement

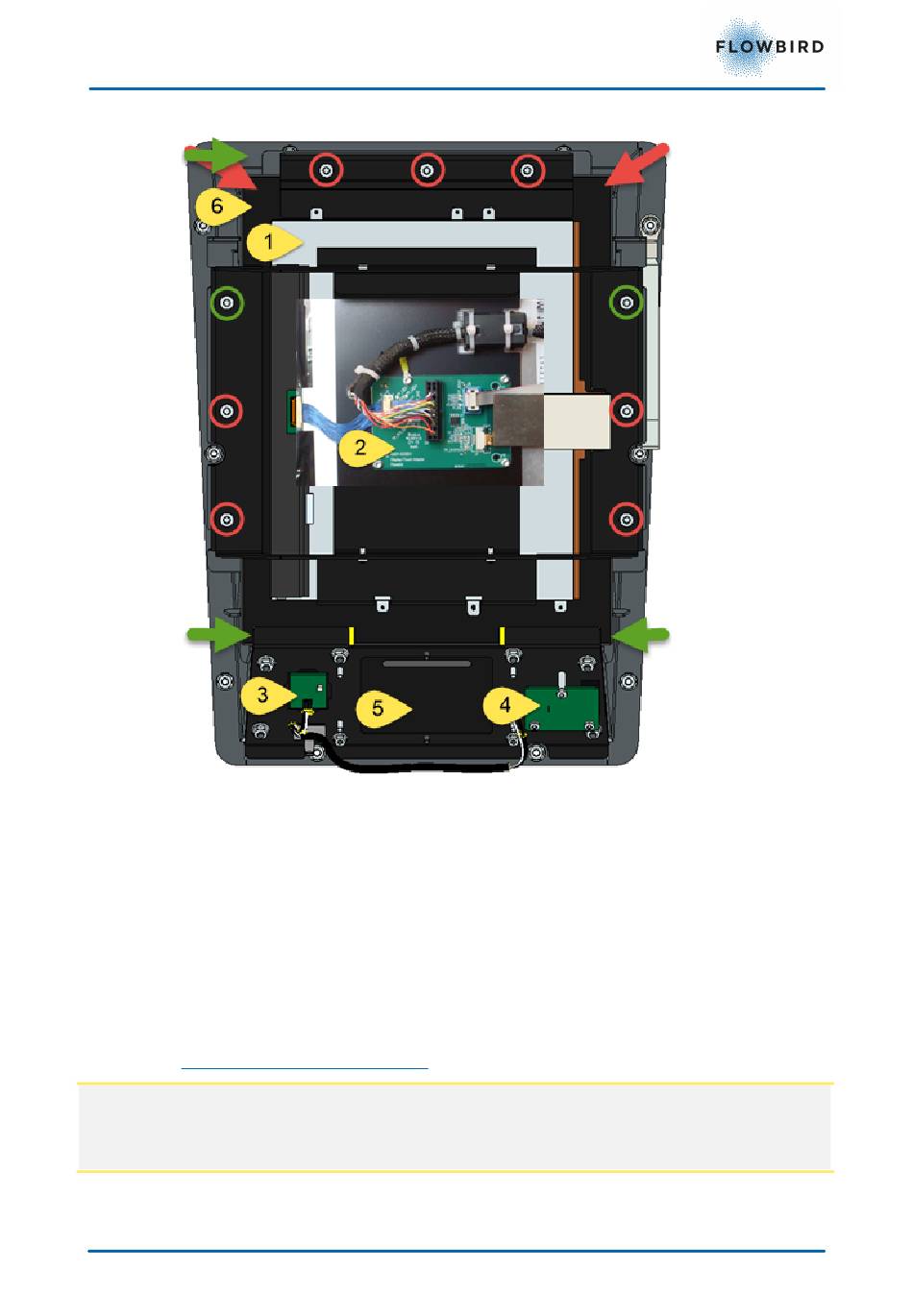

Figure 60, Display m odule m ountings
The display module consists of the following parts:
1. Display Unit
2. Display adapter card
3. Wake-up button
4. Status indicator
5. place for contactless card reader
6. Touch screen
To dismount the Display Unit
Note:
The display unit must be replaces including the touch screen.
The display is fixed in place with heavy duty glue.
Issue 5
CWT S5 Installation & Maintenance Manual
Page 72
