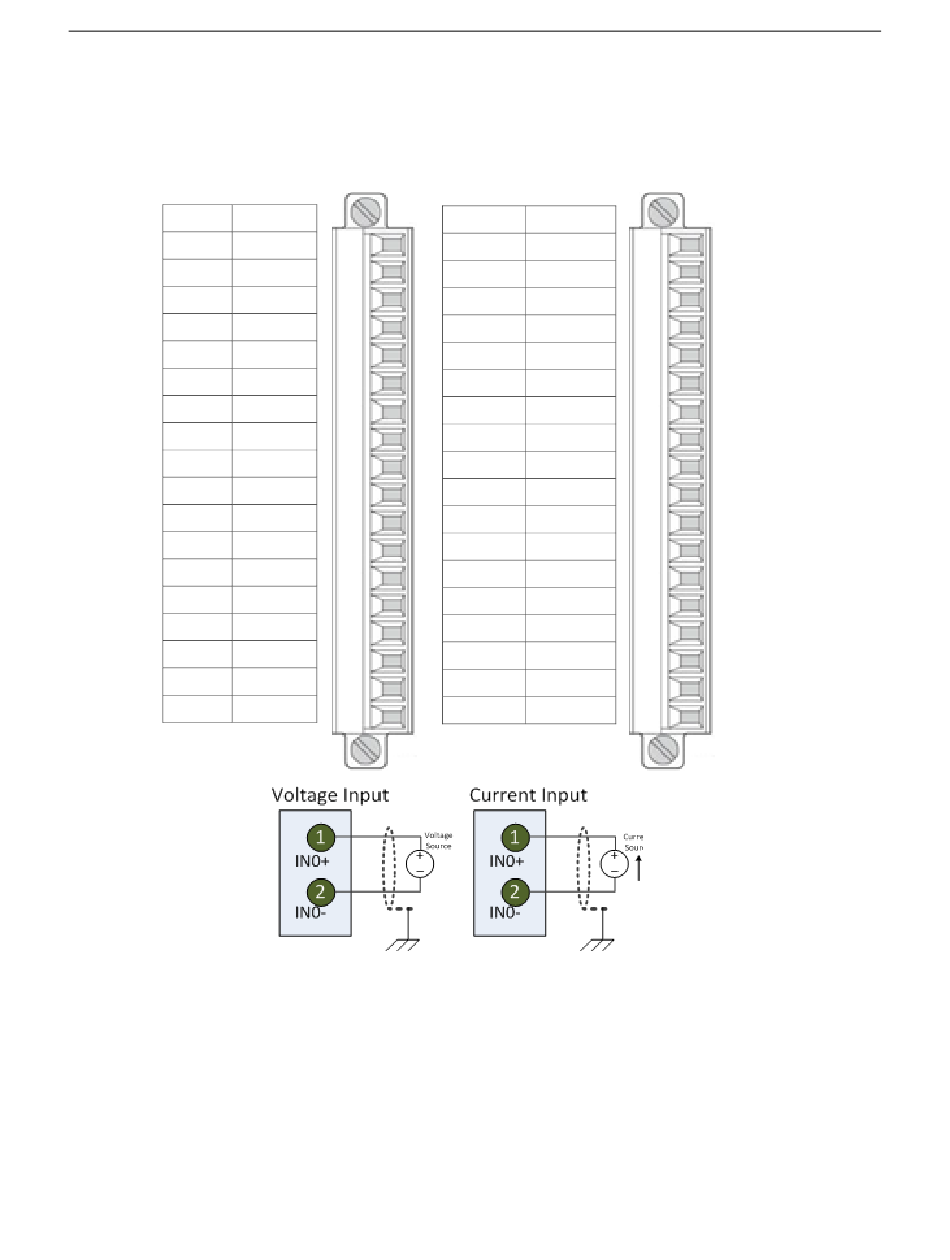

2.4.2 Wiring Diagram

The following images explain the general layout of the module terminal blocks
and the associated wiring diagrams for the various input signals and the
Micro850 2085sc-IF16C or 2085sc-IF16V module:
RTB1#
Name
1
IN0+
2
IN0-
3
IN1+
4
IN1-
5
IN2+
6
IN2-
7
IN3+
8
IN3-
9
IN4+
10
IN4-
11
IN5+
12
IN5-
13
IN6+
14
IN6-
15
IN7+
16
IN7-
17
NC
18
NC
Chapter 2: Installation and Wiring
RTB2#
Name
19
IN8+
20
IN8-
21
IN9+
22
IN9-
23
IN10+
24
IN10-
25
IN11+
26
IN11-
27
IN12+
28
IN12-
29
IN13+
30
IN13-
31
IN14+
32
IN14-
33
IN15+
34
IN15-
35
NC
36
NC
User's Manual Pub. 0300306-01 Rev. A
2-7
