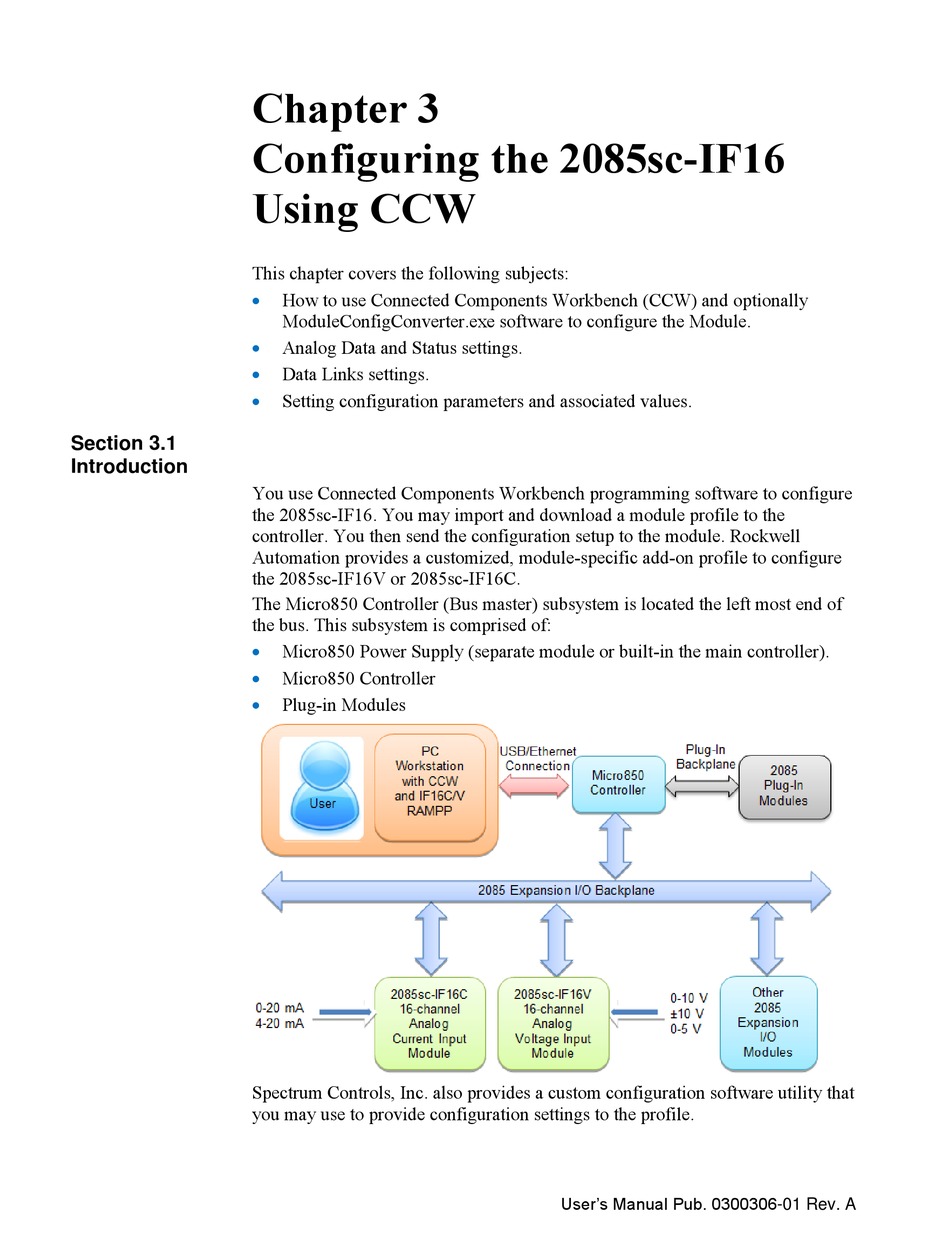

Spectrum Controls Micro850 User Manual page 23

Section 3.1
Introduction
Chapter 3
Configuring the 2085sc-IF16
Using CCW
This chapter covers the following subjects:
 How to use Connected Components Workbench (CCW) and optionally
ModuleConfigConverter.exe software to configure the Module.
 Analog Data and Status settings.
 Data Links settings.
 Setting configuration parameters and associated values.
You use Connected Components Workbench programming software to configure
the 2085sc-IF16. You may import and download a module profile to the
controller. You then send the configuration setup to the module. Rockwell
Automation provides a customized, module-specific add-on profile to configure
the 2085sc-IF16V or 2085sc-IF16C.
The Micro850 Controller (Bus master) subsystem is located the left most end of
the bus. This subsystem is comprised of:
 Micro850 Power Supply (separate module or built-in the main controller).
 Micro850 Controller
 Plug-in Modules
Spectrum Controls, Inc. also provides a custom configuration software utility that
you may use to provide configuration settings to the profile.
User's Manual Pub. 0300306-01 Rev. A
