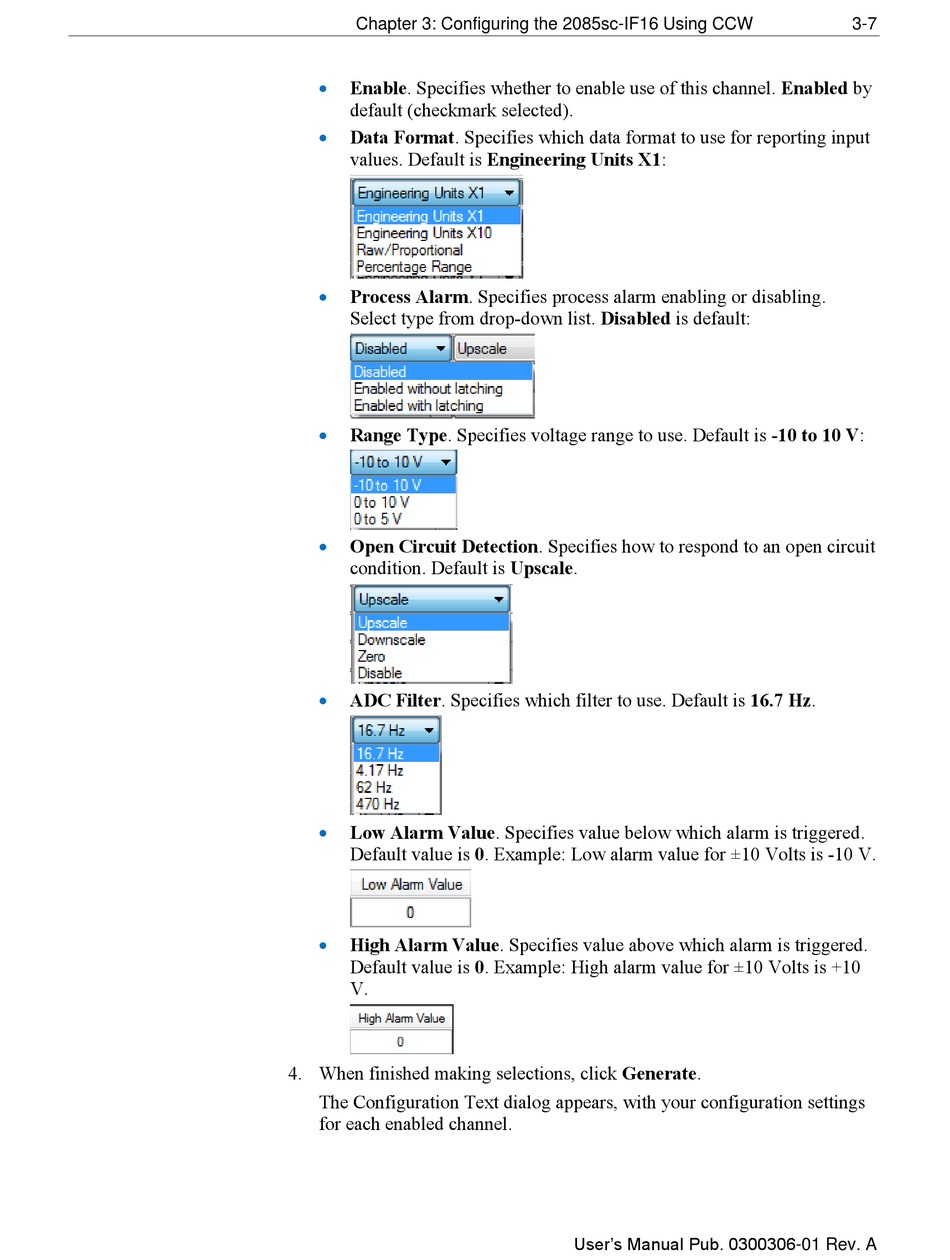

Chapter 3: Configuring the 2085sc-IF16 Using CCW
Enable. Specifies whether to enable use of this channel. Enabled by
default (checkmark selected).
Data Format. Specifies which data format to use for reporting input
values. Default is Engineering Units X1:
Process Alarm. Specifies process alarm enabling or disabling.
Select type from drop-down list. Disabled is default:
Range Type. Specifies voltage range to use. Default is -10 to 10 V:
Open Circuit Detection. Specifies how to respond to an open circuit
condition. Default is Upscale.
ADC Filter. Specifies which filter to use. Default is 16.7 Hz.
Low Alarm Value. Specifies value below which alarm is triggered.
Default value is 0. Example: Low alarm value for ±10 Volts is -10 V.
High Alarm Value. Specifies value above which alarm is triggered.
Default value is 0. Example: High alarm value for ±10 Volts is +10
V.
4. When finished making selections, click Generate.
The Configuration Text dialog appears, with your configuration settings
for each enabled channel.
User's Manual Pub. 0300306-01 Rev. A
3-7
