3-4
Chapter 3: Configuring the 2085sc-IF16 Using CCW
User's Manual Pub. 0300306-01 Rev. A

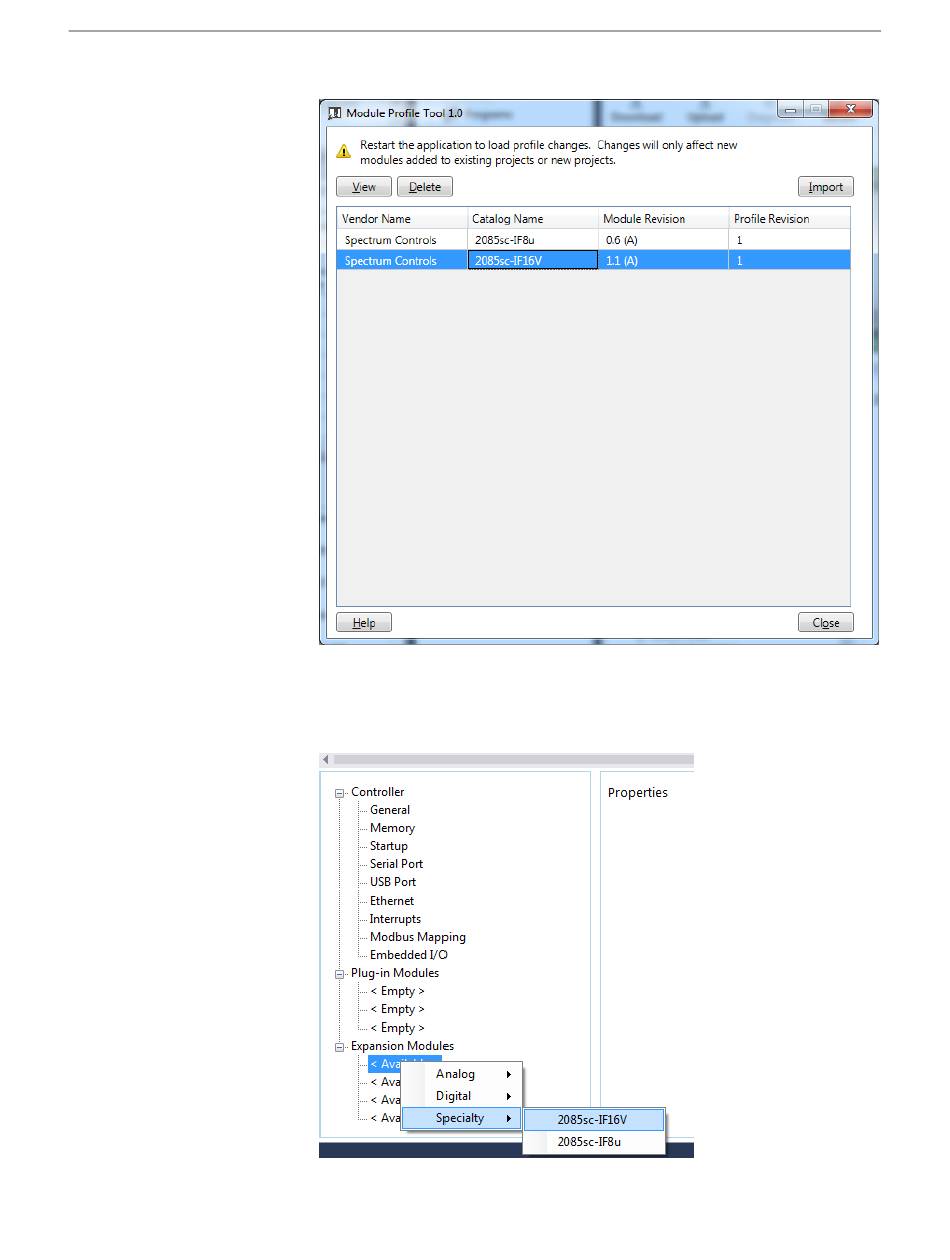

5. The selected profile appears in the Module Profile Tool dialog:
6. Click Close to exit and re-open the CCW software so that the software
recognizes the imported Add-On profile.
7. Navigate to the Micro850 project of interest, and from Expansion
Module, select Available:Specialty:2085sc-IF16V:
