Chapter 3: Configuring the 2085sc-IF16 Using CCW
Column
#
Name
Value
Units
Internal Value
Default
User's Manual Pub. 0300306-01 Rev. A

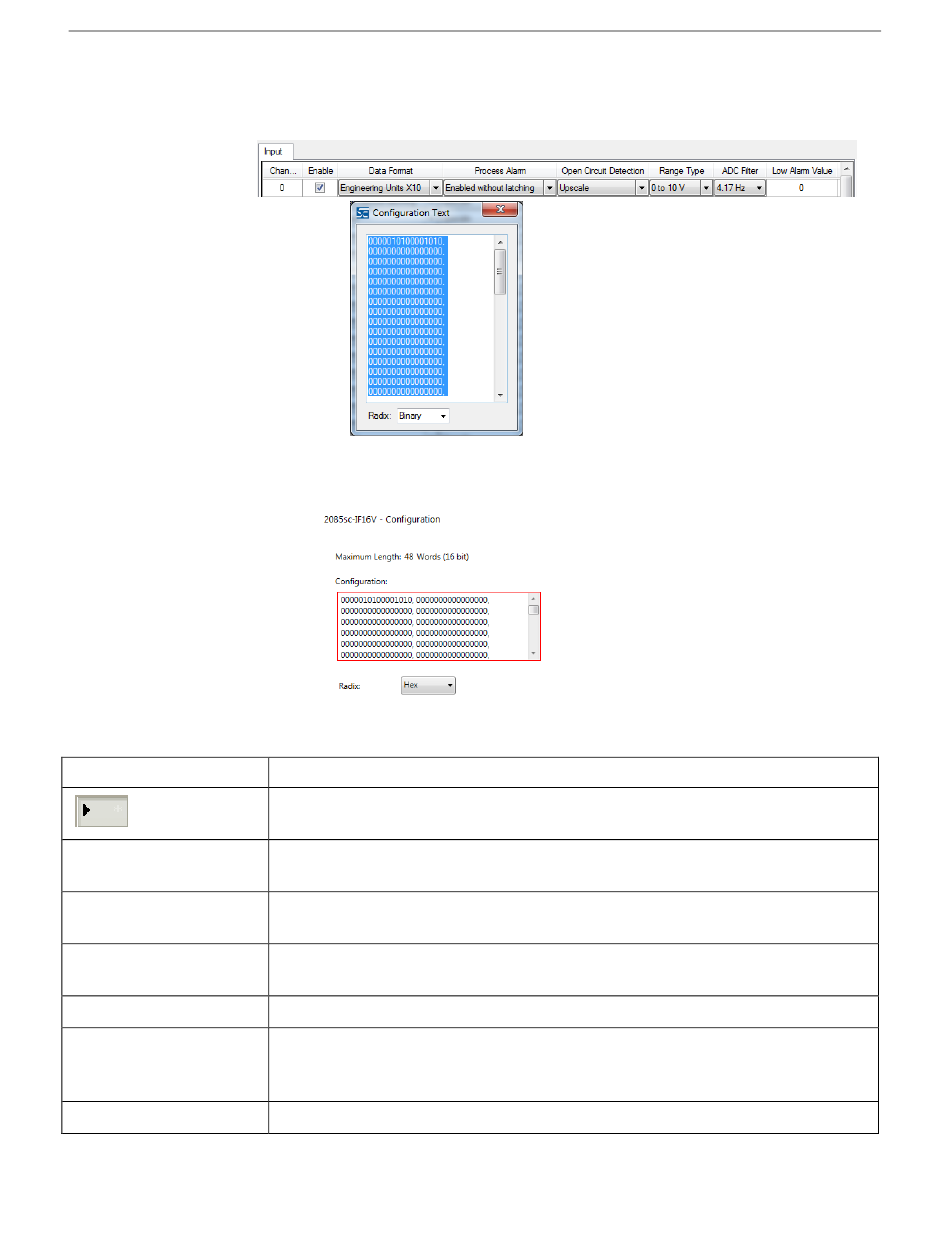

The example below shows example channel 0 selections in the utility and
the associated channel 0 configuration text generated from those
selections:
5. To copy the generated values into the CCW Configuration: field, click
Copy to CCW. The software copies the configuration and shows it in
the CCW Configuration field:
6. Download and run.
The following description of columns is copied from CCW Help.
Description
Currently selected parameter. As a device is monitored and updated, an
asterisk (*) appears in this column.
Parameter number. Click the column header to list the data in the column in
ascending (default) or descending order.
Short name of the parameter. Click the column header to list the data in the
column in ascending (default) or descending order.
The current value of the parameter. Writable parameter values are shown
with a white background and can be changed directly in this field.
The measurement units used for this parameter (examples: Volts and Amps).
The unscaled value used internally in the device and by AC drives that
communicate with the device. The information in this field provides the
scaling information to calculate Internal Value from a scaled value.
The initial value of a parameter as defined at the factory.
