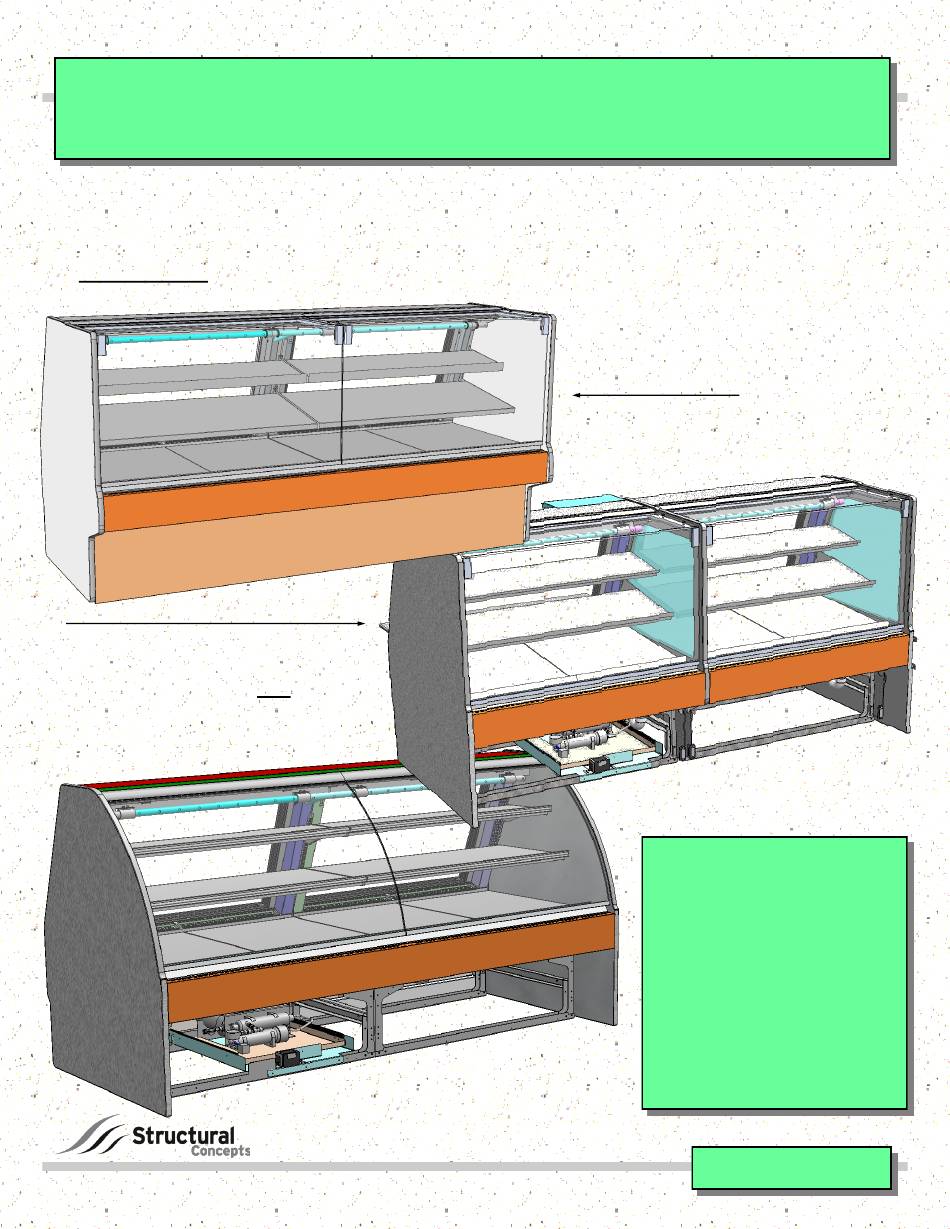

G-SERIES
Atmosphere Meat and Seafood Multi-Tiered Cases With Atmosphere Nebulization Cool Vapor System
> Vertical or Curved Front Glass > Glass Raisable At Front w/Rear Hinges > Remote Cases Only
> Rear Flip-Down Cutting Board
> Applicable To Models GMDSV4RA.7613, GMDSV8RA, GMDSV8R.7306, GMDSV12RA and GMDSV12R.7306
> Also Applicable To Similarly Designed Merchandisers
> CDR7585 Option - Rear Slide-Out Filtration & Electrical Components (Available on Wide Range of Models)
Model GMDSV4RA.7613 / Left and Right
Hand Units / Center Divider / Standard Rear
Slide-Out Filtration System / Standard Rear
Electrical Components. Note: Model
GJDSS8RLB Must Be Adjoined To Case
Front At Assembly In The Field.
G-Series_Atmosphere_Meat-Seafood Multi-Tiered Case_Operating Manual_20-85829.pub ||| Rev K Date: 03.08.2021
CAREFULLY FOLLOW THESE INSTRUCTIONS
Model GMDSV8R.7306 /
Curved, Hinged Front Glass
888 E. Porter Road ∙ Muskegon, MI 49441
Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
Atmosphere
®
Multi-Tiered Case
Installation & Operating Manual
Model GMDSV8R.7306
Meat & Seafood
Important!
See Structural Concepts
Cleaning, Maintenance
and Troubleshooting
Guide (P/N 20-84857)
For Detailed
Information on Cleaning,
Maintenance &
Troubleshooting of
These Units.
P/N 20-85829
