CyberData SIP Paging Server Connecting
To a bogen pcm2000 zone paging system
Hide thumbs
Also See for SIP Paging Server:
- Configuration manual (58 pages) ,
- Connecting (6 pages) ,
- Connections (2 pages)
Related Manuals for CyberData SIP Paging Server
Summary of Contents for CyberData SIP Paging Server

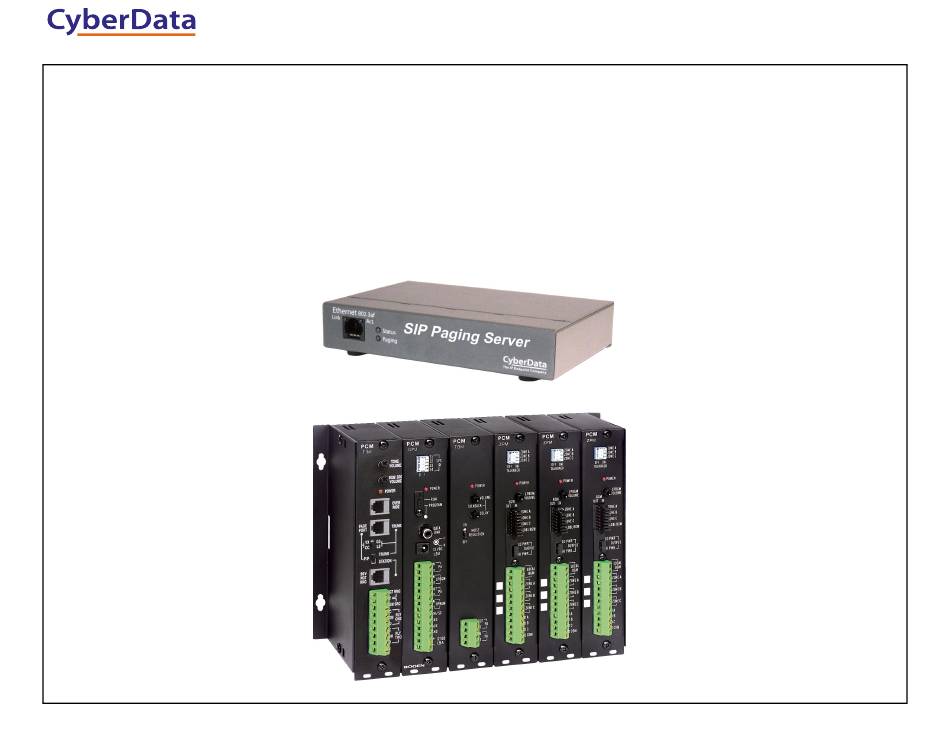

- Page 1 The IP Endpoint Company Connecting a CyberData SIP Paging Server to a Bogen PCM2000 Zone Paging System 931023B...
- Page 2 Which version of the Bogen PCMTIM do I have? Old PCMTIM (Use pages 3 and 4) New PCMTIM (Use pages 5 and 6) POWER TONE VOLUME BGM SRC VOLUME NIGHT RING LINE OVER RIDE GND ST 931023B...
- Page 3 Bogen PCM2000 Zone Paging System with Old PCMTIM to SIP Paging Server Connections—Contact Closure Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Server Connections Power off PCM system to set dip switches S2, S3 POWER and S7 to the right and S1, S4, S5 and S6 to the left...
- Page 4 Bogen PCM2000 Zone Paging System with old PCMTIM to SIP Paging Adapter Connections—VOX Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Server Connections Power off PCM system to set dip switches POWER 1 and 7 to the right and 2 through 6 to the left...
- Page 5 Bogen PCM2000 Zone Paging System with New PCMTIM to SIP Paging Server Connections—Contact Closure Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Server Connections PAGING PORT CONTACT CLOSURE TRUNK/PAGE PORT 6 - Not used 5 - Contact Closure...
- Page 6 —VOX Configuration Bogen PCM2000 Zone Paging System with New PCMTIM to SIP Paging Server Connections The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Server Connections PAGING PORT TRUNK/PAGE PORT 6 - Not used 5 - Contact Closure 4 - Dry audio (T)
