Operate
8

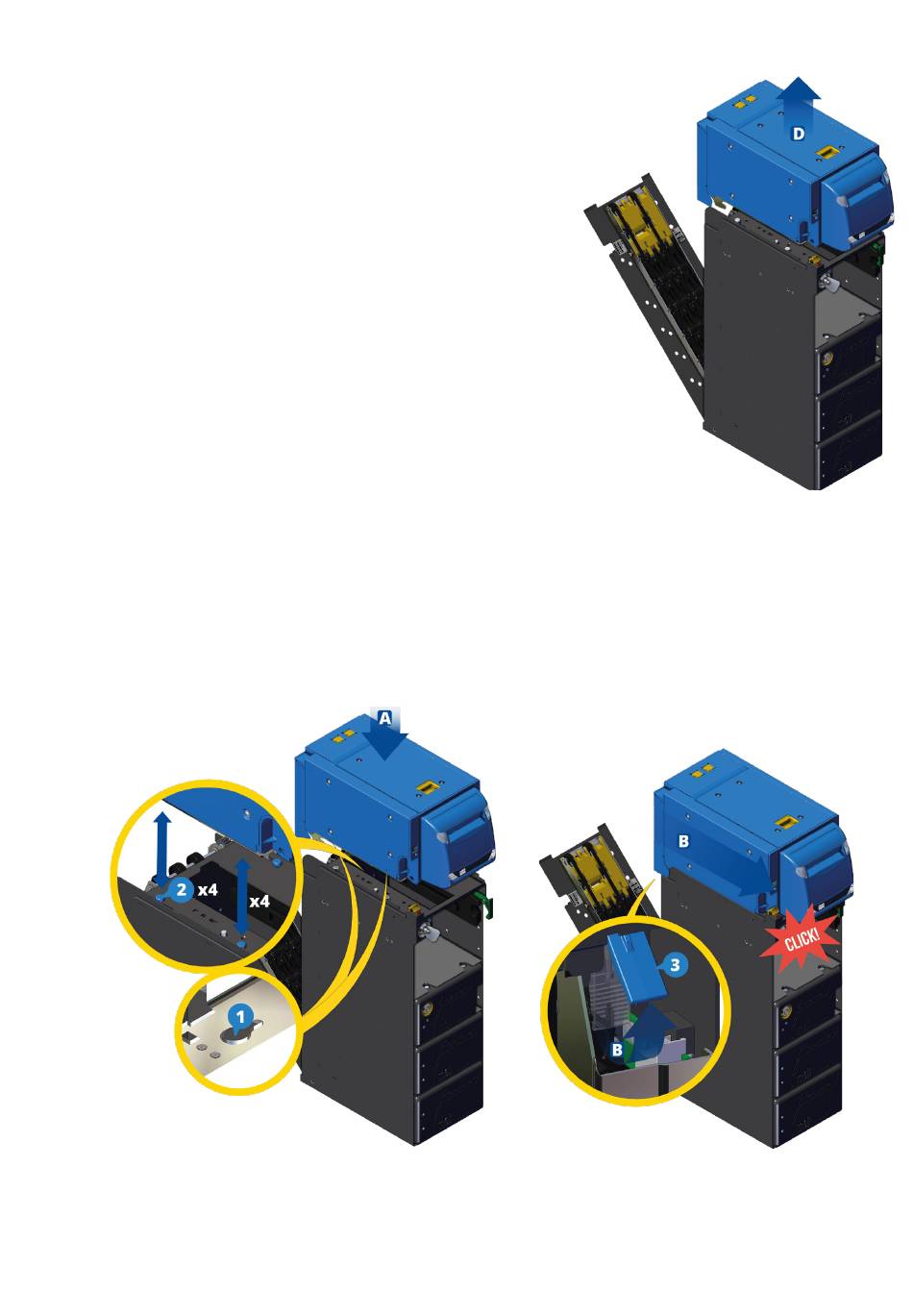

Detach acceptance module with care [D].
To reinstall the acceptance module with the green shockblocker lever still pulled
out:
1
Carefully place acceptance module on the top of the chassis [A] with its hood outside the chassis and its slotted holes [1] aligned with
the chassis' pan-head pins [2].
2
Lift rear green lever [3], hold it [B]and simultaneously slide acceptance module towards the front as far as it will go and until it clicks
into place [B].
The acceptance module is locked in place now.
30
Fig. 55: Aligning acceptance model with chassis
BNA6 Advance & BNR Advance Note Validator and Note Recycler
Published by CPI
Fig. 54: Removing acceptance module
Fig. 56: Locking acceptance module into place
