CPI R900 Install Manual

R900 Install Guide

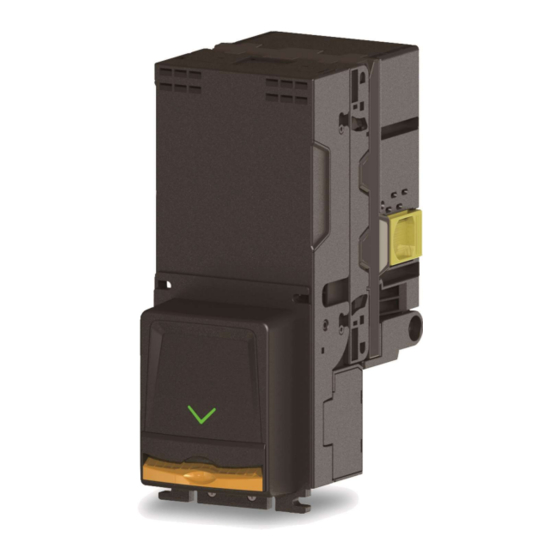

The R900 bill validator is designed to fit into the standard bill acceptor opening
in most machines and can be mounted on existing studs or a mounting bracket
Features
- Four ways bill acceptance
- Multi-width bill handling mechanism
- Security cashbox (lockable) available
- 1K notes cashbox available
Interface
- The R900 bill validator operates via various interfaces
- MDB, MDBS, CCNET and ccTalk protocol are available
Operating Voltage
- 34VDC/24VDC for MDB interface
- 34VDC/24VDC for MDBS interface (MDB Sleep Mode)
- 12VDC for CCNET interface (RS232C base)
- 12VDC for ccTalk interface (RS232C base)
INSTALLATION
Before installation, remove the R900 bill validator from the packaging for any physical damages. If damaged, contact customer service
1. Turn off power from the vending machine.
2. Mount the R900 bill validator on the mounting studs, through the opening in the front of the vendor and secure using the included
hardware.
3. Connect the R900 bill validator to the interface harness. Apply gentle pressure to connect; the pins will bend if forced.
4. Turn on power to the vending machine.
5. Check the arrow LED on the front of R900. The LED should be flashing. In some cases, the machine door must be closed first.
6. Once the LED is flashing, test the validator with appropriate bill.
a. Insert appropriate bill and confirm that it stacks and credit is given
b. Repeat this process for any other enable bills.
7. When your test is completed, remove the test bills from the bill magazine.
The installation is now complete. Refer to the other sections of this guide to configure the device, if necessary.
