About note validator and note recycler

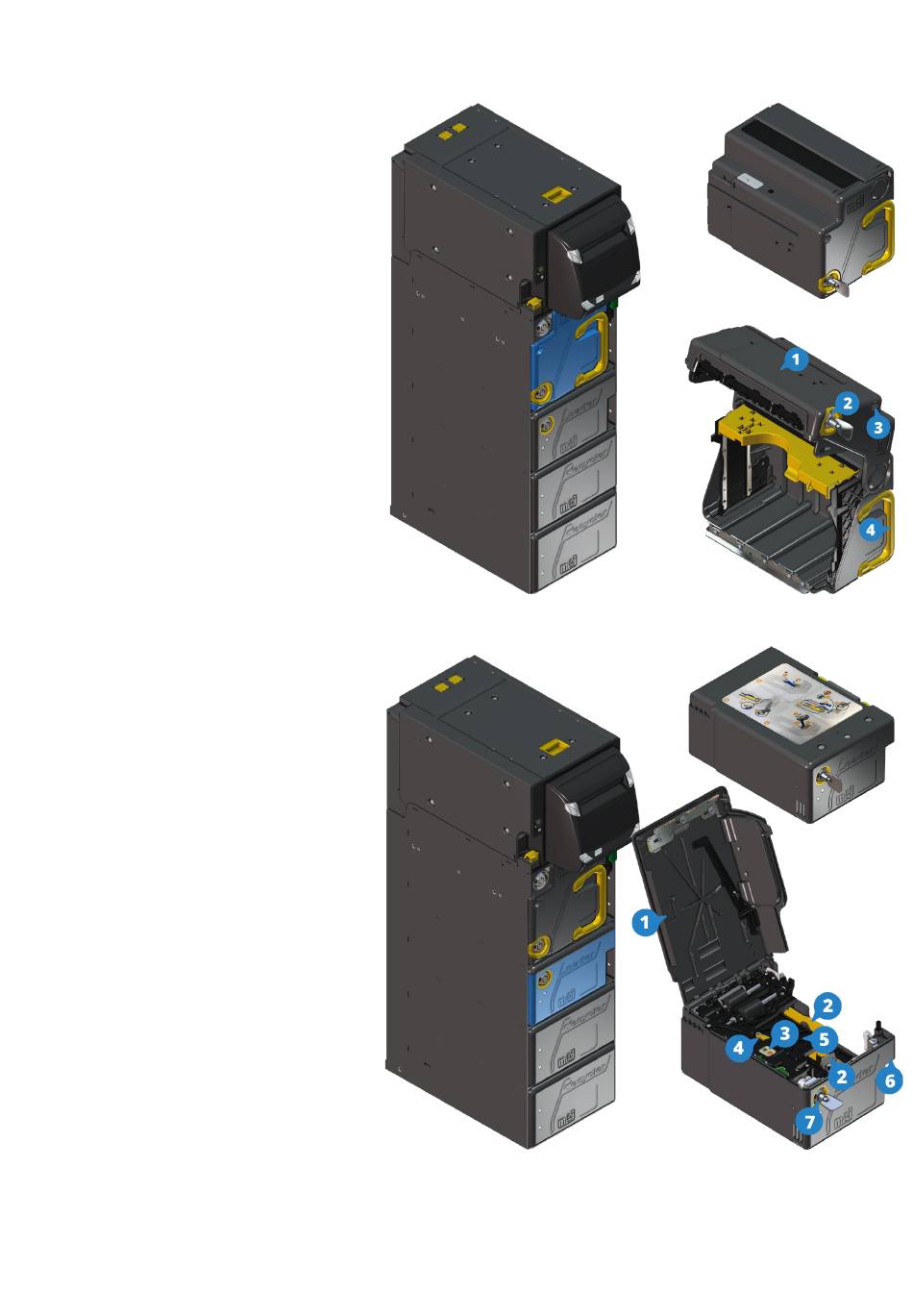

Cash box
1. Cash box cover
2. Lock – open cash box
3. Indicator – ready for insertion state
4. Handle – remove cash box
Loading module (note recycler only)
1. Loading module cover
2. Banknote guide flap/limiter
3. Level flag
4. Latch – lift maximum level detection plate
5. Maximum level detection plate
6. Handle – remove loading module
7. Lock – open loading module
12
BNA6 Advance & BNR Advance Note Validator and Note Recycler
Fig. 23: Note recycler cash box
Fig. 24: Note recycler loading module
