CPI CashCode SLB-1045 User Manual

Single width bulk loading validator with extended mounting bracket and adapter

Advertisement

Quick Links

5. General Specifications:
CURRENCY AND INTERFACES
ELECTRICAL SPECIFICATION:
Operating
Maximum Operating
Voltage
Current
12 V DC
Idle: 300 mA
Bill processing: 1.3 A
5 V DC
Use only current limiting CSA or UL recognized CLASS 2 Power Supply.
OPERATING TEMPERATURE:
TOTAL WEIGHT:
FEATURES:
ENCLOSURE: SL Bill Validator with Mounting Bracket
User's Guide
Software description
 2017 Crane Payment Innovations
See Software Description document
Maximum Current
Short spike (50 mS or less): 6.0 A
Long spike (200 mS or less): 4.0 A
Stable average: 200 mA
-0 to +50 degrees Celsius
4.0 kg
Bulk Loading Head, Standard Optics,
Tract width 71mm, Mounting Bracket's
Tract with Extended Exit Path,
Adapter
Crane Payment Innovations
www.CranePI.com
PT# UG-SLB-1045_G1 03/17

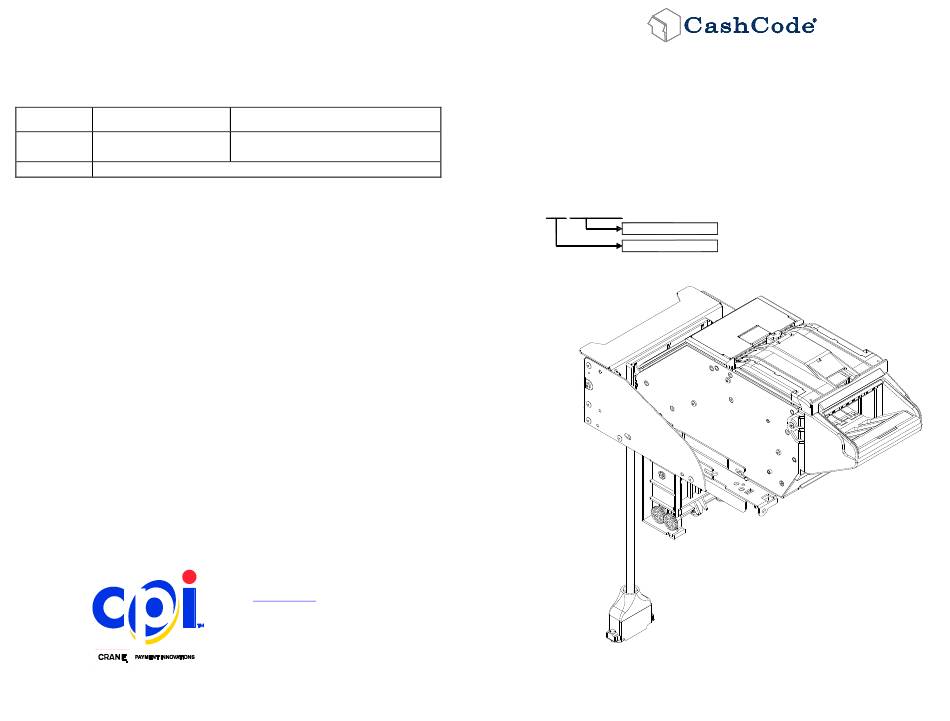

Single Width Bulk Loading Validator with Extended
Mounting Bracket and Adapter
SLB-1045
Hardware part #
The Part Number on the Label includes Hardware
Part Number and Software Part Number.
Example
SLB-1045 AAXX-XXXX
Software Part Number
Hardware Part Number
SL Bill Validator
User's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the CashCode SLB-1045 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CPI CashCode SLB-1045

  • Page 1 5. General Specifications: SL Bill Validator CURRENCY AND INTERFACES See Software Description document User’s Guide Single Width Bulk Loading Validator with Extended ELECTRICAL SPECIFICATION: Mounting Bracket and Adapter Operating Maximum Operating Maximum Current Voltage Current SLB-1045 12 V DC Idle: 300 mA Short spike (50 mS or less): 6.0 A Hardware part # Bill processing: 1.3 A...
  • Page 2 1. Typical DIP Switches Setting 3. Power connections To access switches open the back lid. Switches are located on the right side of +12 V lines must be connected together directly at the connector. the lid, as observed from the bezel. The “up” state is defined as the switch position closer to the top cover of the lid.
