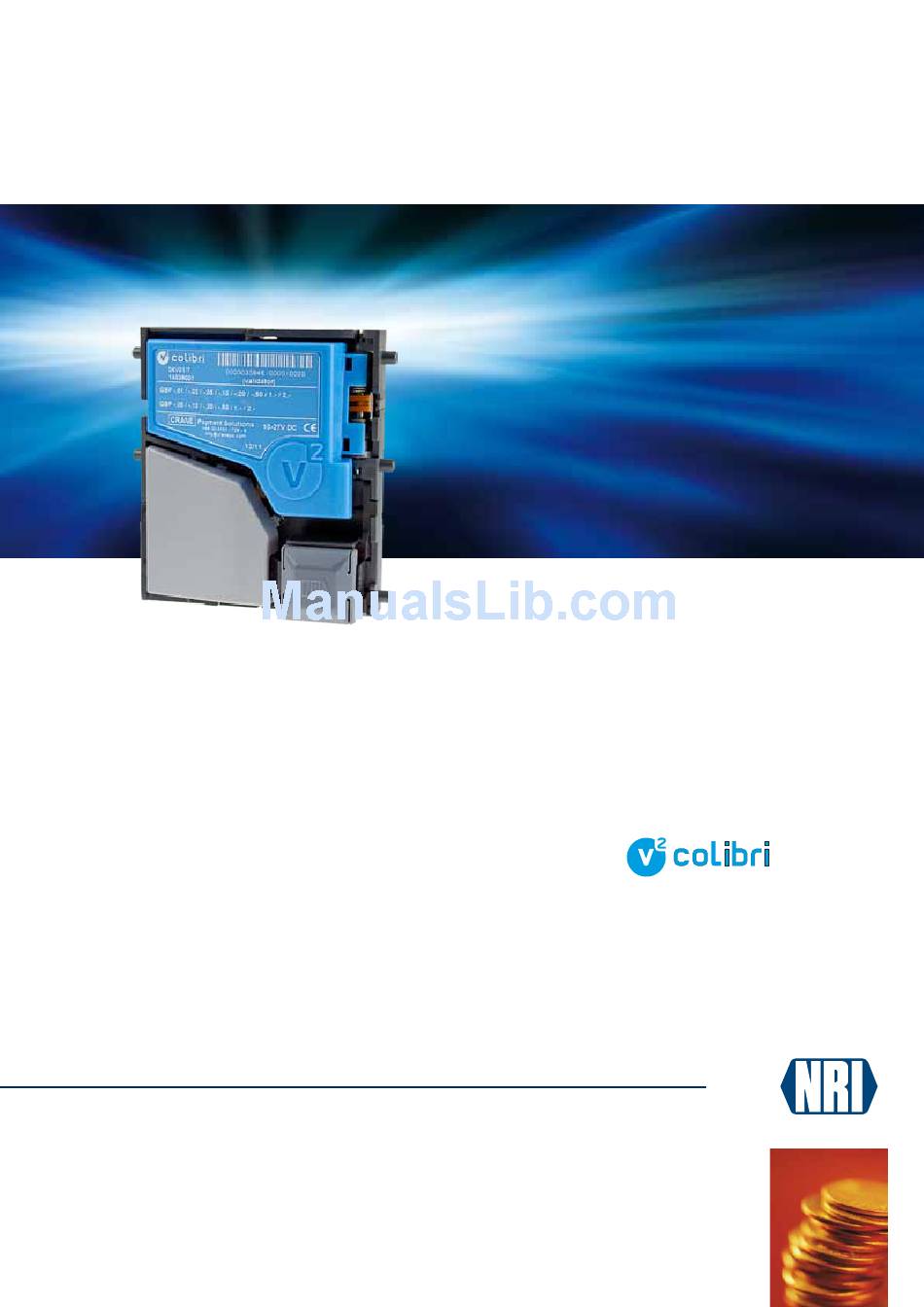

- Page 1 Operating Instructions 3.5“ Coin Validator with serial ccTalk interface 08.12 WP/Hns/Roe BA_v2_colibri_ccTalk_EN_1-0 Crane Payment Solutions GmbH | Zum Fruchthof 6 | 21614 Buxtehude | Germany Web: info@craneps.com | www.craneps.com | Phone: +49 (0) 41 61-729-0 | Fax: +49 (0) 41 61-729-115...
-
Page 3: Table Of Contents
able of conTenTs Table of contents Revision protocol About ... About these operating instructions 2.1.1 Text conventions 2.1.2 Additional useful technical documentation About the v colibri 2.2.1 colibri properties 2.2.2 Models and operating modes 2.2.2.1 Coin entry and return area 2.2.2.2 Communication protocol 2.2.2.3... - Page 4 able of conTenTs Function Coin acceptance and coin channels 5.1.1 Quick coin acceptance in Casino mode Single or double block data-management Accepted coin sensor String recognition Control for external sorting device 5.5.1 Sorting principle 5.5.2 Sorting using NRI 3-fold sorter s SSD-3000 Coin inhibition/activation of narrow coin channels 5.6.1...
- Page 5 able of conTenTs Maintenance and service Cleaning the coin runway Troubleshooting What can be set later? 9.1 Service and configuration tools 9.1.1 WinEMP PC configuration application 9.1.2 On-site service tool HENRI Which device functions can be set? Technical data 10.1 Device data 10.2 Interfaces 10.2.1 colibri – machine 10.2.1.1 Pin assignment 10.2.1.2...
-
Page 7: Revision Protocol
evision pRoTocol Revision protocol Version Revision Chapters/sections concerned BA_v2_colibri_ccTalk_EN_1-0... -
Page 8: About
bouT About ... This chapter it is intended to give you an initial overview of the advantages and options of the colibri coin validator with serial ccTalk interface. The first section, however, is designed to help you navigate easily within these operating instructions. About these operating instructions These operating instructions describe the design and operation of the electronic 3.5“ v colibri coin validator with serial ccTalk interface. Afterwards, chapters 6 and 7 explain the necessary steps for starting up and operating the coin validator. -
Page 9: Additional Useful Technical Documentation
bouT 2.1.2 Additional useful technical documentation Apart from these operating instructions, there is further documentation for the v colibri. You can download all the documentation PDF files by visiting www.craneps.com. About the v colibri The v colibri coin validator with a serial ccTalk interface in the standard 3.5“ format is based on the tried and tested features of the G-13.mft and also uses the patented multi-frequency measuring technology (MFT) for reliable coin validation. -
Page 10: Models And Operating Modes
bouT • Options – Top or front entry version – MINI or MIDI front plate – SSD-3000 3-fold standard sorter or HSD-3000 3-fold high-speed sorter – Licence for updating the complete ccTalk coin and device configuration on machines with PC-based control (remote data block upload) – ACMI write protection – Additional tamper protection by protocol encryption: BNV (Bill Note Validator encryption), DES (Data Encryption Standard) 2.2.2 Models and operating modes... -
Page 11: High-Speed Acceptance (Casino Mode)
bouT 2.2.2.3 High-speed acceptance (Casino mode) It is possible to run the v colibri ccTalk in what is known as Casino mode if it is used in gaming machines and needs to accept coins particularly quickly (up to 6 coins per second). In Casino mode, the v colibri runs in favour of fast coin acceptance without accepted coin sensing (cf. -
Page 12: Safety Instructions
afeTy insTRucTions Safety instructions Before starting up the device for the first time, please read these instructions and in particular the safety instructions carefully at least once. This is to ensure that you have understood the contents of this manual and how to operate the coin validator. Proper use The v colibri electronic 3.5“ coin validator with serial ccTalk interface is for use in entertainment, vending and service machines with a serial ccTalk interface and is intended to check the coins that are inserted in the machines for specific properties and to either accept or reject them. Use the coin validator exclusively for this purpose. -
Page 13: Design
esign Design This chapter describes • the main component parts of the v colibri and • all parts required for the operation of the coin validator. Overview of the • top entry version and • front entry version with optional front plate 4.1.1 colibri as top entry version (standard) Fig. -
Page 14: Colibri As Front Entry Version
esign 4.1.2 colibri as front entry version MINI MINI Fig. 2: Design – v colibri as a front entry version with MINI and MIDI front plate 8 Interface – external 3-fold -sorter 1 Coin insert funnel 9 Label – switch block/coin channel assignment 2 Coin return button (cf. -
Page 15: Coin Path
esign Coin path Cash-box/ Return sorting device Cash-box/ Return sorting device Fig. 3: Coin path of top entry version, standard coin outlet (on the left) and inverted coin outlet (on the right) Cash-box/ sorting device Return Fig. 4: Coin path of front entry version BA_v2_colibri_ccTalk_EN_1-0... -
Page 16: Nameplate
esign Nameplate The nameplate [Fig. 1/4]/[Fig. 2/4] shows the characteristic data of the device like the device series, type and operation as well as the customer‑specific currency and coin programming: 36B26/7 0000036006/0000/0020 35039003 |ccTalk| GBP 2,- / 1,- / -,50 / -,20 / -,10 / -,10N2 / -,05 / -,05N2 EUR 2,- / 1,- / -,50 / -,20 / -,10 / -,05 10-27V DC +49 (0) 4161 / 729 - 0 info@craneps.com... -
Page 17: Switch Blocks
esign Switch blocks On the back of the coin validator, there are two switch blocks S1 and Inhibit channel 1..8 CASINO Mode S2 [Fig. 1/13]/[Fig. 2/13] that each have ten DIL switches S1.1-10 and Block 1 Block 0 S2.1–10. Using the DIL switches, you can set specific device functions: NORMAL Mode Open channel 1..8 TEACH Mode Inhibit channel 9..16 To find out how to set the individual functions with the help of the Teach band wide normal switch blocks, refer to Chap. -
Page 18: Return Lever And Return Button
esign Return lever and return button You activate the return lever [Fig. 1/2] at the top of the devices using the return button on the machine if you want the machine to return coins or to remove a jam caused by coins that have got stuck, for example. Actuation of the return lever opens the measurement and validation area of the coin validator so that all objects in the coin validator are directed to the return area. Devices with front entry via a front plate do not have a return lever. With these devices, you open the measuring and validation area by pressing the return button [Fig. 2/2] on the front plate. Interfaces For more information on the machine and sorting interface, [Fig. -
Page 19: Function
uncTion Function This chapter describes how the coin validator works: • Coin acceptance and coin channels • Single or double block data-management • Accepted coin sensor • String recognition • Control for external sorting device • Coin inhibition/activation of narrow coin channels • Teach mode Coin acceptance and coin channels For coin acceptance the coin validator has 32 "memory blocks"... -
Page 20: Quick Coin Acceptance In Casino Mode
uncTion 5.1.1 Quick coin acceptance in Casino mode If you are using the v colibri in gaming machines, the device can be switched to Casino mode so that inserted coins can be accepted faster (up to six coins per second instead of two per second) (cf. Chap. 7.4 Activating Casino mode, p. 34) Single or double block data-management At the factory, the device is programmed on a customer‑specific basis whether the 32 coin channels of the coin validator are managed in one memory block or, divided up into 16 channels each, in two memory blocks (double block data‑management). -
Page 21: Control For External Sorting Device
uncTion Control for external sorting device To route the accepted coins either to the cash‑box or to change tubes or hoppers, for example, you can fit the coin validator with the NRI s SSD-3000 3-fold sorter or another sorting device. 5.5.1 Sorting principle The sorting gates are controlled by two sorting lines on pins 3 and 4 of the 10-pin connector [Fig. 1/8]/[Fig. 2/8] on the back of the device. You set which coin is to be sorted on which sorting line by means of the machine's controller. -
Page 22: Coin Inhibition/Activation Of Narrow Coin Channels
uncTion With all four versions of the 3‑fold sorter, you can distribute the individual coin types to the three sorting chutes regardless of the coins' dimensions. Each chute can be defined as a cash‑ box chute. The following table lists the sorting line and ccTalk sorter path that must be addressed for sorting to be carried out into a specific sorting chute: Sorting chute Sorting line ccTalk sorter path LEFT... -
Page 23: Inhibiting All Coins/Individual Coin Channels Via Machine Control System
uncTion 5.6.1 Inhibiting all coins/individual coin channels via machine control system The control system can • inhibit coin acceptance completely. In this case the coin validator does not accept any coins. • inhibit all coin channels of a certain coin, e.g. if there is no more change in an external payout unit or in case of high fraud hazard. • inhibit the normal coin channel of a certain coin so that this coin is accepted only in the narrow channel. -
Page 24: Start-Up
TaRT Start-up This chapter describes how you • start up the v colibri in a machine • mount the NRI 3-fold sorter s SSD-3000 When carrying out any assembly and installation work on the coin vali- dator and machine, always observe the following safety instructions: • The coin validator must only be connected by a trained electrician. -
Page 25: Mounting The 3-Fold Sorter S
TaRT Mounting the 3-fold sorter s SSD-3000 ... If you want to operate the v colibri with the s SSD‑3000 sorter, you mount it on the top or front entry version using a special bracket: 6.2.1 ... on the v colibri top entry version There are three different versions of the NRI 3-fold sorter for the top entry version of the v colibri depending on the machine environment. - Page 26 TaRT Fig. 10: Connecting the top entry version of the v colibri to the s SSD-3002 3-fold sorter BA_v2_colibri_ccTalk_EN_1-0...
-
Page 27: On The V 2 Colibri Front Entry Version
TaRT 6.2.2 ... on the v colibri front entry version If necessary, fasten the retaining plate [Fig. 11/1] with the two screws [Fig. 11/2] to the sorter [Fig. 11/3]. Remove the screw [Fig. 11/4] from the coin validator. Using the retaining plate [Fig. 11/1], plug the sorter from the right onto the coin validator. Fasten the sorter [Fig. 11/3] on the coin validator with the screw [Fig. 11/4]. Connect the sorter [Fig. -
Page 28: Operation
peRaTion Operation This chapter describes how to operate the coin validator, i. e. set certain functions on the coin validator: • Selecting a memory block • Inhibiting coins/activating narrow coin channel • Teaching coin channels in teach mode • Selecting Casino mode The settings which are made directly on the coin validator are described. To find out how to make the settings using the WinEMP PC configuration software, refer to the separate guide (cf. Chap. 9 What can be set later?, p. 37) The exact function of the settable device options is described in Chap. -
Page 29: Inhibiting Coins/Activating Narrow Coin Channel
peRaTion Inhibiting coins/activating narrow coin channel ... Using the two switch blocks on the coin validator, you can individually inhibit on site each of the 16 coin channels of the activated memory block or each of the coin types assigned to specific coin channels, i.e. these inhibited coin channels are no longer used for payment on the machine. • Accept coin without limitation: All the assigned coin channels are enabled • Limit acceptance band: Normal coin channel is inhibited • Inhibit coin: All the assigned coin channels are inhibited The 16 DIL switches inhibit the following coin channels: 7.2.1 Inhibit switch functions –... - Page 30 peRaTion If all coins are to be accepted for payment on the machine, DIL switches S1.1‑8 and S2.1‑8 on both switch blocks are in the bottom position (set to OFF). If you want to inhibit a coin channel, you only need to set the associated DIL switch upwards to ON. Example The coin validator is not to use coin channels 3 and 10 for acceptance any more so that coin channels 3 and 10 must be inhibited.
-
Page 31: Teaching Coin Channels In Teach Mode
peRaTion Teaching coin channels in teach mode ... (not for ACMI version) You can assign a token or a new coin to a coin channel either using the switch blocks on the coin validator or by means of ccTalk commands and a service menu of the machine. 7.3.1 ... using the switch block on the coin validator To generate new acceptance bands, you can teach up to eight coin channels (teach channels) by means of the bottom switch block on the coin validator. - Page 32 peRaTion To assign a coin type/token to coin channel 9‑16 or 25‑32, proceed as follows: If you use the bottom switch block to inhibit individual coins, make a note of the current switch settings so that you can restore them afterwards for normal operating mode. Unhook the coin validator from the machine. Set DIL switches S2.1-10 downwards to OFF. Set DIL switch S2.9 upwards to ON.
-
Page 33: Using Cctalk Commands/Machine Service Menu
peRaTion To save with the wide acceptance band: Set an additional DIL switch, S2.10, upwards to ON. The acceptance band has been widened. Only now set DIL switch S2.9 back downwards (to OFF). The system indicates successful saving with a single actuation of the acceptance gate and an error at saving with a double actuation (a brief clicking noise in each case) if the acceptance band of the inserted coins and that of an already programmed coin channel overlap or the generated measured values are too different and the tolerances... -
Page 34: Activating Casino Mode
peRaTion Activating Casino mode If you want to operate the v colibri in Casino mode, you can change the operating mode by simply resetting the top switch block: Set DIL switch S1.9 upwards to ON. The device now operates in Casino mode with fast coin acceptance of five to six coins per second. Tripping time of the acceptance gate In Casino mode, the v colibri cannot use the accepted coin sensor in favour of fast coin acceptance... -
Page 35: Maintenance And Service
ainTenance anD seRvice Maintenance and service This chapter describes how to • clean the v colibri and • remedy the cause of malfunctions. Cleaning the coin runway On their way through the coin validator the coins may leave residues on sensitive parts which must be removed from time to time to ensure reliable coin acceptance and rejection. Apart from this, no further maintenance work is required. -
Page 36: Troubleshooting
ainTenance anD seRvice Troubleshooting Malfunctions can occur in all electronic devices. These do not always have to be faults in the device. In many cases improper connections or incorrect settings are the reason. Therefore: please check first of all whether the malfunction can simply be remedied using the following table. Problem Possible cause Remedy, hints • Connect the cable correctly to the coin validator and the Coin validator does machine... -
Page 37: What Can Be Set Later
haT can be seT laTeR What can be set later? In this chapter, you will find out general information about the NRI service and configuration tools for the v colibri and what device functions you can retrospectively configure (cf. Chap. 10.3 Accessories, p. 44). In order to meet the requirements of the Italian gaming machine act subsequent configuration of the ccTalk ACMI model is impossible. If you want to change the factory settings please contact our sales representative. - Page 38 haT can be seT laTeR • Sorting via – Assigning the sorting control line/sorter path and coin type – Definition of a sorting time • Long-term coin deactivation • Teach mode via – Activating/deactivating teach mode – Activating/deactivating teach channels • New coins/tokens (generation of a new acceptance band and assignment of the coin/sorting data) • Complete data block upload for current coin and device data BA_v2_colibri_ccTalk_EN_1-0...
-
Page 39: Technical Data
echnical DaTa Technical data This chapter contains • All relevant v colibri data • details of machine and sorting interfaces • Information about v colibri accessories 10.1 Device data Supply voltage 10V to 27V DC Current consumption in Standby mode: <... -
Page 40: Interfaces
echnical DaTa 10.2 Interfaces On the next few pages, you will find the pin assignments and v colibri‑specific ccTalk commands/ settings and error messages for connecting the coin validator to • the machine • an external 3-fold sorting device 10.2.1 colibri – machine 10.2.1.1 Pin assignment Pin Function Level Supply 12V DC – – – – Data active low You will find a detailed description of the serial ccTalk interface with different connection diagrams in the Generic Specification "cctalk Serial Communication... - Page 41 echnical DaTa Optional ACMI deviations for Header Command Function, No. of data bytes [expected/returned] Italian gambling machine market [1/0] Bit 0: gate 0 (acceptance) Test solenoids Bit 1: gate 1 (internal sorter) Bit 2: gate 2 (internal sorter) Bit 3: gate 3 (internal sorter) [0/1] Bit 0: 1 = open escrow to cash box Test output lines...
-
Page 42: Cctalk Error Code Table
echnical DaTa Optional ACMI deviations for Header Command Function, No. of data bytes [expected/returned] Italian gambling machine market Modify default sorter path [1/0] Request default sorter path [0/1] Modify coin ID [7/0] no reply (Duration: 0.5..1.5s!!!) [1/6] Request coin ID e.g. -
Page 43: Cctalk Teach Mode (Not For Acmi Version)
echnical DaTa 10.2.1.5 ccTalk teach mode (not for ACMI version) Header 202 – Teach mode control Transmitted data: Position (1 byte) Received data: Position: Bit 0..6: Coin type (1..16) Bit 7: 0 = normal acceptance band 1 = wide acceptance band Position = 0 = abort teaching process Header 201 – Request teach status Transmitted data: None Received data: Byte 1 = No. -
Page 44: Accessories
echnical DaTa 10.3 Accessories To customize the v colibri to your own individual requirements, you can purchase the following accessories from Crane Payment Solutions: 10.3.1 Front plates Designation Order no. with white return button 5508 MIDI (black, 155 x 63mm) with black return button 19329 with white return button 22569 MINI (black, 120 x 60mm) with black return button 23097 10.3.2 Sorters... -
Page 45: Service Tools
echnical DaTa 10.3.3 Service tools Designation Order no. On-site service tool For updating the complete coin/device configuration HENRI for G-13.mft and firmware version (including license, USB‑PC cable, coin validator cable) Power supply 33573 In the machine, via HENRI transformer In the workshop, via 12V power supply with 26482 international adapters 34714 Cover PC application For diagnosing and updating individual settings or the complete coin/device... -
Page 46: Index
nDex Index 3-fold sorting device Chapter summary 8 Control 21 Cleaning 35 SSD-3000 21 Coin Interface 13 Inhibit 22 Procedure 29 Pinning 43 New 23 S2 SSD-3000 Procedure 31 Mounting 25 Coin acceptance 19 Inhibit 22 Accentuations in the text 8 Procedure 29 Acceptance band 19 Coin channels 19... - Page 47 nDex Data block number 16 Inhibit coins 22 Data block upload 38 Procedure 29 Date of manufacture 16 Insert funnel 13 Default settings after reset, ccTalk 42 Instructions 8 Design 13 Instructions, additional 9 Deviation, mounting position 39 Interface Device ccTalk 13 Dimensions 39 Label 16 Number 16 Service/configuration 13 Type 16 Sorting 13 Diagnostics 37 Internet address, NRI 9...
- Page 48 nDex Sorting Chute 13 PC programming station (WinEMP) 37 Function 21 Ordering code 45 Interface 13 Service interface 13 Order numbers 44 Pictographs in the text 8 Pinning 43 Pin assignment 40 S2 SSD-3000 Plug Function 21 ccTalk 13 Mounting 25 Service/configuration 13 Standard settings after reset, ccTalk 42 Sorting 13...
