CVM-E3-MINI
3�2�- INSTALLATION
The device must be installed on an electric panel or enclosure, attached to a DIN rail (IEC 60715).
The minimum recommended distance between rails for installing the CVM-E3-MINI device is 150 mm.
Terminals, opening covers or removing elements can expose parts that are hazardous
to the touch while the device is powered. Do not use the device until it is fully installed.
The device must be connected to a power circuit that is protected with gl (IEC 269) or M type fuses with
a rating of 0.5 to 2 A. It must be fitted with a circuit breaker or equivalent device, in order to be able to
disconnect the device from the power supply network.
The power and voltage measuring circuit must be connected with cables that have a minimum
cross-section of 1mm
.
2
The secondary line of the current transformer will have a minimum cross-section of 2.5 mm
The temperature rating of insulation of wires connected to the device will be at minimum 62ºC.
3�3�- PANEL MOUNTING ACCESSORY (72 x 72 mm)
Note: The 72 x 72 mm panel mounting accessory is an accessory that is sold separately.
CIRCUTOR has a panel mounting accessory of the CVM-E3-MINI equipment so that it can be installed
on 72 x 72 mm panels.
shows the installation of the panel mounting accessory to the CVM-E3-MINI.
Figure 2
Disconnect all power supplies and measuring equipment from the device before carry-
ing out the installation of the panel mounting accessory.
Instruction Manual

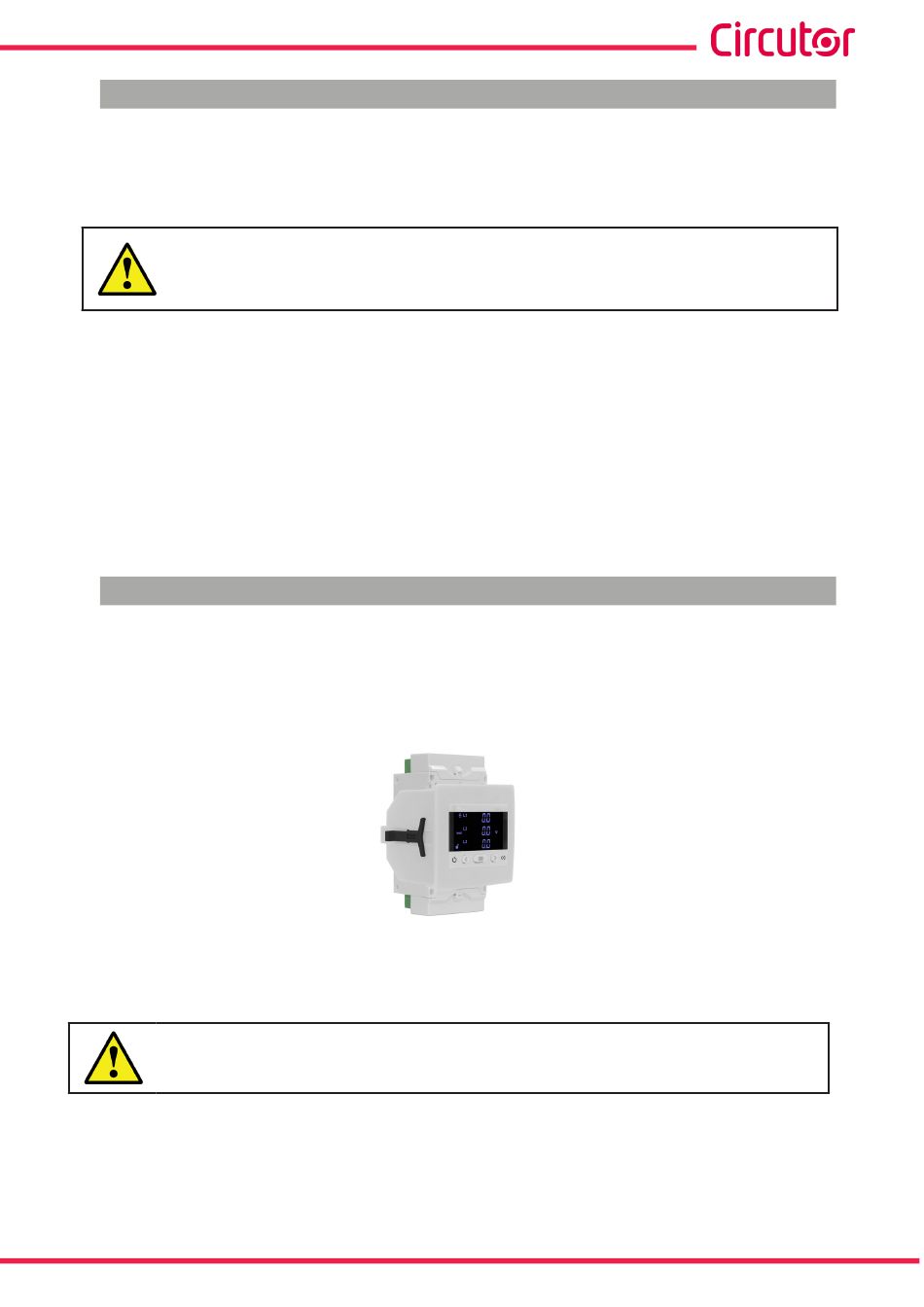

Figure 1: CVM-E3-MINI with panel mounting accessory�
.
2
11
