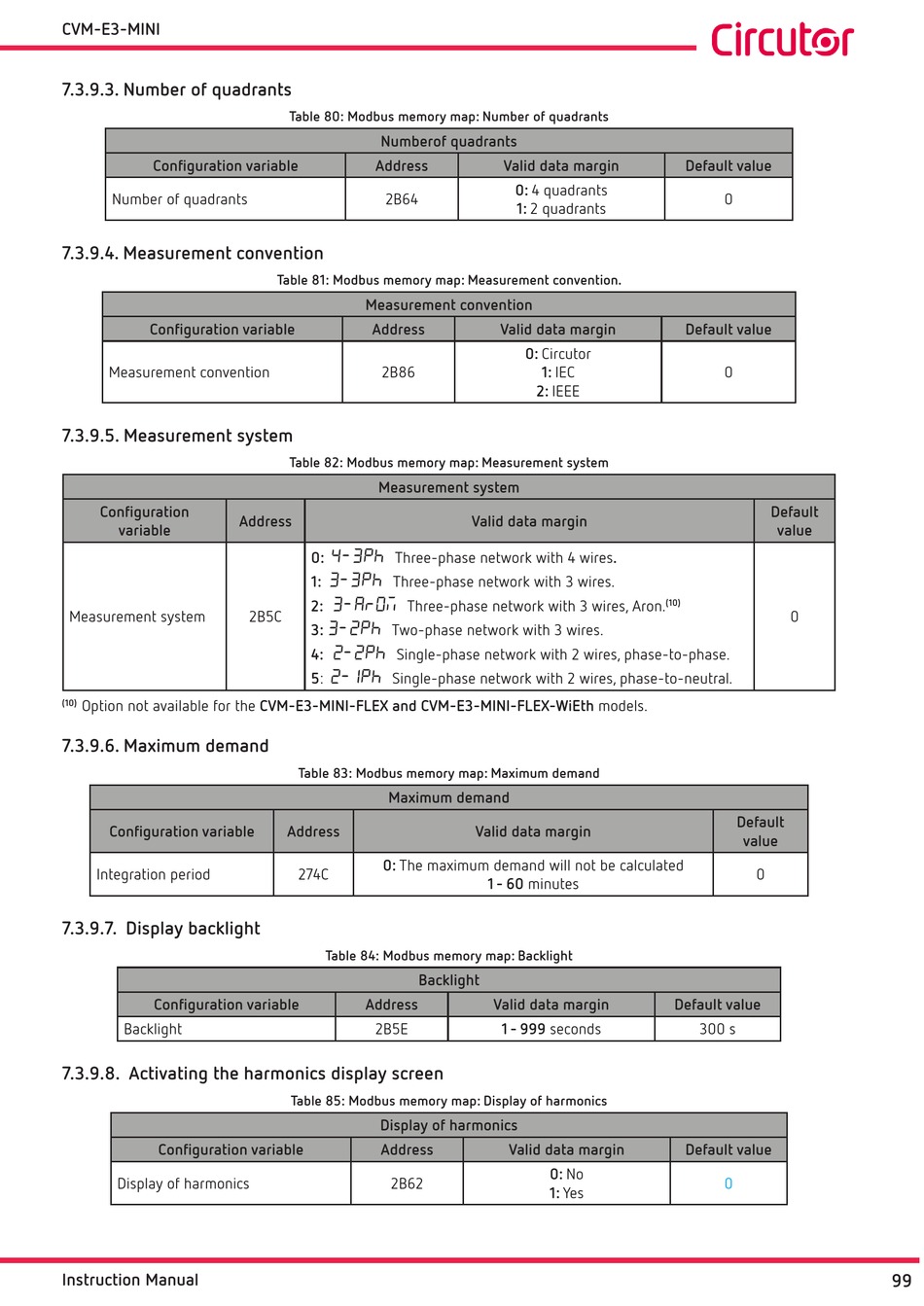

Circutor CVM-E3-MINI Instruction Manual page 99

CVM-E3-MINI
7�3�9�3� Number of quadrants
Configuration variable
Number of quadrants
7�3�9�4� Measurement convention
Configuration variable
Measurement convention
7�3�9�5� Measurement system
Configuration
variable
Measurement system
Option not available for the CVM-E3-MINI-FLEX and CVM-E3-MINI-FLEX-WiEth models.
(10)
7�3�9�6� Maximum demand
Configuration variable
Integration period
7�3�9�7� Display backlight
Configuration variable
Backlight
7�3�9�8� Activating the harmonics display screen
Configuration variable
Display of harmonics
Instruction Manual
Table 80: Modbus memory map: Number of quadrants
Numberof quadrants
Address
2B64
Table 81: Modbus memory map: Measurement convention�
Measurement convention
Address
2B86
Table 82: Modbus memory map: Measurement system
Measurement system
Address
4-3Ph
0:
Three-phase network with 4 wires�
3-3Ph
1:
Three-phase network with 3 wires.
3-ArOM
2:
Three-phase network with 3 wires, Aron.
2B5C
3-2Ph
3: Two-phase network with 3 wires.
2-2Ph
4: Single-phase network with 2 wires, phase-to-phase.
2-1Ph
5: Single-phase network with 2 wires, phase-to-neutral.
Table 83: Modbus memory map: Maximum demand
Maximum demand
Address
0: The maximum demand will not be calculated
274C
Table 84: Modbus memory map: Backlight
Address
2B5E
Table 85: Modbus memory map: Display of harmonics
Display of harmonics
Address
2B62
Valid data margin
0: 4 quadrants
1: 2 quadrants
Valid data margin
0: Circutor
1: IEC
2: IEEE
Valid data margin
Valid data margin
1 - 60 minutes
Backlight
Valid data margin
1 - 999 seconds
Valid data margin
0: No
1: Yes
Default value
0
Default value
0
Default
value
(10)
0
Default
value
0
Default value
300 s
Default value
0
99
