3�6�12�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO PHASE, WITH A 2-WIRE CONNECTION:
CVM-E3-MINI-ITF AND CVM-E3-MINI-ITF-WiEth
L1
L2

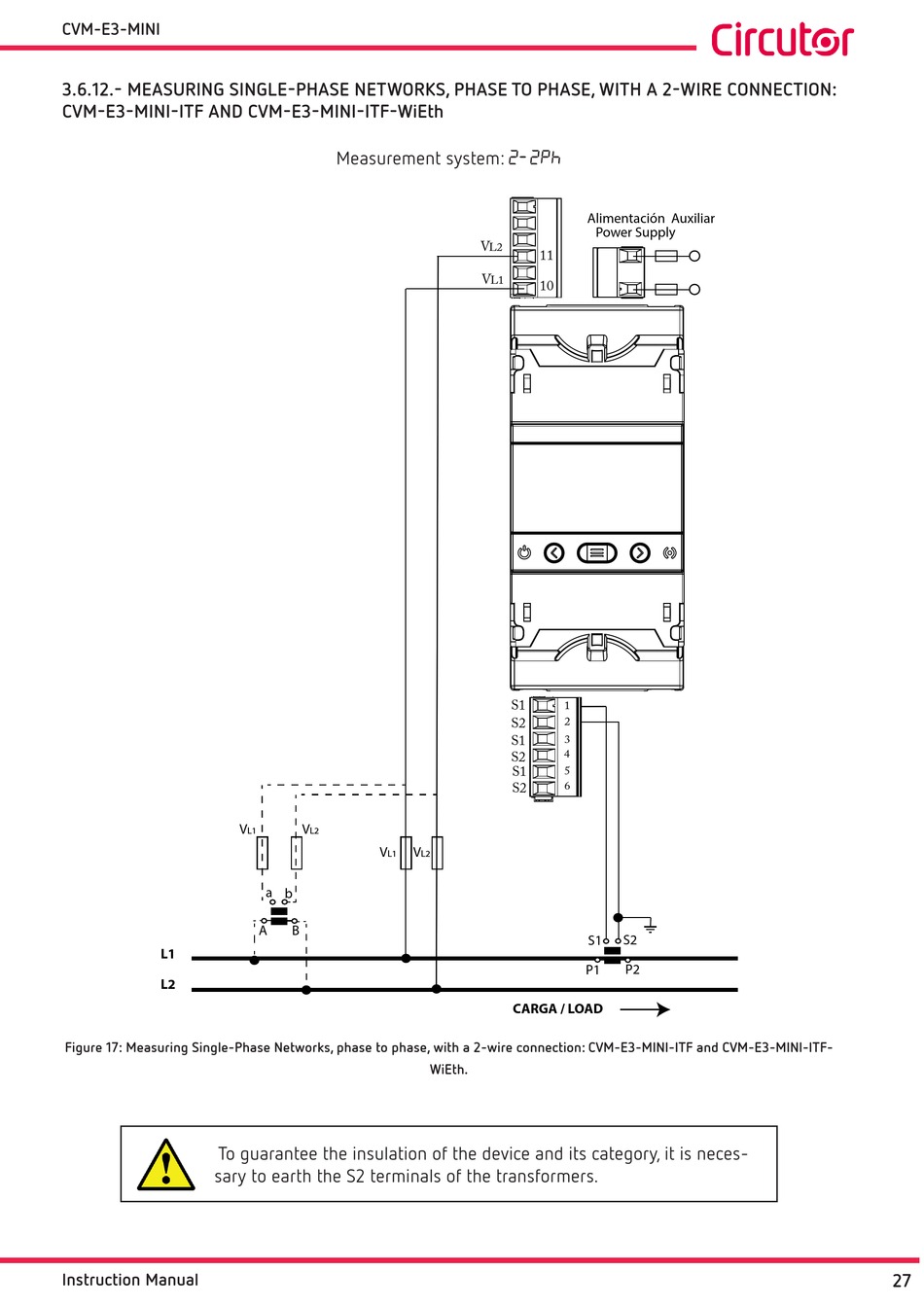

Figure 17: Measuring Single-Phase Networks, phase to phase, with a 2-wire connection: CVM-E3-MINI-ITF and CVM-E3-MINI-ITF-
To guarantee the insulation of the device and its category, it is neces-
sary to earth the S2 terminals of the transformers.
