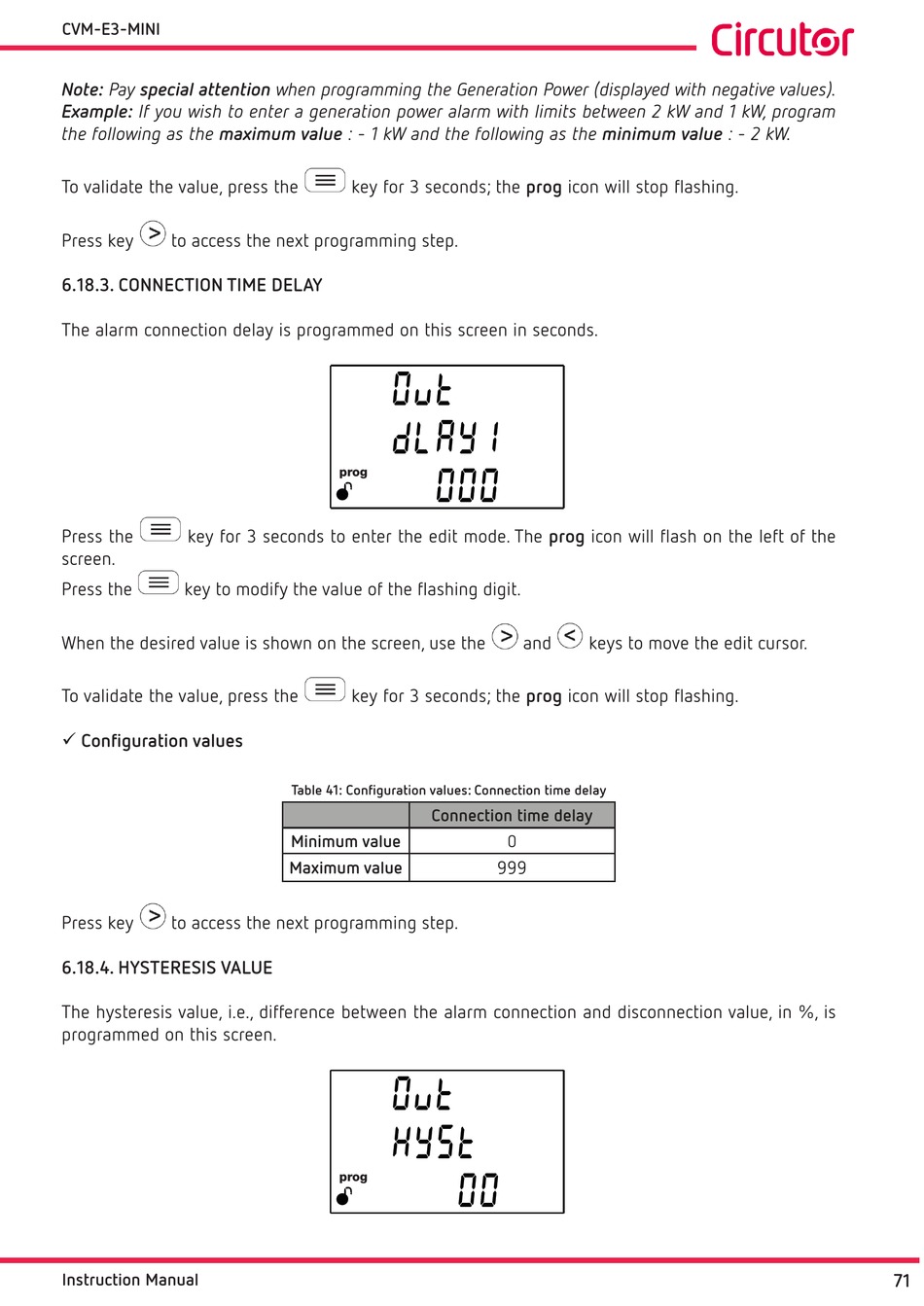

6�18�3� Connection Time Delay; 6�18�4� Hysteresis Value - Circutor CVM-E3-MINI Instruction Manual

CVM-E3-MINI
Note: Pay special attention when programming the Generation Power (displayed with negative values).
Example: If you wish to enter a generation power alarm with limits between 2 kW and 1 kW, program
the following as the maximum value : - 1 kW and the following as the minimum value : - 2 kW.
To validate the value, press the
Press key to access the next programming step.
6�18�3� CONNECTION TIME DELAY
The alarm connection delay is programmed on this screen in seconds.
key for 3 seconds to enter the edit mode. The prog icon will flash on the left of the
Press the
screen.
Press the key to modify the value of the flashing digit.
When the desired value is shown on the screen, use the
To validate the value, press the
 Configuration values
Press key to access the next programming step.
6�18�4� HYSTERESIS VALUE
The hysteresis value, i.e., difference between the alarm connection and disconnection value, in %, is
programmed on this screen.
Instruction Manual
key for 3 seconds; the prog icon will stop flashing.
key for 3 seconds; the prog icon will stop flashing.
Table 41: Configuration values: Connection time delay
Connection time delay
Minimum value
Maximum value
and keys to move the edit cursor.
0
999
