3�6�14�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO PHASE, WITH A 2-WIRE CONNECTION:

CVM-E3-MINI-FLEX AND CVM-E3-MINI-FLEX-WiEth

L1
L2

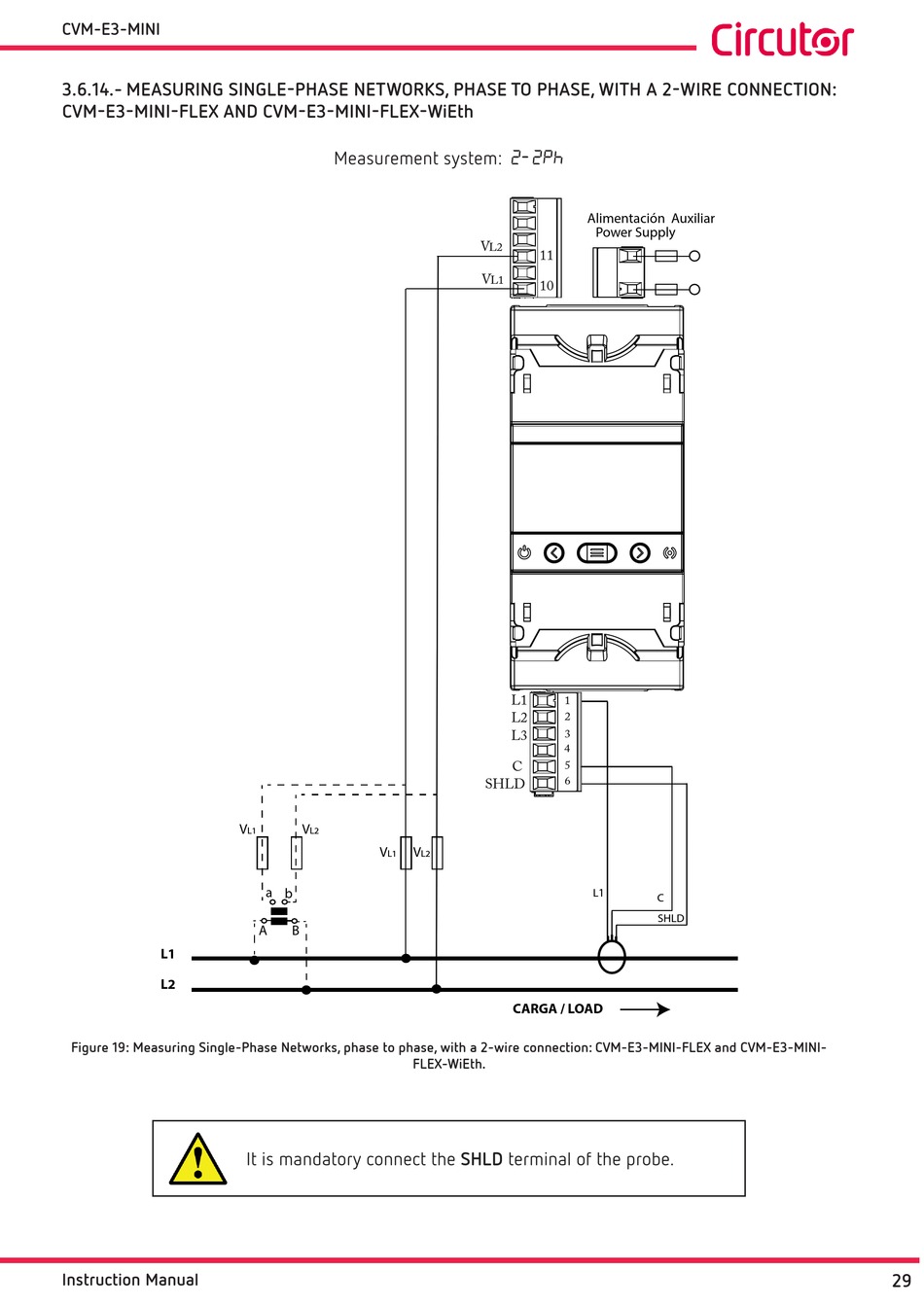

Figure 19: Measuring Single-Phase Networks, phase to phase, with a 2-wire connection: CVM-E3-MINI-FLEX and CVM-E3-MINI-
Instruction Manual
Measurement system:
V V
L1 L2
V V
L1
a b
A B
FLEX-WiEth�
It is mandatory connect the SHLD terminal of the probe.
2-2Ph
