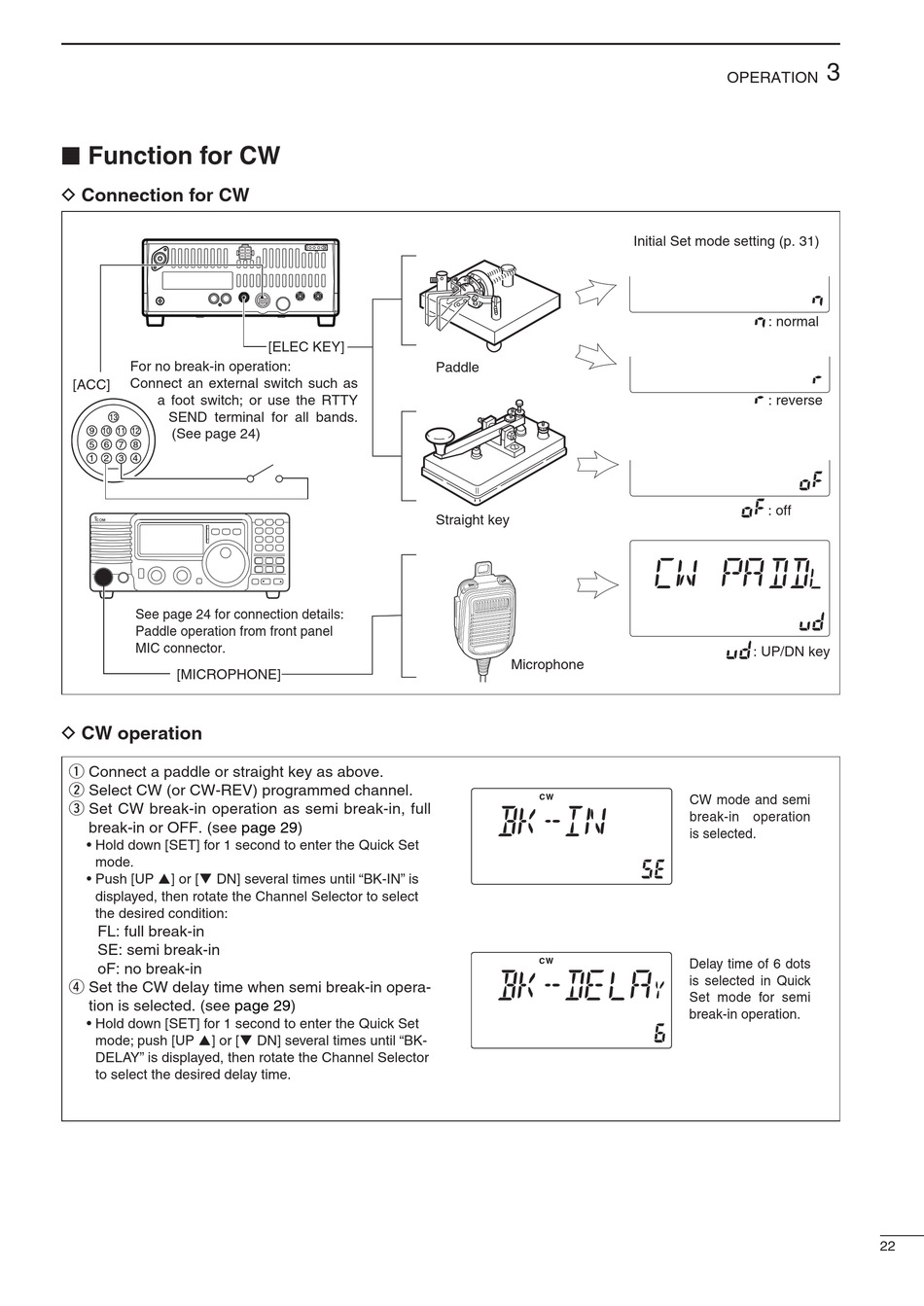

Function for CW
D
Connection for CW
For no break-in operation:
Connect an external switch such as
[ACC]
a foot switch; or use the RTTY
SEND terminal for all bands.
13
9 10 11 12
(See page 24)
5 6 7 8
1 2 3 4
See page 24 for connection details:
Paddle operation from front panel
MIC connector.
[MICROPHONE]
D
CW operation
q Connect a paddle or straight key as above.
w Select CW (or CW-REV) programmed channel.
e Set CW break-in operation as semi break-in, full
break-in or OFF. (see
• Hold down [SET] for 1 second to enter the Quick Set
mode.
• Push [UP p] or [q DN] several times until "BK-IN" is
displayed, then rotate the Channel Selector to select
the desired condition:
FL: full break-in
SE: semi break-in
oF: no break-in
r Set the CW delay time when semi break-in opera-
tion is selected. (see page
• Hold down [SET] for 1 second to enter the Quick Set
mode; push [UP p] or [q DN] several times until "BK-
DELAY" is displayed, then rotate the Channel Selector
to select the desired delay time.
13
9 10 11 12
5 6 7 8
1 2 3 4
[ELEC KEY]
page 29)
29)
Paddle
Straight key
Microphone
OPERATION
Initial Set mode setting (p. 31)
: normal
: reverse
: off
: UP/DN key
CW mode and semi
break-in operation
is selected.
Delay time of 6 dots
is selected in Quick
Set mode for semi
break-in operation.
