Quick Set Mode Items - Icom IC-78 Instruction Manual

4
SET MODE
n

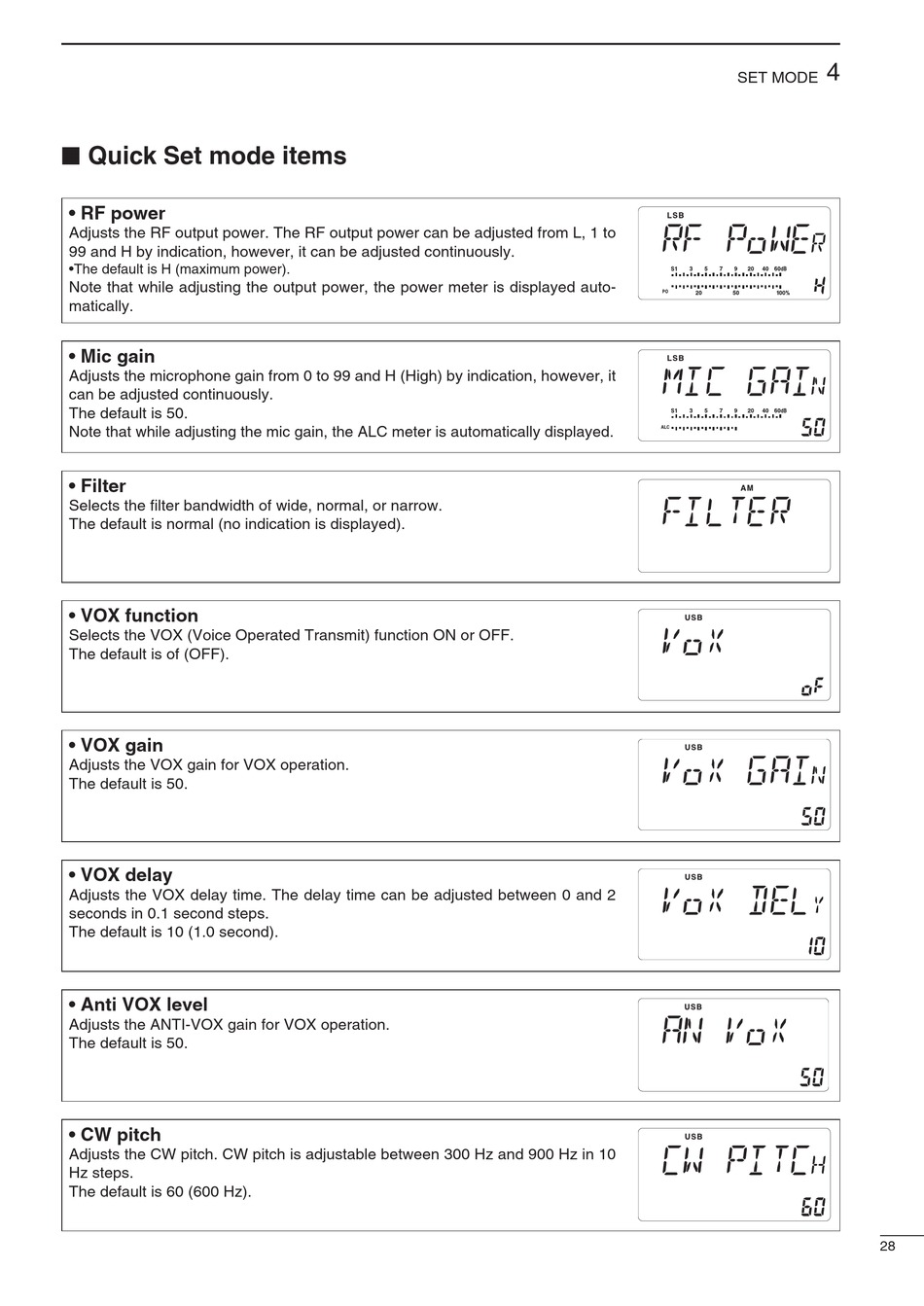

Quick Set mode items

• RF power
Adjusts the RF output power. The RF output power can be adjusted from L, 1 to
99 and H by indication, however, it can be adjusted continuously.
•The default is H (maximum power).
Note that while adjusting the output power, the power meter is displayed auto-
matically.
• Mic gain
Adjusts the microphone gain from 0 to 99 and H (High) by indication, however, it
can be adjusted continuously.
The default is 50.
Note that while adjusting the mic gain, the ALC meter is automatically displayed.
• Filter
Selects the filter bandwidth of wide, normal, or narrow.
The default is normal (no indication is displayed).
• VOX function
Selects the VOX (Voice Operated Transmit) function ON or OFF.
The default is of (OFF).
• VOX gain
Adjusts the VOX gain for VOX operation.
The default is 50.
• VOX delay
Adjusts the VOX delay time. The delay time can be adjusted between 0 and 2
seconds in 0.1 second steps.
The default is 10 (1.0 second).
• Anti VOX level
Adjusts the ANTI-VOX gain for VOX operation.
The default is 50.
• CW pitch
Adjusts the CW pitch. CW pitch is adjustable between 300 Hz and 900 Hz in 10
Hz steps.
The default is 60 (600 Hz).
28
