Options - Icom IC-78 Instruction Manual

10

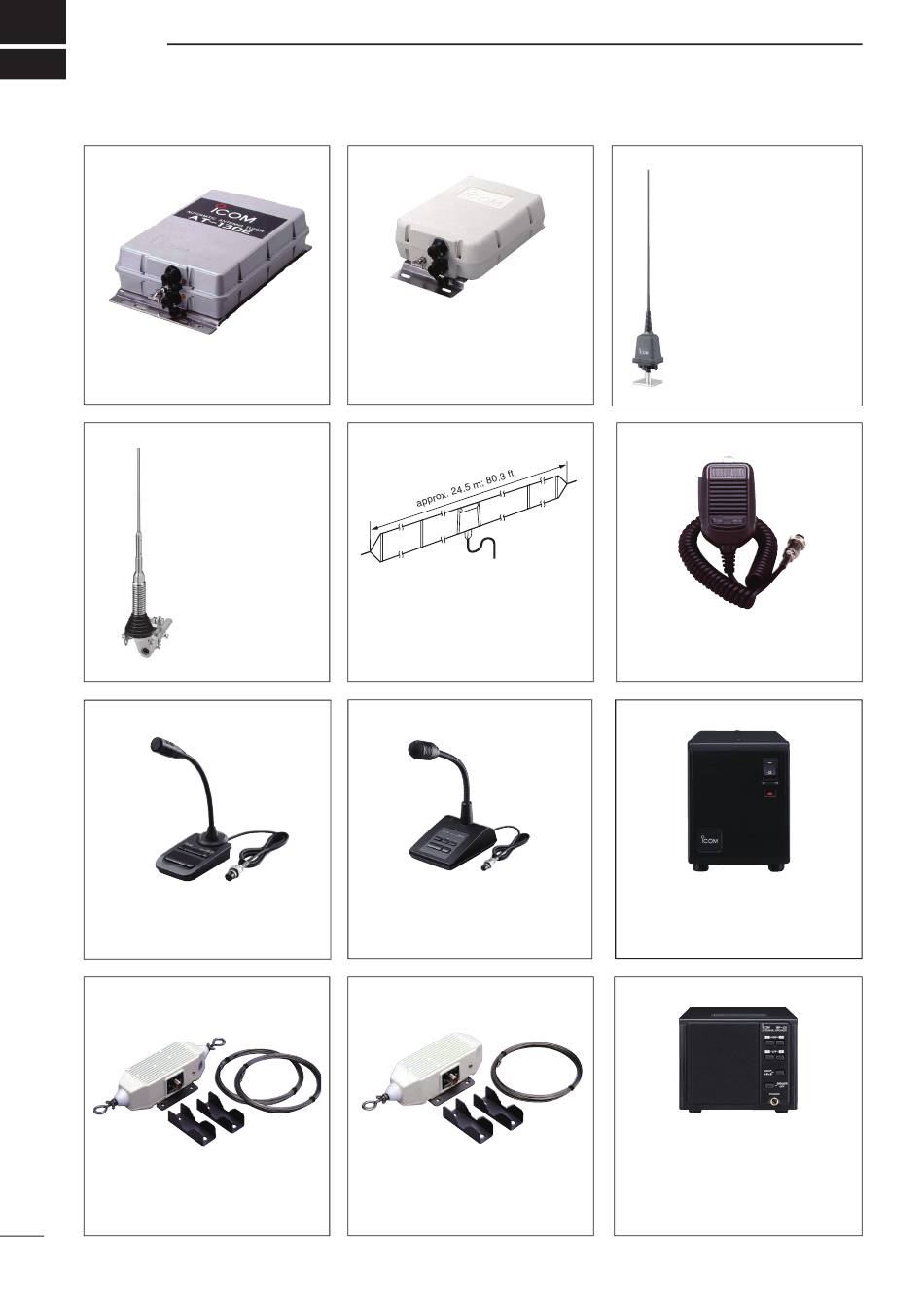

OPTIONS

AT-130/E
AUTOMATIC ANTENNA TUNER
Matches the transceiver to a long wire
antenna with a minimum of insertion
loss.
AH-2b
ANTENNA ELEMENT
A 2.5 m long
antenna element
for mobile operation
with the AH-4.
• Frequency
SM-30
DESKTOP MICROPHONE
Includes a low frequency cut function.
MN-100 ANTENNA MATCHER
Matches the transceiver to a dipole
antenna. Covers all HF bands from
1.5 to 30 MHz. Two 8 m antenna wires
are supplied.
43
AH-4
Specially designed to tune a long wire
antenna for portable or mobile HF op-
eration. The PTT tuner start function
provides simple operation.
• Input power rating: 120 W
AH-710
coverage:
3.5–28 MHz
Covers the 1.9–30 MHz bands. Has
bands with the
an SO-239 connector. A 30 m (98.4 ft)
AH-4
coaxial cable with PL-259 connector
is supplied.
SM-50
Unidirectional, dynamic microphone
for base station operation. Includes
[UP]/ [DOWN] switches, a low cut
switch and mic gain control.
MN-100L ANTENNA MATCHER
Matches the transceiver to a long wire
antenna. Covers all HF bands from
1.5 to 30 MHz. One 15 m antenna
wire is supplied.
AUTOMATIC ANTENNA TUNER
FOLDED DIPOLE ANTENNA
DESKTOP MICROPHONE
AH-740
AUTOMATIC TUNING ANTENNA
High performance, automatic
high-speed tuning antenna.
• Frequency coverage
With 1.54 m whip antenna:
2.5 MHz–29.9999 MHz
With AH-5NV (NVIS kit):
2.2 MHz–29.9999 MHz
HM-36
HAND MICROPHONE
Hand microphone equipped with [UP]
and [DOWN] switches.
Same as the supplied microphone.
PS-126
DC POWER SUPPLY
• Output voltage: 13.8 V DC
• Maximum output current: 25 A
SP-23
EXTERNAL SPEAKER
4 audio filters, headphone jack, can
be connected to 2 transceivers.
• Input impedance: 8 ø
• Maximum input power: 4 W
