Black/white imaging mode (B-mode)
Curved array (deep scanning) transducer
1. Image orientation marker
2. Vscan Air battery status indicator
3. Probe link quality indicator
4. Thermal indicator
5. Selected preset
6. Center line marker
7. Exam number
8. Focus marker
9. Depth
10. Store
11. Freeze
12. Color flow
13. Thermal Index (TI)
14. Mechanical Index (MI)
15. Resolution/Penetration toggle button
–
Vscan Air User Manual
Direction GP092020-1EN Rev 18

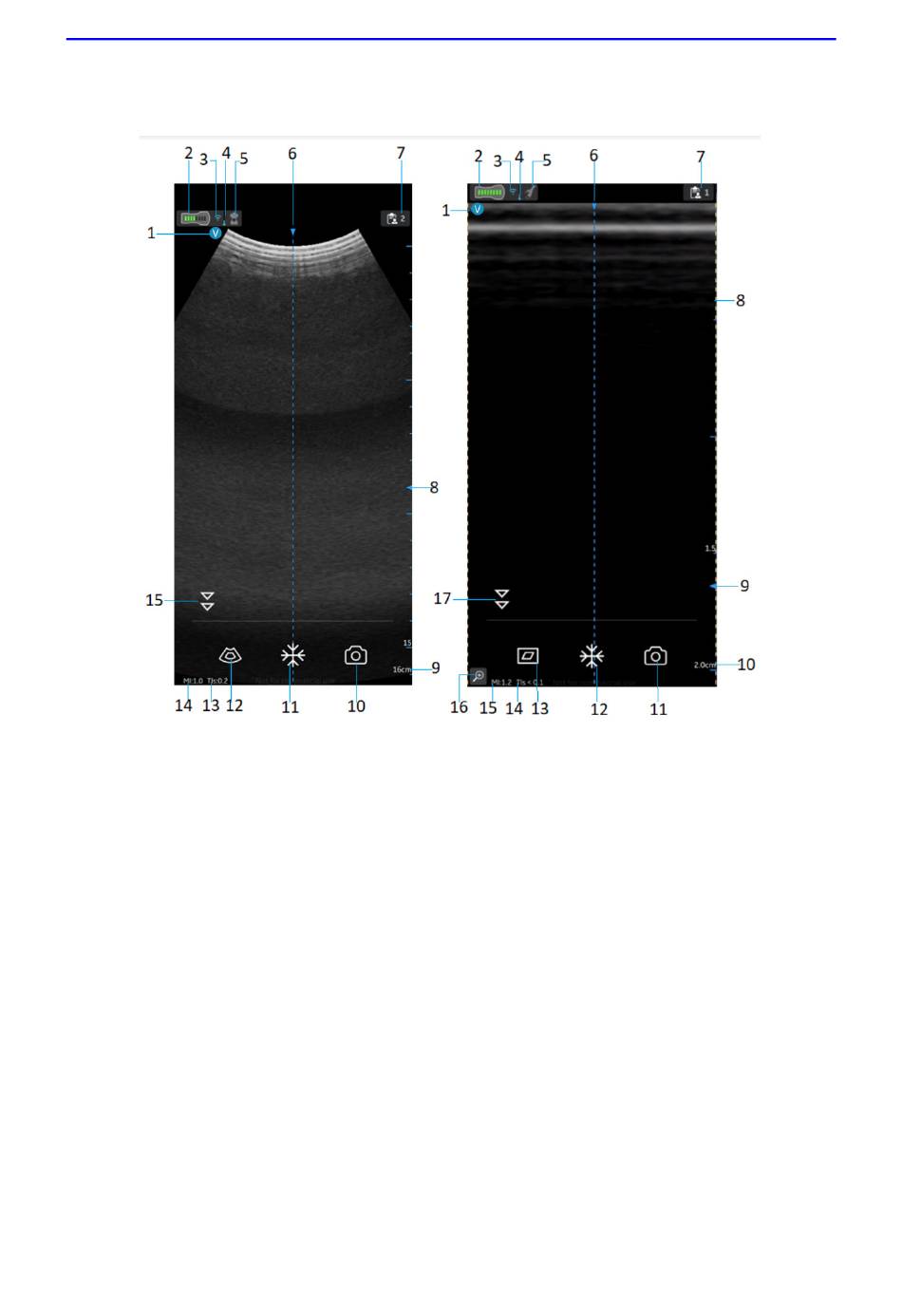

Figure 3-7. Black/white imaging mode (B-mode)
Linear array (shallow scanning) transducer
1. Image orientation marker
2. Vscan Air battery status indicator
3. Probe link quality indicator
4. Thermal indicator
5. Selected preset
6. Center line marker
7. Exam number
8. Image crop indicators
9. Focus marker
10. Depth
11. Store
12. Freeze
13. Color flow
14. Thermal Index (TI)
15. Mechanical Index (MI)
16. Zoom indicator
17. Resolution/Penetration toggle button
