System description

The Vscan Air CL is a dual headed battery-operated ultrasound
device. The Vscan Air CL has a linear array on one side, and a
curved array on the opposite side. It generates a beam of
ultrasound that is transmitted into the subject's body. The
reflection of this beam is transformed into an image that is
wirelessly transmitted to a phone or a tablet and displayed via
the installed Vscan Air app.
The Vscan Air App provides the user interface and the needed
software functionality for using a generic mobile device as a
display and control unit for ultrasound imaging. The generic
mobile device must be operating with either Android OS or iOS.
The Vscan Air app is available for installation via the Google
Play store and the Apple App store.

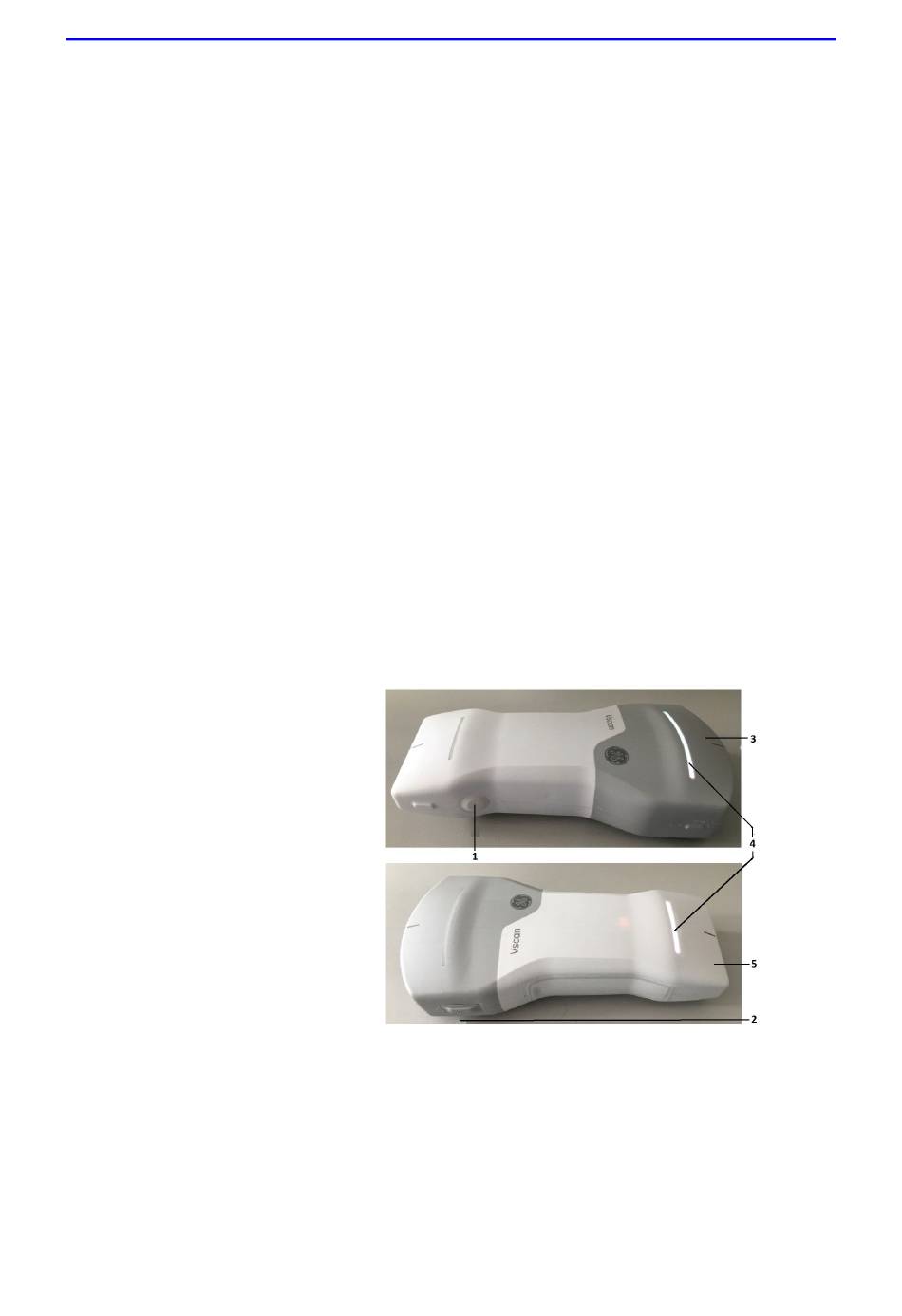

1. Power button
2. Manufacturing port - sealed
3. Curved array
Figure 3-3. Vscan Air CL
To charge Vscan Air CL refer 'How to charge the Vscan Air CL'
on page 3-4
4. LED indicator
5. Linear array
–
