Preparing Vscan Air CL for Use
Display device image quality verification (continued)
3-30
Recommended example images: Abdominal preset on Curved
and MSK preset on Linear transducer.

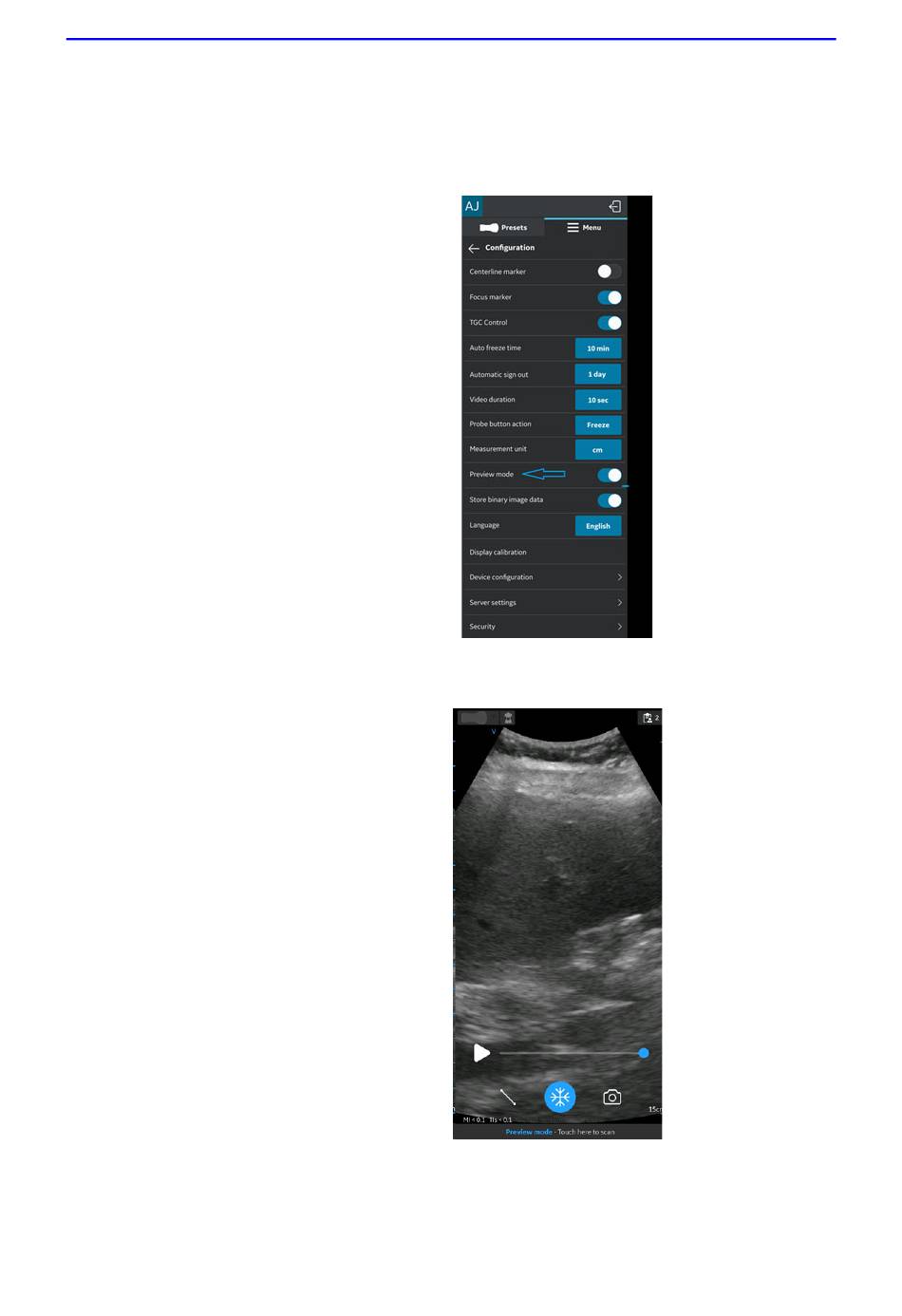

Figure 3-13. Screen with preview mode
Figure 3-14. Abdominal preset with curved
–
Vscan Air
Direction GP092020-1EN Rev 18
User Manual
