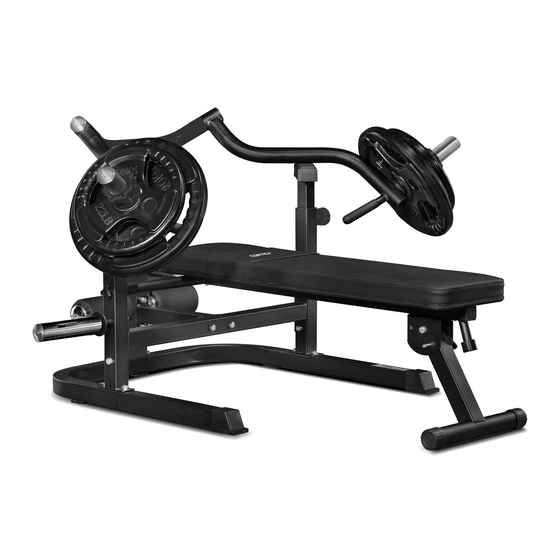

Cortex BNL1 Owner's Manual

Lever flat bench
Hide thumbs

Advertisement

Quick Links

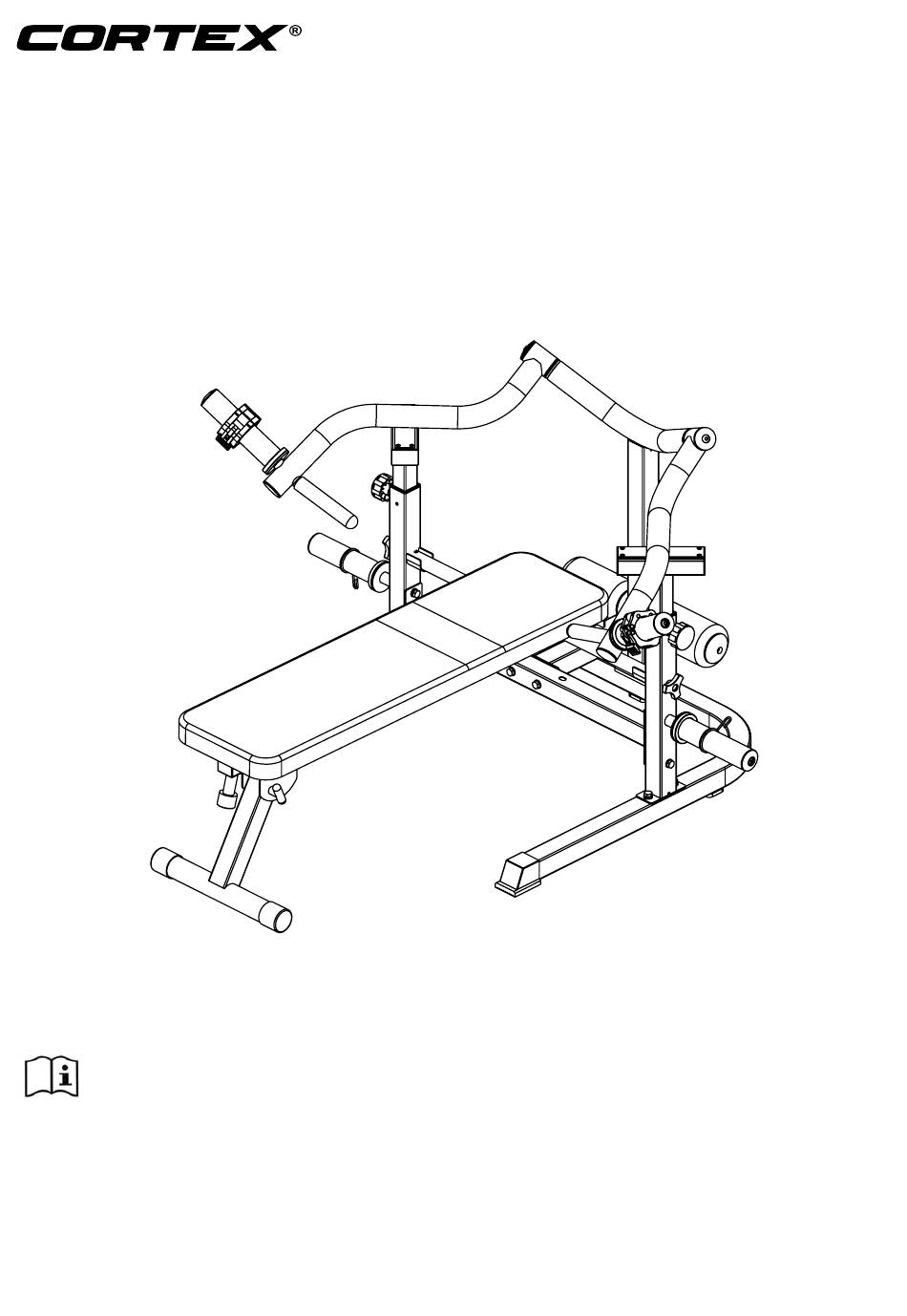

BNL1 LEVER FLAT
BENCH OWNER'S
MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the BNL1 and is the answer not in the manual?

Questions and answers

Related Manuals for Cortex BNL1

Summary of Contents for Cortex BNL1

  • Page 1 BNL1 LEVER FLAT BENCH OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ................... 3 2. CARE INSTRUCTIONS ......................4 3. PARTS LIST ..........................5 4. ASSEMBLY INSTRUCTIONS ....................6 5. WARRANTY ..........................16...

  • Page 3: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this product. Please keep this manual with you at all times It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 4: Care Instructions

    The equipment is not suitable for therapeutic use. 2. CARE INSTRUCTIONS Lubricate moving joints with silicon spray after periods of usage. • Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. • The machine can be kept clean by wiping it down using dry cloth.

  • Page 5: Parts List

    3. PARTS LIST Descrip�on Note Qty. support frame across tube barbell bar ground tube washer φ10 hexagon bolt M10*25 spring washer Φ10 hexagon bolt M10*70 lock nut bu�erf l y pin φ50 back support tube back connect square tube adjust tube-le� adjust tube-right back cushion frame plum flower pull pin...

  • Page 6: Assembly Instructions

    4. ASSEMBLY INSTRUCTIONS Step 1 Descrip�on Note Qty. support frame across tube barbell bar ground tube washer hexagon bolt M10*25 spring washer Φ10 hexagon bolt M10*70 lock nut bu�erf l y pin φ50...
  • Page 7 1. As shown in the figure, assemble support frame – 1 onto ground tube – 4 using: M10*25 hexagon bolt – 6 φ10 spring washer – 7 φ10 washer – 5 Left and right side have one piece, respectively. Tighten the bolts. 2.
  • Page 8 Step 2 Descrip�on Note Qty. back support tube back connect square tube washer lock nut hexagon bolt M10*25 hexagon bolt M10*70 spring washer Φ10...
  • Page 9 1. Assemble back support tube – 11 on main machine using: M10*25 hexagon bolt – 6 φ10 spring washer – 7 φ10 washer – 5 Tighten the bolts. 2. As shown in the figure assemble back connect square tube – 12 on main machine using: M10*70 hexagon bolt –...
  • Page 10 Step 3 No. Descrip�on Note Qty. adjust tube-le� adjust tube-right back cushion frame plum flower pull pin M18*1.5-35 tra ingle pin φ8*60 back cushion behind hexagon bolt M10*75 washer lock nut T shape pin φ10*85...
  • Page 11 1. As shown in the figure assemble adjust tube left – 13, adjust tube right – 14 on main machine and put plum flower pull pin – 16. Left and right have one piece, respectively. 2. Assemble back cushion frame – 15 on main machine using triangle pin – 17 to secure it. Left and right have one piece, respectively.
  • Page 12 Step 4 Descrip�on Note Qty. bend tube-le� bend tube -right hexagon socket pl a i n round head screw M10*25 decorate cover Φ50 col l ar cl amp Φ50 spring washer Φ10...
  • Page 13 1. As shown in the figure, assemble bend tube left – 20 on main machine then put decorate cover – 23 sponge cover cap – 20 using: φ10 spring water – 7 M10*25 hexagon socket plain round screw – 22 Tighten the bolts.
  • Page 14 Step 5 Descrip�on Note Qty. back cushion 1100*300*50 flat washer φ8 hexagon bolt M8*65 sponge tube sponge inner cap 100 sponge φ100*175 sponge outer cap hexagon socket pl a i n round head screw M8*25...
  • Page 15 1. As shown in the figure, assemble the sponge inner cap – 29, sponge tube – 28, 1—sponge – 30, sponge outer cap – 31 on the main machine using: M8*25 hexagon socket plain round head screw – 32 Left and right have one piece, respectively. Tighten the bolts.

  • Page 16: Warranty

    5. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
