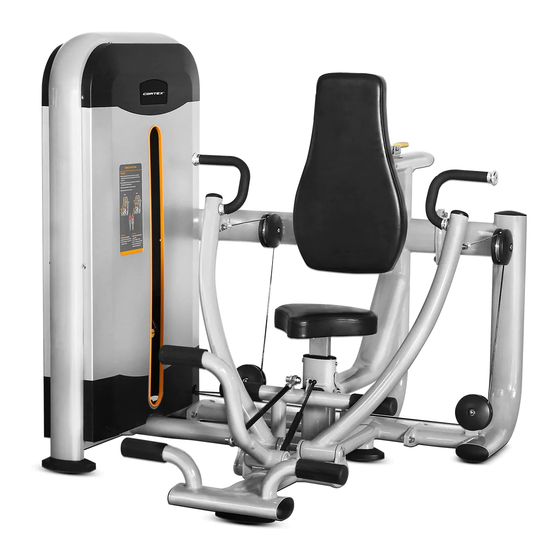

Cortex Omega CTP-10 Owner's Manual

Seated chest press
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

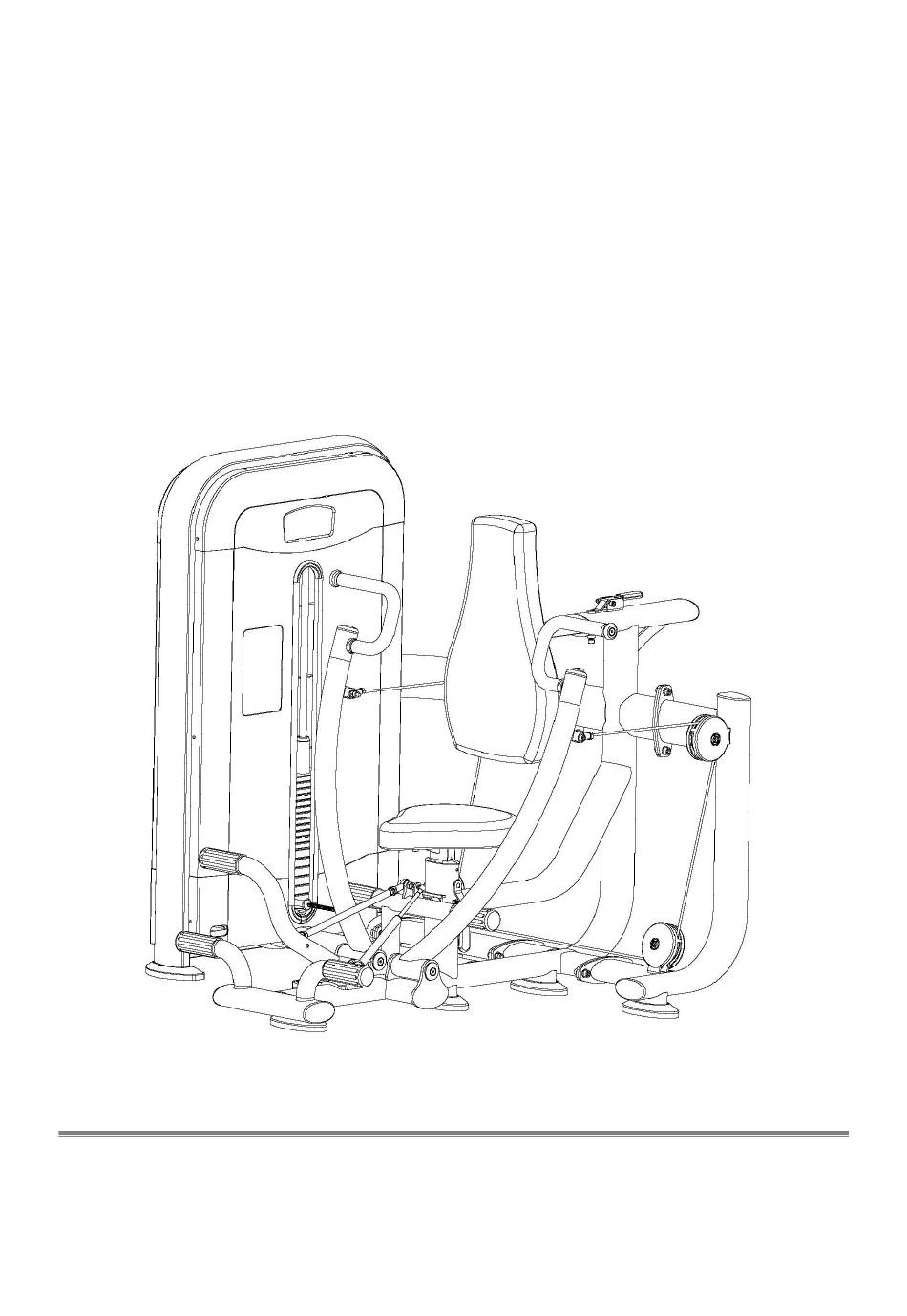

CTP-10 Seated Chest
Press
OWNER'S MANUAL
IMPORTANT!
Please read all instructions carefully before using this product.
Retain this manual for future reference.
The specifications of this product may vary slightly from the illustrations and are subject to change
without notice.
V.K007A20160812

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omega CTP-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cortex Omega CTP-10

Summary of Contents for Cortex Omega CTP-10

  • Page 1 CTP-10 Seated Chest Press OWNER’S MANUAL IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice. V.K007A20160812...

  • Page 2: Warning, Safety & Maintenance

    WARNING, Safety & Maintenance Be sure that all users carefully read and understand all warning, safety and maintenance info on this Owner’s Manual or labels on the machine before each use. Failure to do so may result in death or serious injury. It is imperative that you retain this Owner’s Manual and be sure all warning labels are legible and intact.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. // est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement. Antes de comenzar cualquier programma de ejercicios, deberias tener un examen fisico con su doctor.
  • Page 4 PREPARATION Thank you for purchasing this equipment. This machine is part of our line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly.

  • Page 5: Exploded Drawing

    Exploded Drawing - 4 -...

  • Page 6: Parts List

    Parts list DESCRIPTION DESCRIPTION Weight frame Handle grip Upper horizontal frame Inner hexagon head screw M8*55 Middle connecting frame Flat washer D13*2.5*24 Main seat support Plug hole 5L/R Leverage arm 1pr. Hex nut M6 Back pad frame Back pad Seat frame Inner hexagon head screw M12*55 Handle 1 Pulley cover...

  • Page 7: Assembly Instruction

    NOTE: Most of the listed hardware has been packaged separately, but some of them have been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the hardware as assembly is required. Please refer the individual steps for the installation and pay attention to the preinstalled hardware.
  • Page 8 Step 2 1. Install the Cable (77) in the direction of arrow as shown in below drawing. After winding Weight (1), Cable(77) ends must through small hole on bottom right corner of (74a) frame Front shroud 2. Lock Alloy sleeve (51) and Aluminum pulley (73) to the top end of Weight frame (1) with Inner hexagon head screw (49), Flat washer (45) and Nylon nut (38) 3.
  • Page 9 Step 3 1. Install the Cable (77) in the direction of arrow as shown in below drawing. 2. Lock Pulley cover (50), Alloy sleeve (51) and Pulley (52) to Fixed frame (14), Downside horizontal frame (12) and Upper horizontal frame (2) respectively with Inner hexagon head screw (49), Flat washer (45) and High cap nut (53) - 8 -...
  • Page 10 Step4 1. Fix Leverage arm (5L/R) to Main seat support (4) respectively with Inner hexagon sunk head bolt (28), End cap(29) and Short axis (54) 2. Lock the two ends screw of cable (77) to Rod end joint bearing (34) of Fix Leverage arm (5L/R) - 9 -...
  • Page 11 Step 5 1. Install Cushion (61), Guide rod (65), Weight plate (10kg) (62), Weight plate (5kg) (63) and Top plate (5kg) (72) to Weight frame (1) 2. Fix Guide rod (65) to Weight frame (1) with E Circlip (70) 3. Paste sticker on Weight plate (10kg) (62) and Weight plate (5kg) (63), as order of small to big and top to bottom 4.
  • Page 12 Step 6 1. Unscrew Inner hexagon head screw (42), press down Handle 1 (9) and then insert Back pad frame (6) to Main seat support (4). Screw on Inner hexagon head screw (42) back to Main seat support (4) finally. 2.

  • Page 13: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Using your machine will provide you with several benefits. It will improve your physical fitness, tone your muscles and in conjunction with a calorie controlled diet, help you lose weight. WARM-UP PHASE The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength-training or aerobic exercising.
