Chapter 3: System Setup

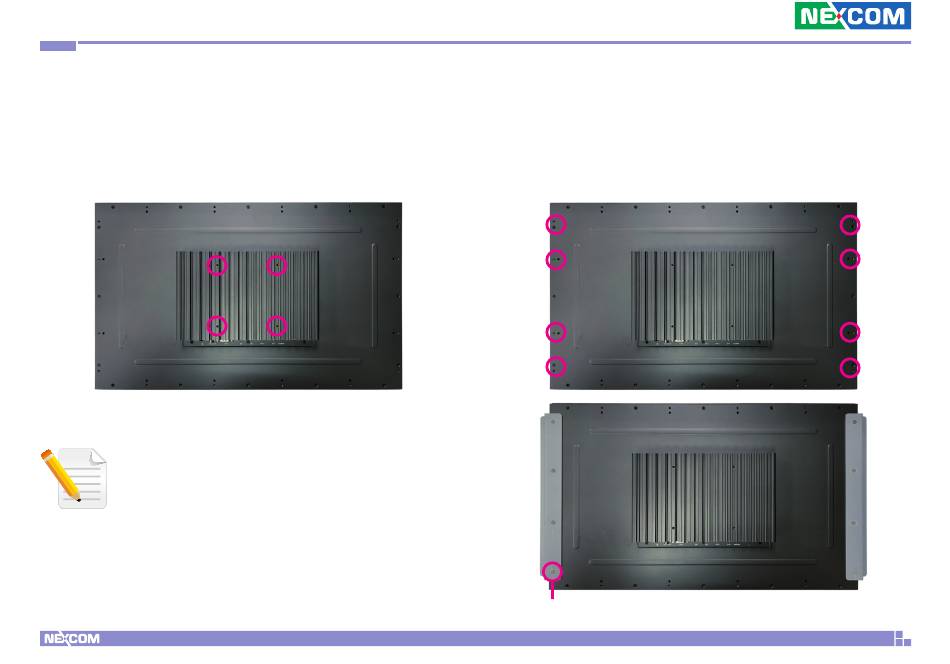

Installing VESA Mount Kit

1. Align the mounting holes on the VESA mount bracket to the VESA
mounting holes on the back of the panel PC, then secure the VESA
mount bracket with screws.
Recommended screws for the VESA mount kit:
4 * M4x8 screws.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.

Installing Open Frame Kit

1. Turn to the rear side of the panel PC and align the mounting holes on the
open frame bracket to the open frame mounting holes on the panel PC,
then secure the open frame bracket with screws.
8 * Screws (F3x5 Nylok NI+Heat)
