Multimedia Expansion Board II (MEB II) User's Guide
2.1.16
The MTCH6301 is a turn-key PCAP controller that allows easy integration of multi-
touch and gestures to create a rich user interface. The MTCH6301 supports up to 13
receive (RX) and 18 transmit (TX) channels, and sensor sizes up to 4.3". The
MTCH6301 communicates with the PIC32 microcontroller through a serial I
an interrupt, as shown in

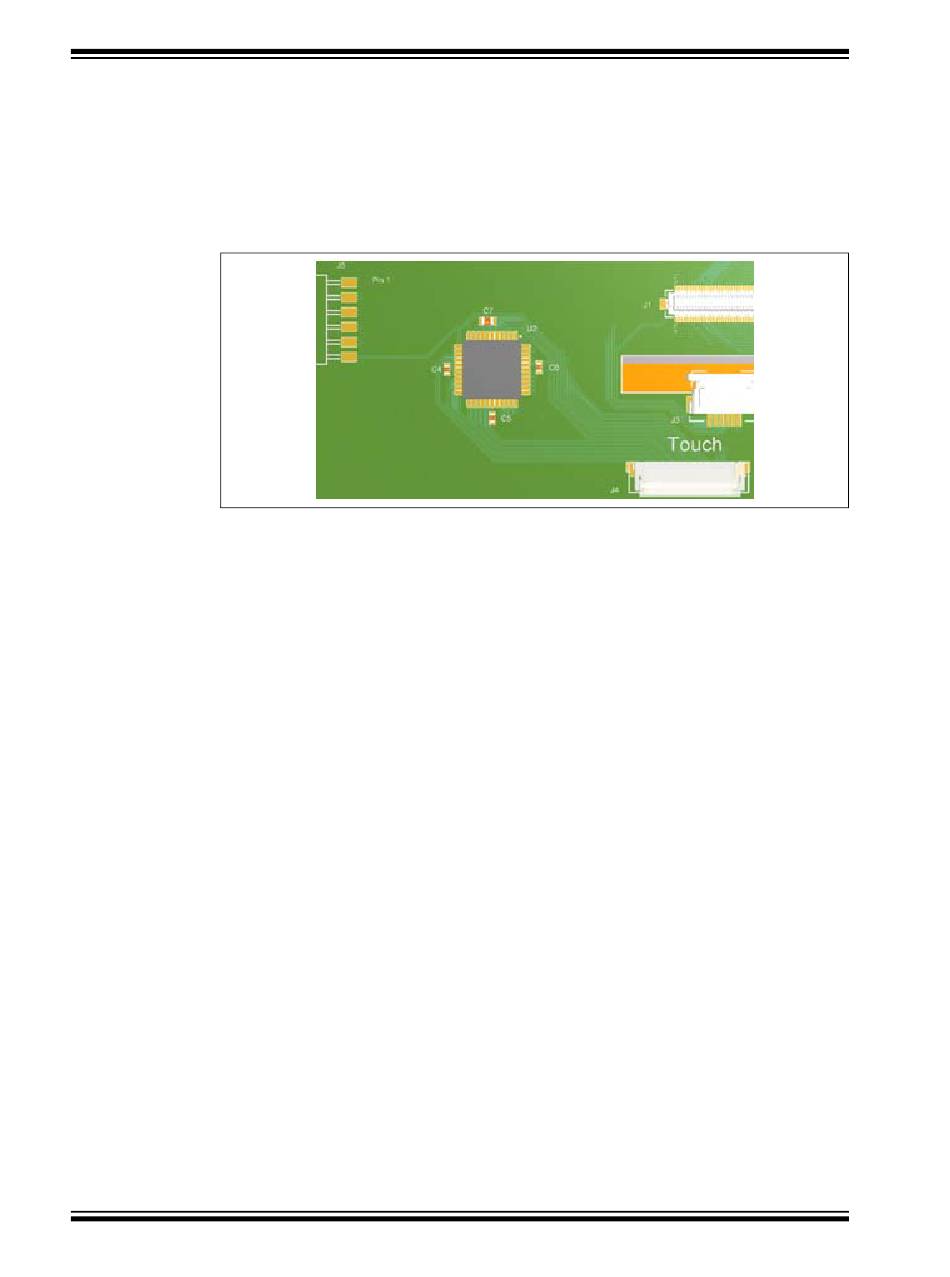

FIGURE 2-16:
DS70005148B-page 30
MTCH6301 Touch Controller
Figure 2-16.
MTCH6301 TOUCH CONTROLLER
2
C bus and
