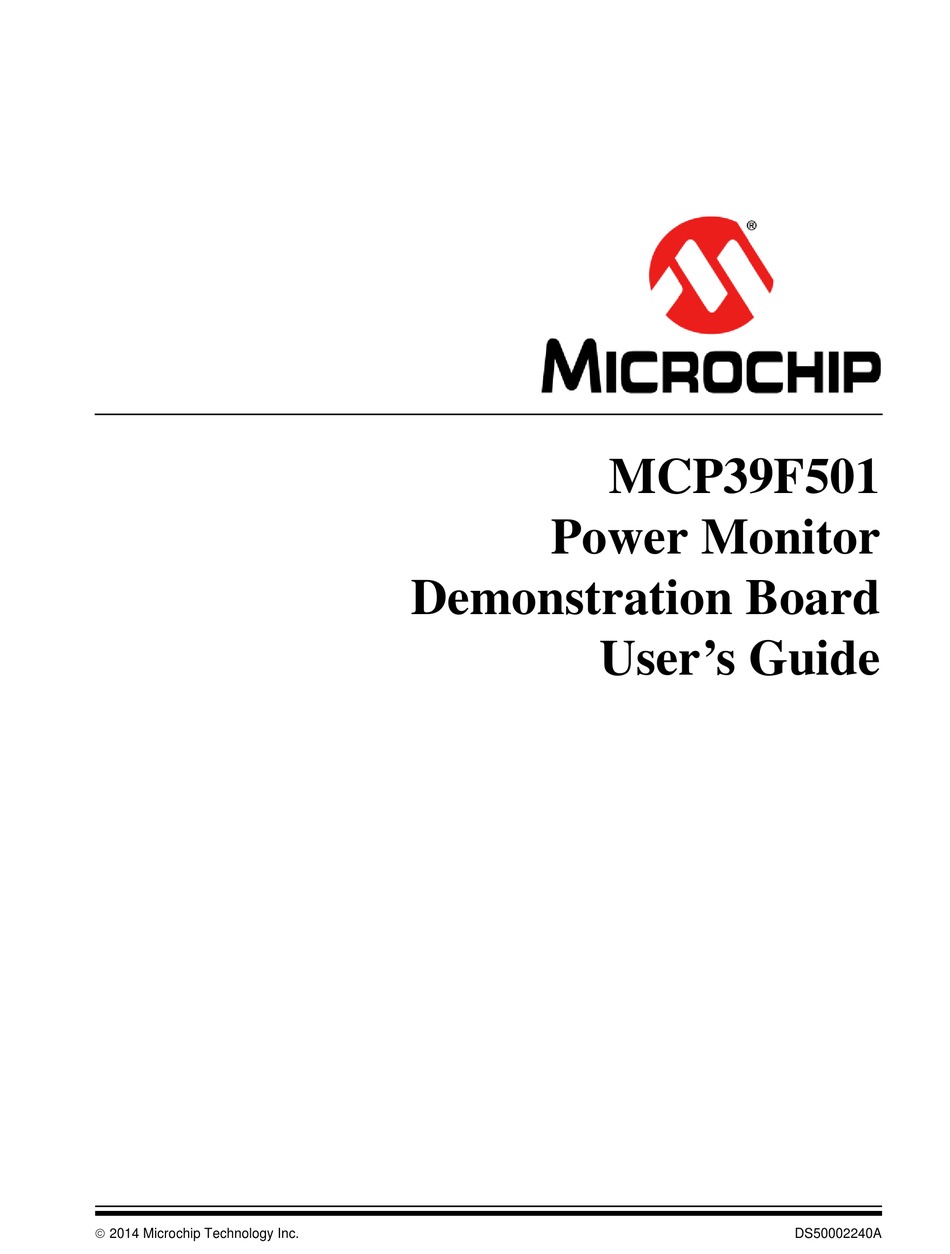

  • Page 1 MCP39F501 Power Monitor Demonstration Board User’s Guide  2014 Microchip Technology Inc. DS50002240A...
  • Page 2 Total Endurance, TSHARC, UniWinDriver, WiperLock, ZENA and Z-Scale are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. GestIC and ULPP are registered trademarks of Microchip Technology Germany II GmbH &...
  • Page 3 Object of Declaration: MCP39F501 Power Monitor Demonstration Board User’s Guide  2014 Microchip Technology Inc. DS50002240A-page 3...
  • Page 4 MCP39F501 Power Monitor Demonstration Board User’s Guide NOTES:  2014 Microchip Technology Inc. DS50002240A-page 4...
  • Page 5: Table Of Contents

    Customer Support ....................9 Document Revision History ................... 9 Chapter 1. Product Overview 1.1 Introduction ....................11 1.2 What the MCP39F501 Power Monitor Demonstration Board Kit Includes ... 12 Chapter 2. Installation and Operation 2.1 Getting Started ..................... 13 Chapter 3. Hardware Description 3.1 Input and Analog Front End .................
  • Page 6 MCP39F501 Power Monitor Demonstration Board User’s Guide NOTES:  2014 Microchip Technology Inc. DS50002240A-page 6...
  • Page 7: Preface

    – Provides information on using the MCP39F501 Power Monitor Demonstration Board, including Section 2.1.3 “Step 3: Connect the USB cable to a PC with the installed “MCP39F501 Power Monitor Utility” software” that describes wiring the line and load connections •...
  • Page 8: Conventions Used In This Guide

    MCP39F501 Power Monitor Demonstration Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler...
  • Page 9: Recommended Reading

    Board. Another useful documents is listed below. The following Microchip document is available and recommended as a supplemental reference resource. MCP39F501 Data Sheet – “Single Phase Energy and Power Monitoring IC with Calculation” (DS20005256) This data sheet provides detailed information regarding the MCP39F501 device.
  • Page 10 MCP39F501 Power Monitor Demonstration Board User’s Guide NOTES:  2014 Microchip Technology Inc. DS5002240A-page 10...
  • Page 11: Chapter 1. Product Overview

    This low-cost design does not use any transformers and requires few external components. The system calculates active power, reactive power, RMS current, RMS voltage and other typical power quantities, as defined in the MCP39F501 data sheet. The Microchip Energy Meter 1-Phase software is used to calibrate and monitor the system, and can be used to create custom calibration setups.
  • Page 12: What The Mcp39F501 Power Monitor Demonstration Board Kit Includes

    MCP39F501 Power Monitor Demonstration Board User’s Guide WHAT THE MCP39F501 POWER MONITOR DEMONSTRATION BOARD KIT INCLUDES This MCP39F501 Power Monitor Demonstration Board kit includes: • MCP39F501 Power Monitor Demonstration Board (ARD00455) • Important Information Sheet • Mini USB cable • AC Line cable •...
  • Page 13: Chapter 2. Installation And Operation

    Printed Circuit Board (PCB). To test the calibrated meter, the following connections can be made: 2.1.1 Step 1: Wiring connections Figure 2-1 identifies the line and load connections of the MCP39F501 Power Monitor Demonstration Board. FIGURE 2-1: Connecting the MCP39F501 Power Monitor Demonstration Board.
  • Page 14 MCP39F501 Power Monitor Demonstration Board User’s Guide NOTES:  2014 Microchip Technology Inc. DS50002240A-page 14...
  • Page 15: Chapter 3. Hardware Description

    Headers for pulse testing (isolated) 3 = Connections to external shunt current USB Connection (isolated) sensing resistor 4 = Configuration jumpers FIGURE 3-1: MCP39F501 Power Monitor Demonstration Board Top View – Hardware Components.  2014 Microchip Technology Inc. DS50002240A-page 15...
  • Page 16 MCP39F501 Power Monitor Demonstration Board User’s Guide Legend: Opto-isolators Power supply Current sensing shunt (2 m) Isolation IC MCP2200 for USB connection FIGURE 3-2: MCP39F501 Power Monitor Demonstration Board Bottom View – Hardware Components.  2014 Microchip Technology Inc. DS50002240A-page 16...
  • Page 17: Input And Analog Front End

    Hardware Description INPUT AND ANALOG FRONT END The MCP39F501 Power Monitor Demonstration Board comes populated with components designed for 220V line voltage. However, it will work from 90V to 230V. At the bottom of the main board, there are the high-voltage line and neutral connections.
  • Page 18: Power Supply Circuit

    MCP39F501 Power Monitor Demonstration Board User’s Guide POWER SUPPLY CIRCUIT The power supply circuit for the MCP39F501 Power Monitor Demonstration Board uses a half-wave rectified signal and a +3.3V voltage regulator. +3.3 VD +3.3 VA +9V DC Power In 100...
  • Page 19: Appendix A. Schematic And Layouts

    DEMONSTRATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following schematics and layouts for of the MCP39F501 Power Monitor Demonstration Board: • Board – Schematic • Board – Top Silk • Board – Top Copper and Silk •...
  • Page 20: Board - Schematic

    BOARD – SCHEMATIC 3.3A 3.3A 3.3D 3.3A 3.3A 3.3D 0.1uF 0.1uF 0.1uF SINGLE MULT. 0603 0603 0603 MODE_DIR NEUTRAL 4.7k RESET TEST_A MODE_DIR MODE/DIR TEST_B 0603 Line shunt 3.3k AVDD MPU_PGD AGND AGND GNDB GNDB 0603 MODE/DIR 3.3D 0603 CH0+ A0/DIO0 A1/DIO1 4.7k...
  • Page 21: Board - Top Silk

    Schematic and Layouts BOARD – TOP SILK  2014 Microchip Technology Inc. DS50002240A-page 21...
  • Page 22: Board - Top Copper And Silk

    MCP39F501 Power Monitor Demonstration Board User’s Guide BOARD – TOP COPPER AND SILK  2014 Microchip Technology Inc. DS50002240A-page 22...
  • Page 23: Board - Top Copper

    Schematic and Layouts BOARD – TOP COPPER  2014 Microchip Technology Inc. DS50002240A-page 23...
  • Page 24: Board - Bottom Copper

    MCP39F501 Power Monitor Demonstration Board User’s Guide BOARD – BOTTOM COPPER  2014 Microchip Technology Inc. DS50002240A-page 24...
  • Page 25: Board - Bottom Copper And Silk

    Schematic and Layouts BOARD – BOTTOM COPPER AND SILK  2014 Microchip Technology Inc. DS50002240A-page 25...
  • Page 26: Board - Bottom Silk

    MCP39F501 Power Monitor Demonstration Board User’s Guide BOARD – BOTTOM SILK  2014 Microchip Technology Inc. DS50002240A-page 26...
  • Page 27: Appendix B. Bill Of Materials (Bom)

    LED 2 x 1.2 mm RD/GN wtr. clr. Kingbright Corp. APHBM2012SURKCGKC Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.  2014 Microchip Technology Inc. DS50002240A-page 27...
  • Page 28 LED 5 mm red 640 nm 20 mcd Kingbright Corp. WP7113LSRD 2 mA MOV1 Varistor 420 VRMS 10 mm Radial EPCOS AG S10K420 Printed Circuit Board – MCP39F501 — 104-00455 Power Monitor Demonstration Board Res. 4.7 k 1/10W 5% 0603 SMD Panasonic - ECG ERJ-3GEYJ472V R2, R4, R14, R20 Res.
  • Page 29 Microchip Technology Inc. MCP1754ST-3302E/MB IC USB TO UART SSOP-20 Microchip Technology Inc. MCP2200-I/SS MCP39F501 QFN-28 Microchip Technology Inc. MCP39F501-E/MQ IC Sensor Thermal 2.3V SOT-23-3 Microchip Technology Inc. MCP9700T-E/TT Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.
  • Page 30: Worldwide Sales And Service
