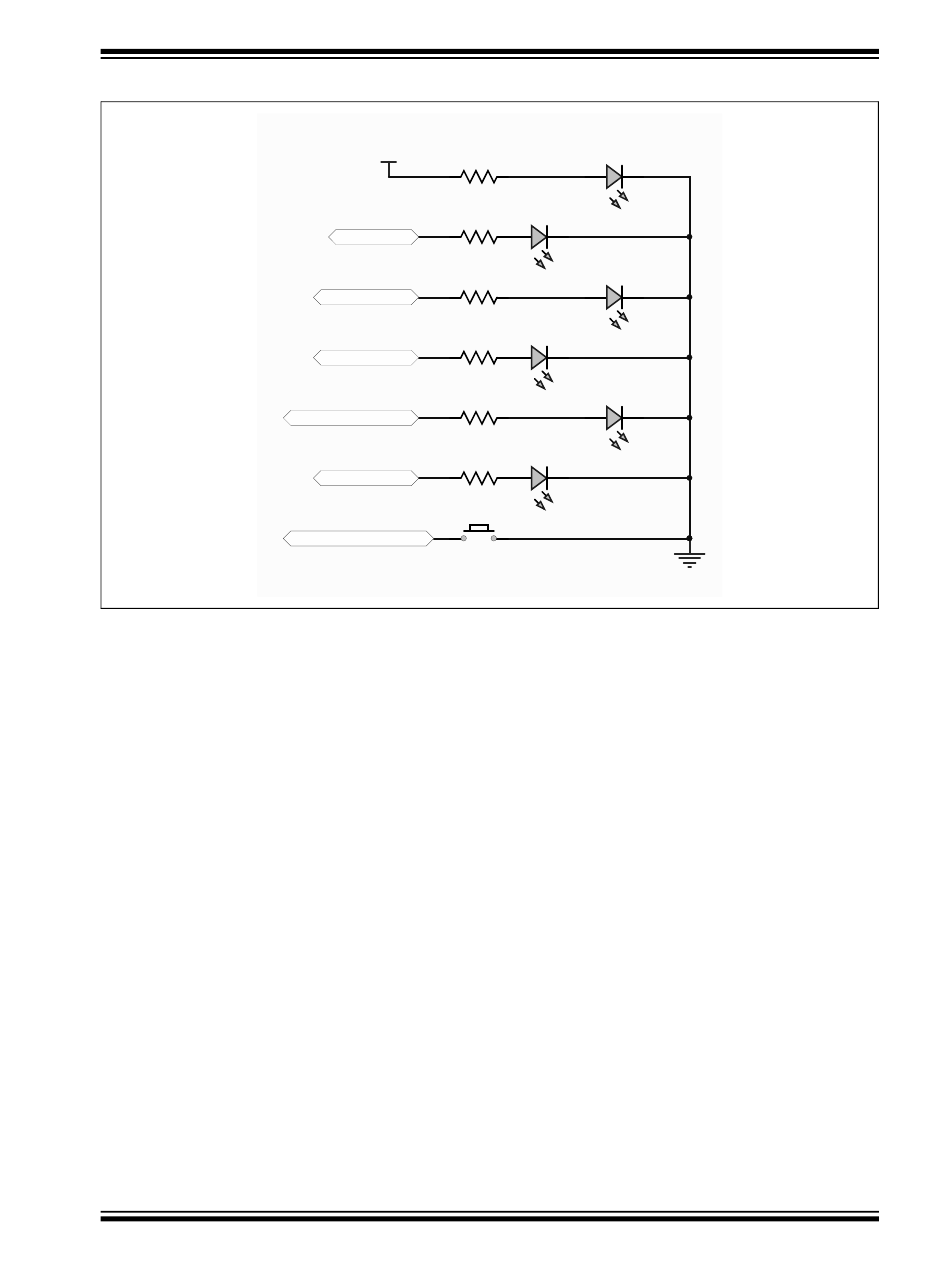

FIGURE A-18:
PUSH BUTTON AND USER CONTROLLED LEDS
© 2013-2014 Microchip Technology Inc.
Board Layout and Schematics
+3.3V
R6
470R
R7
RH0/LED1
470R
R8
RH2/LED2
470R
R9
RH1/LED3
470R
R10
RH6/LED4/AN42
470R
R11
RH11/LED5
470R
RA0/PUSH_BUTTON
S1
D2
D3
Green
Red
D4
D5
Red
Red
D6
D7
Red
Red
GND
DS70005148B-page 45
